Wavin Ventiza PVC T-piece oval 235x80 mm with diameter 160 mm M/M/M 19710018

Good points

Impact-resistant PVC

100% recyclable

Installation convenience

Airtightness class ATC1

Wavin Ventiza PVC T-piece oval 235x80 mm with diameter 160 mm M/M/M

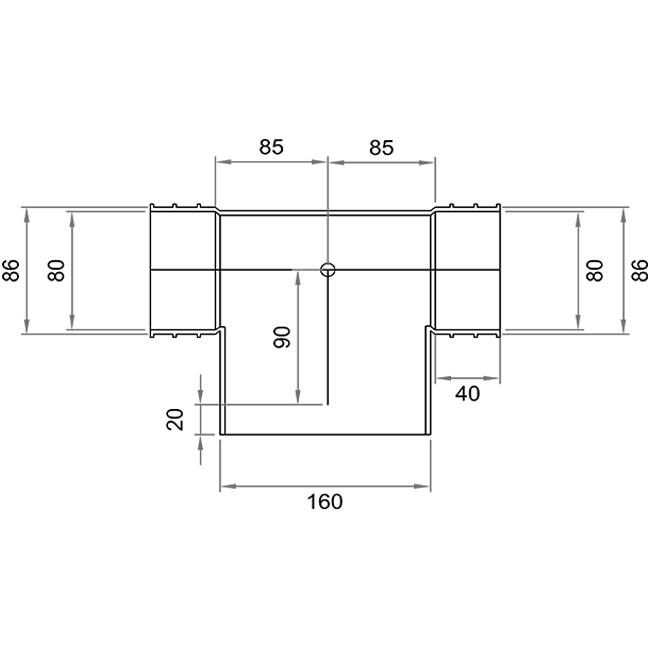

This PVC T-piece has dimensions of 235mm x 80mm (oval) and features a glued socket connection on all three sides that fits directly over a duct, eliminating the need for an additional connector to link it with the cast-in duct. The connection at the bottom has a diameter of 160mm.

The oval ducts and fittings have a built-in height of only 90 mm (duct height 80 mm). This makes the system suitable not only for cast-in applications but also for installation in suspended ceilings or other space constraints. The robust impact-resistant PVC makes them durable and capable of withstanding the loads during concrete pouring.

Cast-in ducts are ventilation ducts integrated into a floor or concrete to facilitate air distribution or extraction in buildings. These flexible products are designed to be invisible and are commonly used in new construction and renovation projects. Furthermore, a cast-in duct can be used in walls, floors, and/or ceilings. Combined with a straight cast-in duct and various fittings, a ventilation duct can be installed as desired. There are both round and rectangular cast-in ducts. Some advantages of cast-in ducts include: efficient airflow, space-saving, noise reduction, and design flexibility.

Ducts and fittings: air tightness and durability

The ducts and fittings meet the highest air tightness class, ATC1, as established in NEN-EN 17192:2019. This means that the system is three times more airtight than systems with ATC2, which corresponds to the LUKA air tightness class D. This high air tightness improves both energy efficiency and air quality.

Benefits of low wall roughness

Thanks to the low wall roughness of PVC, there is less dirt accumulation and friction losses are minimal. PVC has the lowest wall roughness of all ventilation ducts, contributing to optimal airflow. Flexible ducts, on the other hand, have the highest wall roughness, although they excel in flexibility.

Category code	245
Model	Other
Material duct	Plastic
Material quality duct	Polyvinyl chloride (PVC)
Wall thickness duct	3.5 mm
Production method	Seamless
Material insulation	Other
Outer surface protection	Untreated
Inner surface protection	Untreated
Perforated inner wall	No
Outside colour	Blue
Design form	T-piece
Nominal duct diameter, connection 1	235 mm
Connection 1	Glued sleeve
Nominal duct diameter, connection 2	160 mm
Connection 2	Glued sleeve
Nominal duct diameter, connection 3	235 mm
Connection 3	Glued sleeve
With push-on profile	No
With push-on clamp	No
With pre-mounted seal	No
Angle	90 °
Working length connection 1	125 mm
Working length connection 2	125 mm
Working length connection 3	48.5 mm
Insert length connection 1	40 mm
Insert length connection 2	40 mm
Insert length connection 3	40 mm
Air tightness class according to EN 1751	D
Embeddable in concrete	Yes
Heat resistance Rd	60 (m²⋅K)/W
Anti-bacterial treatment	No
Antistatic version	No
