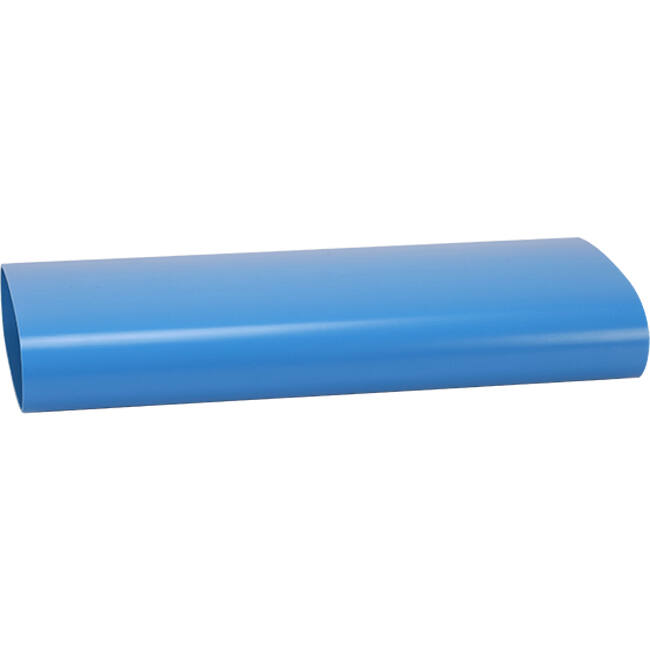

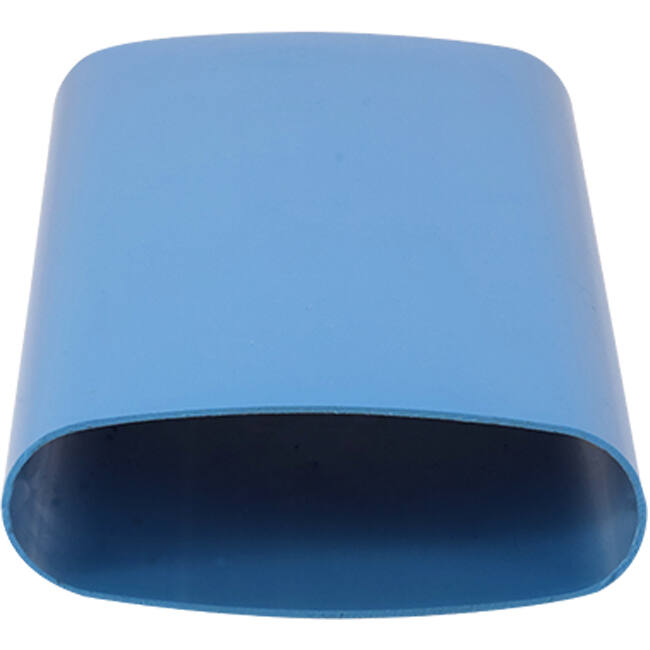

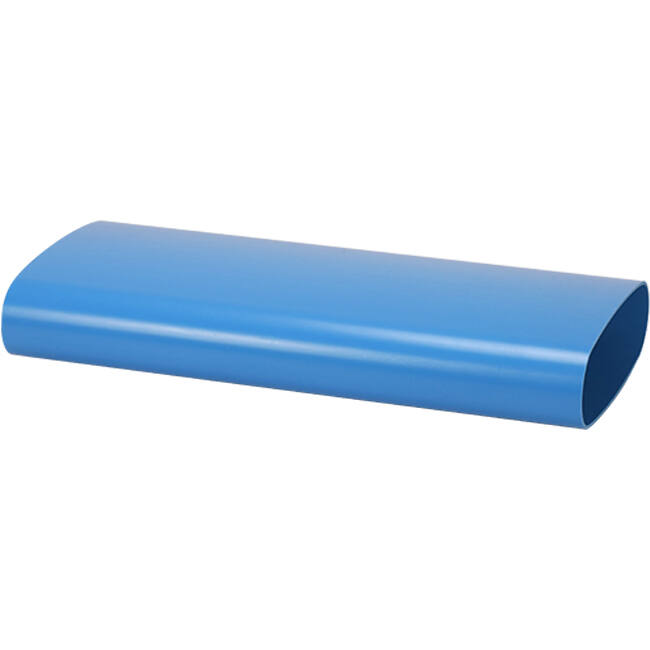

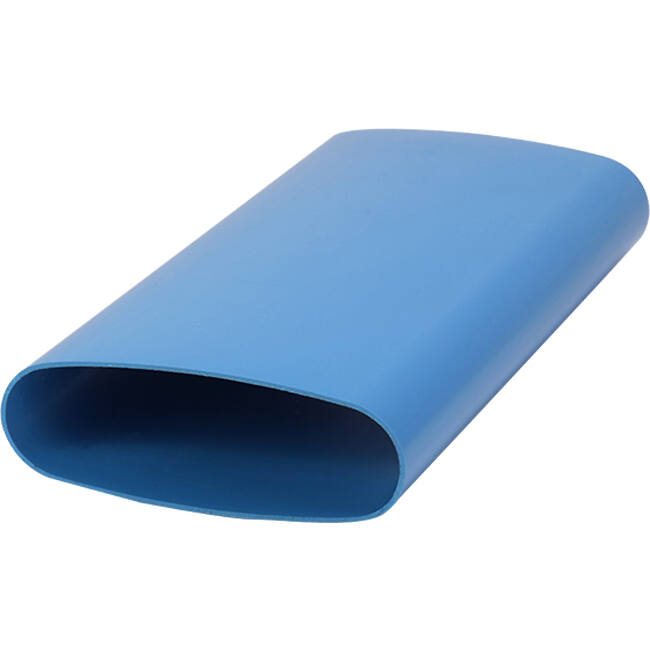

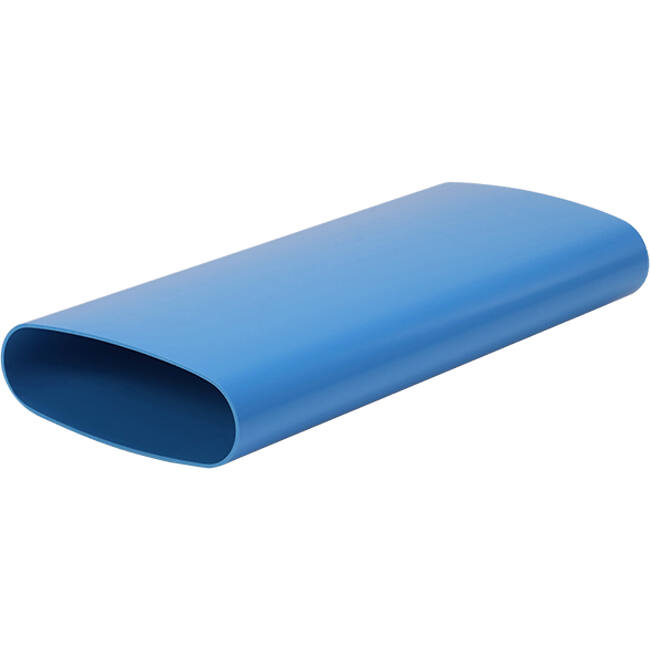

Wavin Ventiza channel 1.5 m PVC oval 235x80 mm S/S 19710078

Good points

Impact-resistant PVC

100% recyclable

Installation convenience

Airtightness class ATC1

Wavin Ventiza channel 1.5 m PVC oval 235x80 mm S/S

This PVC embedment channel with dimensions 235mm x 80mm (oval) and a length of 1.5 meters. It fits directly into a glue socket connection of a fitting, such as an elbow, T-piece, or end piece.

The oval channels and fittings have an installation height of only 90 mm (channel height 80 mm). This makes the system suitable not only for embedment applications but also for installation in suspended ceilings or other spatial constraints. The robust impact-resistant PVC makes them durable and capable of withstanding the stresses during concrete pouring.

Embedment channels are ventilation ducts integrated into a floor or concrete to enable air distribution or extraction in buildings. These flexible products are designed to be invisible and are widely used in new construction and renovation projects. Furthermore, an embedment channel can be used in walls, floors, and/or ceilings. Combined with a straight embedment channel and various fittings, a ventilation duct can be installed as desired. There are both round and rectangular embedment channels. Some advantages of embedment channels include: efficient airflow, space-saving, noise reduction, and design flexibility.

Advantages of low wall roughness

Thanks to the low wall roughness of PVC, there is less dirt accumulation, and friction losses are minimal. PVC has the lowest wall roughness of all ventilation ducts, contributing to optimal airflow. Flexible ducts, on the other hand, have the highest wall roughness, though they excel in flexibility.

Brand	Wavin
Category	PVC Inlet ducts oval 235x80
GTIN	8719544320018
Manufacturer's item number	19710078
Article number	19710078

Category code	246
Model	Other
Material duct	Plastic
Material quality duct	Polyvinyl chloride (PVC)
Wall thickness duct	2.8 mm
Production method	Seamless
Material insulation	Other
Perforated inner wall	No
Outside colour	Blue

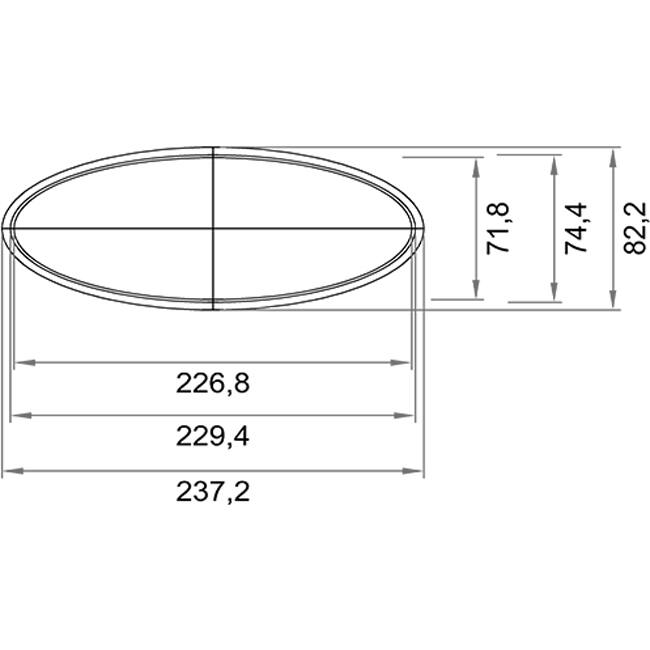

Nominal duct width	228.9 mm
Nominal duct height	79.4 mm
Connection 1	Duct end
Connection 2	Duct end
With push-on profile	No
With push-on clamp	No
Bending strength	Pliable
Length	1500 mm
Max. overpressure	300 Pa
Max. medium temperature (continuous)	40 °C
Embeddable in concrete	Yes
Heat resistance Rd	60 (m²⋅K)/W
Anti-bacterial treatment	No
Antistatic version	No
