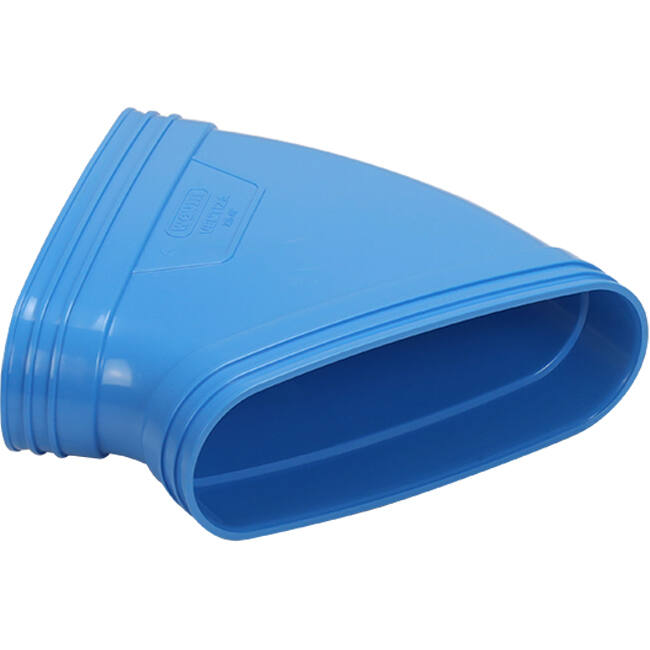

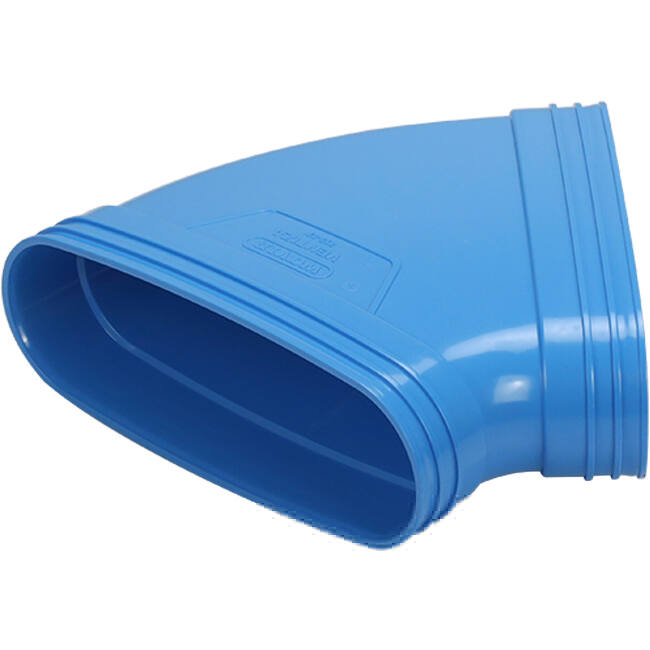

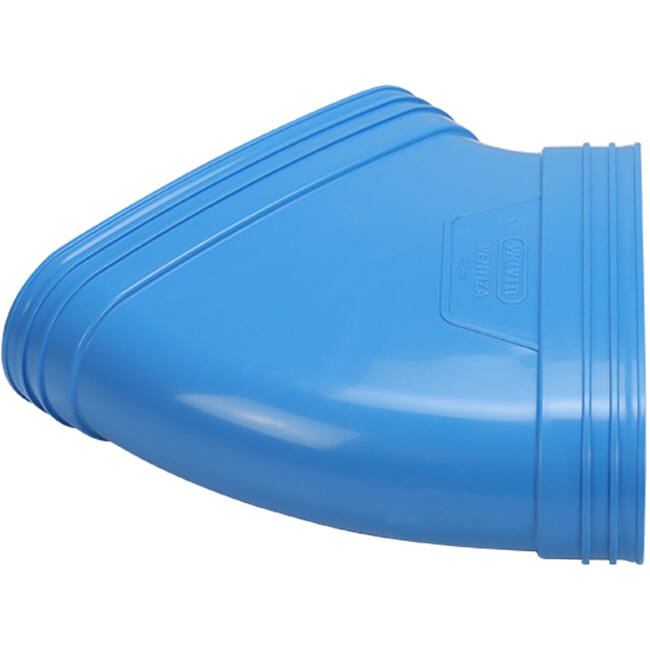

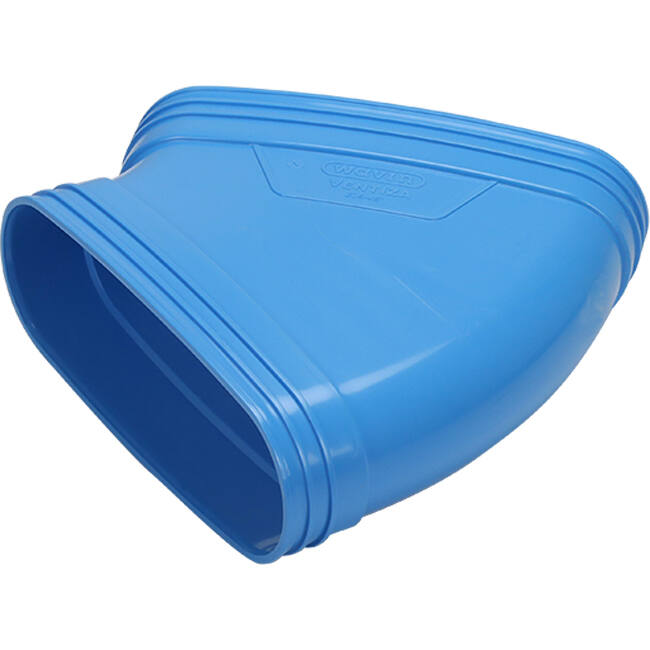

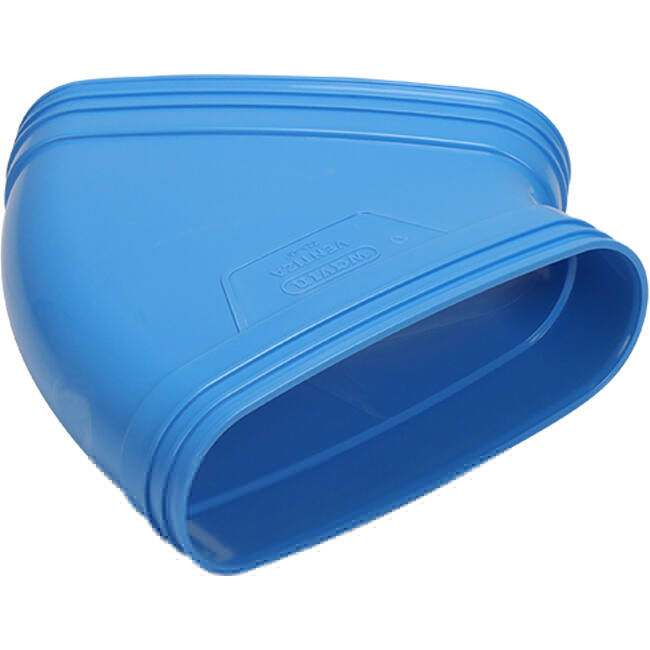

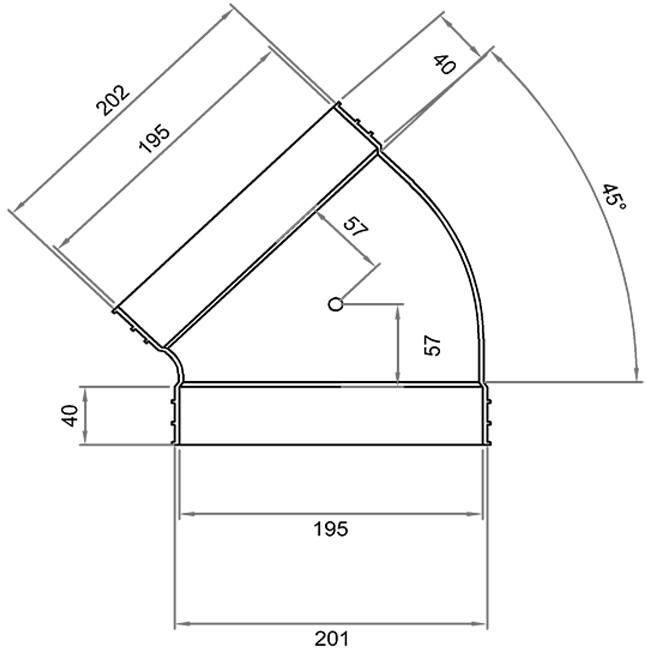

Wavin Ventiza Elbow 45 degrees PVC oval 195x80 mm horizontal M/M

This PVC elbow at a 45-degree angle with dimensions 195mm x 80mm (oval) is equipped with a glue socket on both sides. This allows the elbow to fit directly over a channel without requiring an additional connector for coupling with the oval embedment channel.

The oval channels and fittings have an installation height of only 90 mm (channel height 80 mm). This makes the system suitable not only for embedment applications but also for installation in suspended ceilings or other spatial constraints. The robust impact-resistant PVC makes them durable and capable of withstanding the stresses during concrete pouring.

Embedment channels are ventilation ducts integrated into a floor or concrete to enable air distribution or extraction in buildings. These flexible products are designed to be invisible and are widely used in new construction and renovation projects. Furthermore, an embedment channel can be used in walls, floors, and/or ceilings. Combined with a straight embedment channel and various fittings, a ventilation duct can be installed as desired. There are both round and rectangular embedment channels. Some advantages of embedment channels include: efficient airflow, space-saving, noise reduction, and design flexibility.

Channels and fittings: airtightness and durability

The channels and fittings meet the highest airtightness class, ATC1, as established in NEN-EN 17192:2019. This means the system is three times more airtight than systems with ATC2, equivalent to the LUKA airtightness class D. This high airtightness improves both energy efficiency and air quality.

Advantages of low wall roughness

Thanks to the low wall roughness of PVC, there is less dirt accumulation, and friction losses are minimal. PVC has the lowest wall roughness of all ventilation ducts, contributing to optimal airflow. Flexible ducts, on the other hand, have the highest wall roughness, though they excel in flexibility.

Strong and reliable connections

A unique feature of the system is the presence of extra ribs around the glue socket. These ribs enhance grip and provide a stronger connection, which is essential during concrete pouring.

Durable and easy to install

The channels are 100% recyclable, contributing to environmentally friendly construction solutions. The use of glue connections makes installation quick and easy, saving both time and costs.

Brand	Wavin
Category	PVC Inlet ducts oval 195x80
GTIN	8712148598487
Manufacturer's item number	3171219004
Article number	19710003

Specifications

Category code	245
Model	Other
Material duct	Plastic
Material quality duct	Polyvinyl chloride (PVC)
Wall thickness duct	2.8 mm
Production method	Seamless
Outer surface protection	Untreated
Inner surface protection	Untreated
Perforated inner wall	No
Outside colour	Blue
Nominal duct width	201 mm
Nominal duct height	80 mm
Connection 1	Glued sleeve
Connection 2	Glued sleeve
With push-on profile	No
With push-on clamp	No
With pre-mounted seal	No
Bend model	Smooth bend
Change of direction	Horizontal
Bend angle	45 °
Bend radius	140 mm
Working length connection 1	58 mm
Working length connection 2	58 mm
Insert length	58 mm
Air tightness class according to EN 1751	D
Embeddable in concrete	Yes
Heat resistance Rd	60 (m²⋅K)/W
Anti-bacterial treatment	No
