Wavin Ventiza PVC T-piece oval 195x80x100 mm - with diameter 125 mm M/M/M

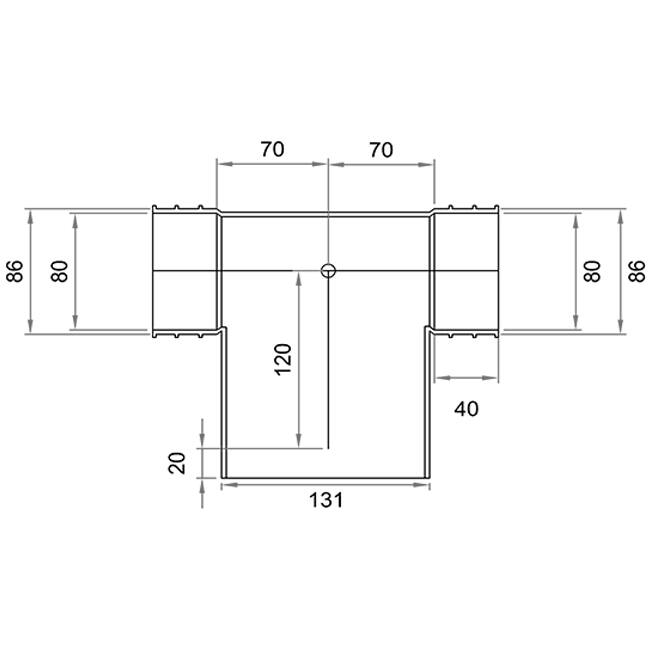

This PVC T-piece at 90 degrees with dimensions of 195mm x 80mm (oval) features a socket connection on all three sides that directly fits over a duct, eliminating the need for an additional connector to link with the recessed duct. The connection at the bottom has a diameter of 125mm with a working height of 100mm.

The oval ducts and fittings have a built-in height of only 90mm (duct height 80mm). This makes the system suitable not only for recessed applications but also for installation in lowered ceilings or other space constraints. The robust impact-resistant PVC makes them durable and capable of withstanding the loads during concrete pouring.

Recessed ducts are ventilation ducts integrated into a floor or concrete to enable air distribution or extraction in buildings. These flexible products are designed to be invisible and are commonly used in new construction and renovation projects. Furthermore, a recessed duct can be used in walls, floors, and/or ceilings. Combined with a straight recessed duct and various fittings, a ventilation duct can be installed as desired. There are both round and rectangular recessed ducts. Some advantages of recessed ducts include: efficient airflow, space-saving, noise reduction, and design flexibility.

Ducts and fittings: air tightness and durability

The ducts and fittings meet the highest air tightness class, ATC1, as established in NEN-EN 17192:2019. This means that the system is three times more airtight than systems with ATC2, which corresponds to the LUKA air tightness class D. This high air tightness improves both energy efficiency and air quality.

Benefits of low wall roughness

Thanks to the low wall roughness of PVC, there is less dirt deposition and friction losses are minimal. PVC has the lowest wall roughness of all ventilation ducts, contributing to optimal airflow. Flexible ducts, on the other hand, have the highest wall roughness, although they excel in flexibility.

Strong and reliable connections

A unique feature of the system is the presence of additional ribs around the socket. These ribs enhance grip and ensure a stronger connection, which is essential during concrete pouring.

Durable and easy to install

The ducts are 100% recyclable, contributing to environmentally friendly construction solutions. The use of adhesive connections makes installation quick and easy, saving both time and costs.

Brand	Wavin
Category	PVC Inlet ducts oval 195x80
GTIN	8712148598654
Manufacturer's item number	3172819121
Article number	19710016

Specifications

Category code	245
Model	Other
Material duct	Plastic
Material quality duct	Polyvinyl chloride (PVC)
Wall thickness duct	2.8 mm
Production method	Seamless
Outer surface protection	Untreated
Inner surface protection	Untreated
Perforated inner wall	No
Outside colour	Blue
Design form	T-piece
Nominal duct diameter, connection 1	195 mm
Connection 1	Glued sleeve
Nominal duct diameter, connection 2	125 mm
Connection 2	Glued sleeve
Nominal duct diameter, connection 3	195 mm
Connection 3	Glued sleeve
With push-on profile	No
With push-on clamp	No
With pre-mounted seal	No
Angle	90 °
Working length connection 1	70 mm
Working length connection 2	100 mm
Working length connection 3	70 mm
Insert length connection 1	40 mm
Insert length connection 2	40 mm
Insert length connection 3	40 mm
Air tightness class according to EN 1751	D
Embeddable in concrete	Yes
Heat resistance Rd	60 (m²⋅K)/W
Anti-bacterial treatment	No
Antistatic version	No
