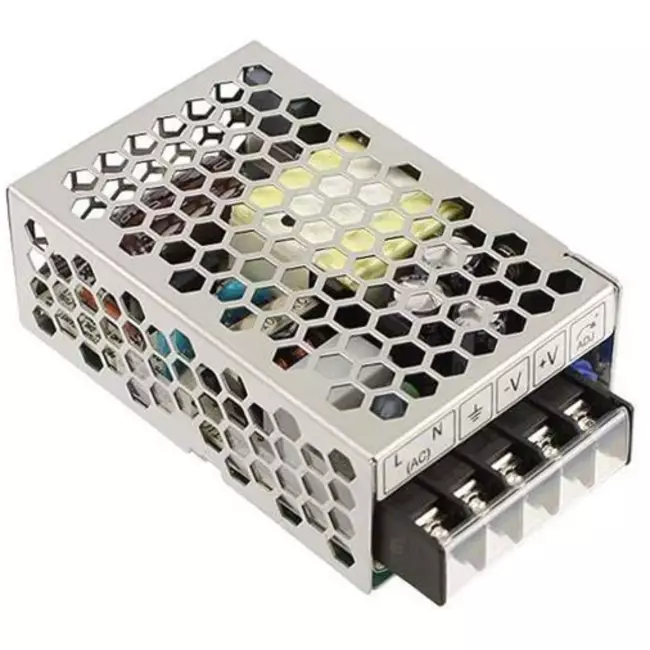

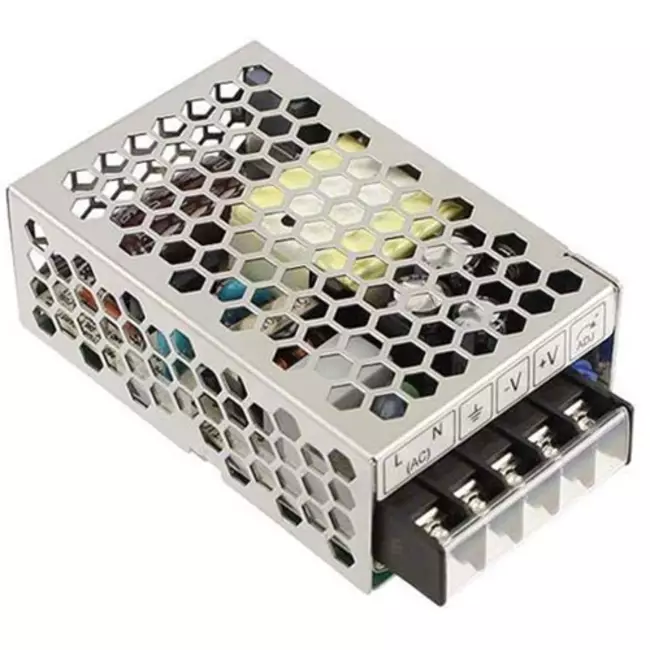

Power supply for room sensor

The Orcon 24V transformer for room sensor is specially designed for the Orcon CO2 sensors. The 24V transformer provides the correct direct current to the CO2 sensor.

Brand	Orcon
Category	Orcon MVHR Units Parts and Accessories
GTIN	8718403860764
Manufacturer's item number	17700120
Article number	19130122

Specifications

Category code	108
Voltage type (supply voltage)	AC/DC
1st secondary output voltage AC (min)	22 V
1st secondary output voltage AC (max)	27.2 V
1st secondary output voltage DC (min)	22 V
1st secondary output voltage DC (max)	27.2 V
Max. output current 1	1.1 A
Secondary voltage adjustable	Yes
Short-circuit-proof	Yes
Rated supply voltage AC 50 Hz (min)	88 V
Rated supply voltage AC 50 Hz (max)	264 V
Rated supply voltage DC (min)	125 V
Rated supply voltage DC (max)	373 V
Output voltage stabilized	Yes
Power output	26.4 W
Stabilized	Yes
Type of electric connection	Screw connection
Suitable for rail mounting	No
Suitable for wall mounting	No
Suitable for distribution board	No
Built-in height	28 mm
Direct mounting possible	No
Width	51 mm
Height	28 mm
Depth	79 mm
Suitable for safety functions	No
SIL according to IEC 61508	None
Performance level according to EN ISO 13849-1	None
