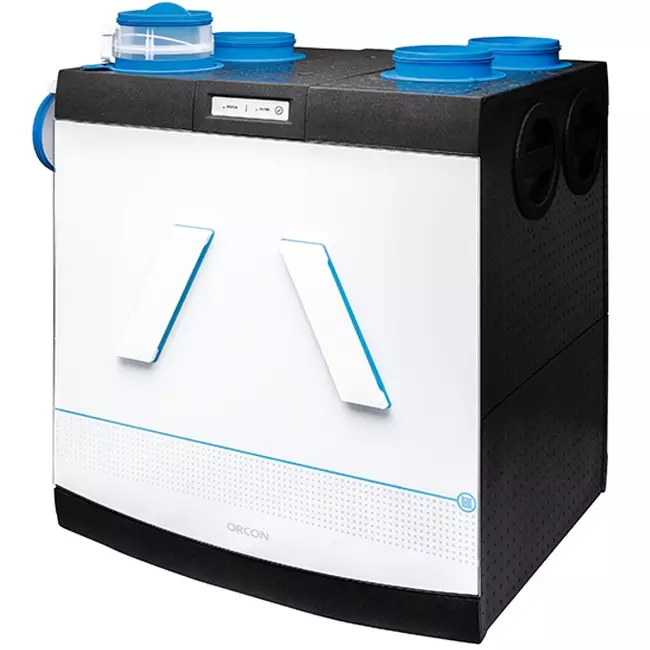

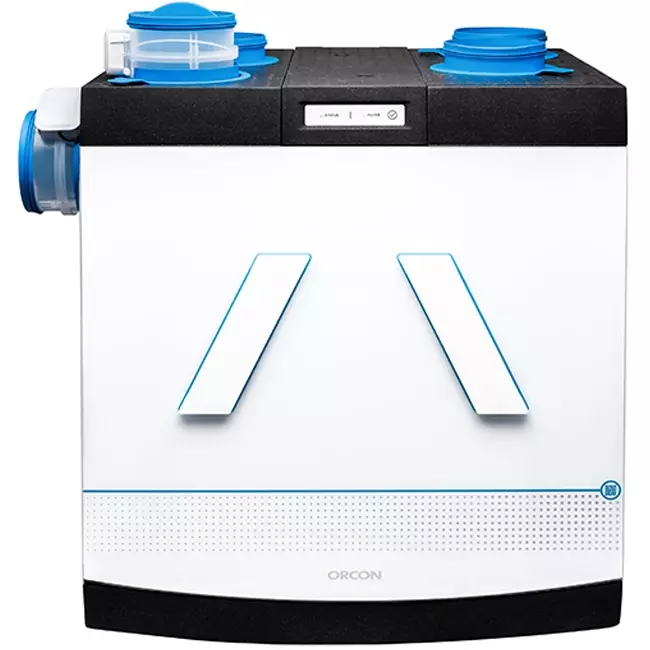

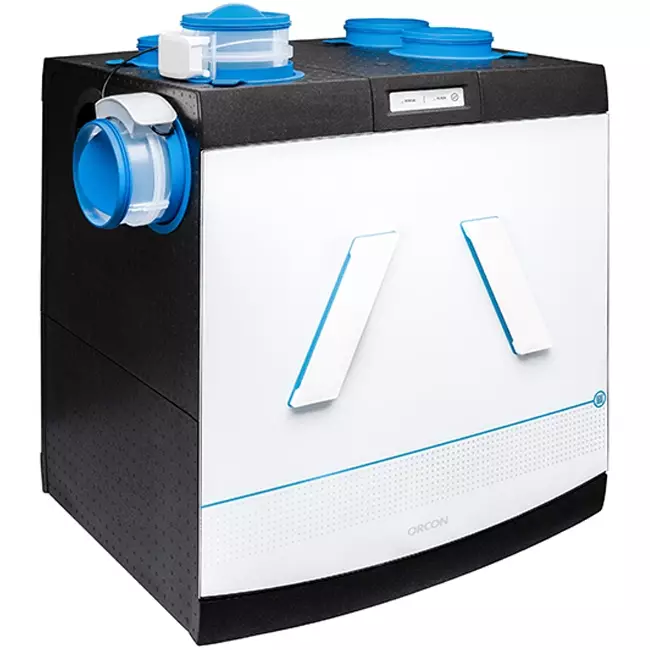

The new HRC SmartComfort ensures demand-controlled ventilation in two zones based on a CO2 air quality measurement. In the living room and master bedroom, CO2 sensors are placed which communicate wirelessly with the zone valves. As a result, exactly the requested air flow is provided at any time of day. The system is whisper quiet and has a maximum flow rate of 570 m³/h at 200 Pa. The heat is recovered with an efficiency of more than 99% and a built-in pre-heater comes as standard.
The wireless communication between the sensors, the device, and the valves is a great advantage. As a result, they can also be installed further down the ductwork and without any wires needed to be pulled or connected. In addition, the valves are equipped with fully transparent housings so that the valve position can be easily seen, thus simplifying installation and maintenance. This makes the system very flexible, installation-friendly and easy to use.
Just like the HRC EcoMax and MaxComfort, this latest system has the highest thermal efficiency in the market, highest A+ energy label, built-in humidity sensor, low noise level and modulating 100% bypass. Next to that, up to 20 different sensors can be applied, including the CO2 control sensor and CO2 room sensor.
| Brand | Orcon |
| Category | Orcon HRC-570 |
| GTIN | 8718403863413 |
| Manufacturer's item number | 22001105 |
| Article number | 19220072 |
| Category code | 18 |
| Heat recovery by | Cross-counter-flow unit |
| Housing material | Plastic |
| Housing material quality | Expanded polypropylene (EPP) |
| Material heat exchanger | Plastic |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | No |
| Suitable for floor mounting | Yes |
| Suitable for mounting in suspended ceiling | No |
| Suitable for mounting in an attic | Yes |
| Left/right orientation reversible | Yes |
| Max. air volume at 50 Pa | 400 m³/h |
| Max. air volume at 100 Pa | 400 m³/h |
| Max. air volume at 150 Pa | 400 m³/h |
| Max. air volume at 200 Pa | 400 m³/h |
| Max. air volume at 250 Pa | 400 m³/h |
| Max. air volume at 300 Pa | 400 m³/h |
| Power consumption at max. air volume at 100 Pa | 108 W |
| Thermal efficiency at 70% air volume at 50 Pa | 93 % |
| Type of motor | Electronically commutated (EC) |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Number of phases | 1 |
| Fuse size of the device | 6 A |
| With thermal overload protection | Yes |
| Electrical connection | Connecting cable with plug with protective contact |
| Energy efficiency class according to 1253/2014/EU | A+ |
| Type of switch | Other |
| With digital display | No |
| With wired control unit | No |
| Suitable for wired control unit | No |
| With wireless remote control | No |
| Suitable for wireless remote control | Yes |
| Supporting protocol for Modbus | Yes |
| Operation by app | No |
| With zone controller | Yes |
| Suitable for zone controller | Yes |
| With heating element | Yes |
| With volatile organic compound (VOC) sensor | No |
| Suitable for extra VOC sensor | No |
| With external humidity (RH) sensor | No |
| With internal humidity (RH) sensor | Yes |
| Suitable for (extra) humidity (RH) sensor | Yes |
| With internal carbon dioxide (CO2) sensor | No |
| Suitable for (extra) carbon dioxide (CO2) sensor | Yes |
| Suitable for central heating boiler connection | No |
| With bypass | Yes |
| With constant pressure control | No |
| With constant volume flow control | Yes |
| Type of frost protection | Other |
| Nominal duct diameter (min) | 180 mm |
| Nominal duct diameter (max) | 180 mm |
| Connections outdoor air side | Insert end |
| Connections residential side | Insert end |
| Residential connection, underside | No |

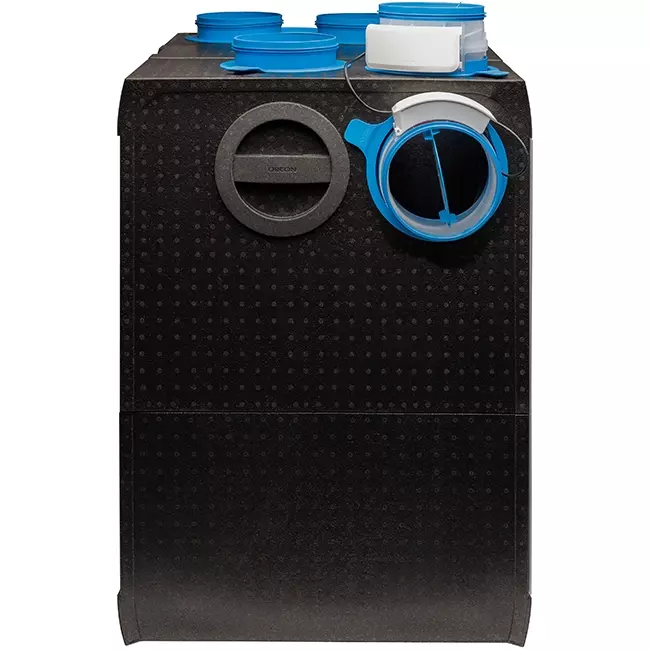

| Residential connection, left side | Yes |
| Residential connection, right side | Yes |
| Residential connection, top | Yes |
| Roof connection, side | Yes |
| Roof connection, top | Yes |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 70 % |
| Exhaust filter according to ISO 16890-1:2016 | ISO Coarse |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 65 % |
| Height | 888 mm |
| Width | 760 mm |
| Depth | 600 mm |
| Degree of protection (IP) | IP31 |
| Weight | 34.9 kg |
| Energy label | A+ |
| Connection type | connection left right |
| With enthalpy exchanger | No |
| Plug type | Euro plug |
