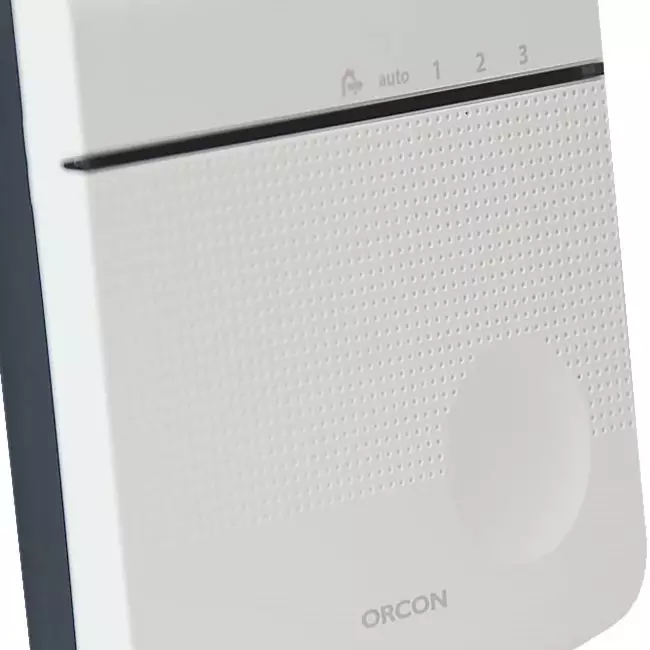

Operation with two functions. The addition of CO2 sensors provides you with extra comfort and even more energy savings. Thanks to this demand-controlled application, the MVS normally runs on the low setting and will increase ventilation automatically only when the CO2 value in the room rises. Until the required air quality is achieved, whisper-quiet ventilation takes place efficiently. If you still want to operate the ventilation unit manually — perhaps at setting 1, 2 or 3 — that is also possible with this system. To connect the sensor, a 230 Volt connection is required.
| Brand | Orcon |
| Category | Orcon MVHR Units Parts and Accessories |
| GTIN | 8718403862645 |
| Manufacturer's item number | 21800045 |
| Article number | 19130113 |
| Category code | 108 |
| Scope of application | Room |
| With mounting material | Yes |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | No |
| Suitable for duct mounting | No |
| Suitable for tube mounting | No |
| Suitable for air | Yes |
| Suitable for liquids | No |
| Suitable for gases | No |
| With housing | Yes |
| Cover attachment | Snapped on |
| Sensor element inside housing | Yes |
| Sensor element outside housing | No |
| Fixed cable to sensor | No |
| Technology | NDIR |
| Number of measuring points | 1 |
| Measurement of CO2 | Yes |
| Measurement of VOC | No |
| Measurement of relative air humidity | No |
| Measurement of absolute air humidity | No |
| Enthalpy measurement | No |
| Measurement of dewpoint | No |
| Particulate matter measurement (PM) | No |
| CO2 measuring range (min) | 400 ppm |
| CO2 measuring range (max) | 2000 ppm |
| Number of measuring ranges | 1 |
| Offset setting possible | No |
| Trend representation | No |
| Error registration possible | Yes |
| Sensor type | Other |
| Tolerance | 3 % |
| Potentiometer with adjustment knob | No |
| Supporting protocol for BACnet | No |
| Supporting protocol for MP (multi point) | No |
| Supporting protocol for KNX | No |
| LoRa technology | No |
| NFC (Near Field Communication) | No |
| Bluetooth | No |
| Wi-Fi-compatible | No |
| Standby push button | Yes |
| Wireless | Yes |
| With display | No |
| Type of power supply | Power cord |
| Type of electric connection | Push-in clamp connection |
| Rated supply voltage AC (min) | 220 V |
| Rated supply voltage AC (max) | 230 V |
| With reverse polarity protection | No |
| Number of output signals | 1 |
| Number of output ranges 0 V ... 10 V | 1 |
| Max. ambient humidity (non-condensing) | 90 % |
| Explosion-proof | No |
| Degree of protection (IP) | IP21 |
| Housing height | 55 mm |
| Housing width | 55 mm |
| Housing depth | 40 mm |
| Housing colour | White |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
