Good points

Thermal efficiency of 93.4%
Built-in moisture sensor
100% modulating bypass
IP31 protection rating

Orcon HRC-300 EcoMax DN160 - 300 m³/h

The Orcon HRC-300 EcoMax DN160 is a mechanical ventilation system with heat recovery designed for houses and apartments, delivering a maximum airflow of 300 m³/h. The unit continuously supplies fresh, filtered outdoor air to living rooms and bedrooms while simultaneously extracting stale air from the kitchen, bathroom, and toilet. Thanks to the built-in heat exchanger, the device recovers up to 93.4% of the heat from the extracted air and uses it to preheat the incoming outdoor air, contributing to the unit’s energy-efficient operation.

Benefits and Features

Energy label A+: The unit meets the highest European energy efficiency class for residential ventilation systems, in accordance with the ErP directive.
Thermal efficiency of 93.4%: Nearly all heat in the extracted air is utilised to preheat the incoming outdoor air.
100% modulating bypass: In summer, the unit directs outdoor air past the heat exchanger, allowing you to cool the home overnight with cooler outdoor air.
Built-in humidity sensor: The sensor detects a rapid increase in humidity in the return air and automatically switches the device to a higher ventilation level, for example immediately after showering or cooking.
Wireless RF communication: Extensions such as remote controls and CO2 sensors can be connected wirelessly to the unit without additional wiring throughout the building.
Frost protection via imbalance: At low outdoor temperatures, the device temporarily creates an imbalance between supply and exhaust fans to prevent ice formation in the heat exchanger.
Insulating EPP casing: The expanded polypropylene housing reduces both heat loss and sound transmission into the room.

Expansion Accessories

The Orcon HRC-300 EcoMax can be customised to specific needs, preferences, and situations through various accessories. The unit can be extended with the following components:

Orcon RFT remote control 15RF: This wireless remote allows manual adjustment of the ventilation setting to low, medium, or high directly from the room.
Orcon humidity control sensor 15RF – flush-mounted: Combines a control panel with a built-in humidity sensor. When humidity rises, the device automatically switches to a higher ventilation level. Suitable for installation in bathrooms or kitchens.
Orcon CO2 control sensor 15RF: Continuously measures CO2 levels in the room. When concentrations increase, the sensor signals the unit to boost ventilation automatically, maintaining good indoor air quality.
Orcon motion sensor 15RF – flush-mounted: Detects presence in a room and automatically increases ventilation when someone is present. When the room is vacated, the device returns to the default setting.

Installation, Maintenance and Applications

The HRC-300 EcoMax DN160 can be mounted on the supplied wall bracket or placed on an optional base frame. Air ducts to the building can be connected on either the left or right side of the unit, enabling installation in virtually any service space. The four duct connections, each with a diameter of 160 mm, are standard on top of the unit and can easily be repositioned to the side, depending on the preferred duct layout. Electrical connection is made via a standard plug for 230 V / 50 Hz with a 2 m cable length. The unit has an IP31 protection rating.

Brand	Orcon
Category	Orcon HRC-300
GTIN	8720701078895
Manufacturer's item number	22000082
Article number	19220035

Specifications

Category code	16
Housing material	Plastic
Housing material quality	Expanded polypropylene (EPP)
Material heat exchanger	Plastic
Suitable for wall mounting	Yes
Suitable for ceiling mounting	No
Suitable for floor mounting	Yes
Suitable for mounting in suspended ceiling	No
Orientation	Left/right (reversible)
Max. air volume at 50 Pa	280 m³/h
Max. air volume at 100 Pa	300 m³/h
Max. air volume at 150 Pa	300 m³/h
Max. air volume at 200 Pa	300 m³/h
Max. volume flow according to 1254/2014/EU	300 m³/h
Sound power level according to 1254/2014/EU	41 dB(A)
Power consumption at max. air volume at 100 Pa	65 W
Thermal efficiency at 70% air volume at 50 Pa	93.4 %
Type of motor	Electronically commutated (EC)
Voltage	230 V
Frequency	50 Hz
Number of phases	1
Fuse size of the device	0.65 A
With thermal overload protection	No
Electrical connection	Connecting cable with plug with protective contact
Energy efficiency class according to 1253/2014/EU	A+
With digital display	Yes
With wired control unit	No
Suitable for wired control unit	Yes
With wireless remote control	No
Suitable for wireless remote control	Yes
Supporting protocol for Modbus	No
Operation by app	No
With zone controller	No
Suitable for zone controller	Yes
With heating element	No
With volatile organic compound (VOC) sensor	No
Suitable for extra VOC sensor	No
With external humidity (RH) sensor	No
With internal humidity (RH) sensor	Yes
Suitable for (extra) humidity (RH) sensor	Yes
With internal carbon dioxide (CO2) sensor	No
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
Suitable for central heating boiler connection	No
With bypass	Yes
With constant pressure control	No
With constant volume flow control	Yes
Type of frost protection	Other
Nominal duct diameter (min)	160 mm
Nominal duct diameter (max)	160 mm
Number of outdoor air connections (ODA) according to EN 13141-7	1
Number of supply air connections (SUP) according to EN 13141-7	1
Number of extract air connections (ETA) according to EN 13141-7	1
Number of exhaust air connections (EHA) according to EN 13141-7	1
Connections outdoor air (ODA)	Duct end
Connections supply air (SUP)	Duct end
Connections extract air (ETA)	Duct end
Connections exhaust air (EHA)	Duct end
Supply filter according to ISO 16890-1:2016	ISO Coarse
Efficiency supply filter according to ISO 16890-1:2016	65 %
Exhaust filter according to ISO 16890-1:2016	ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016	65 %

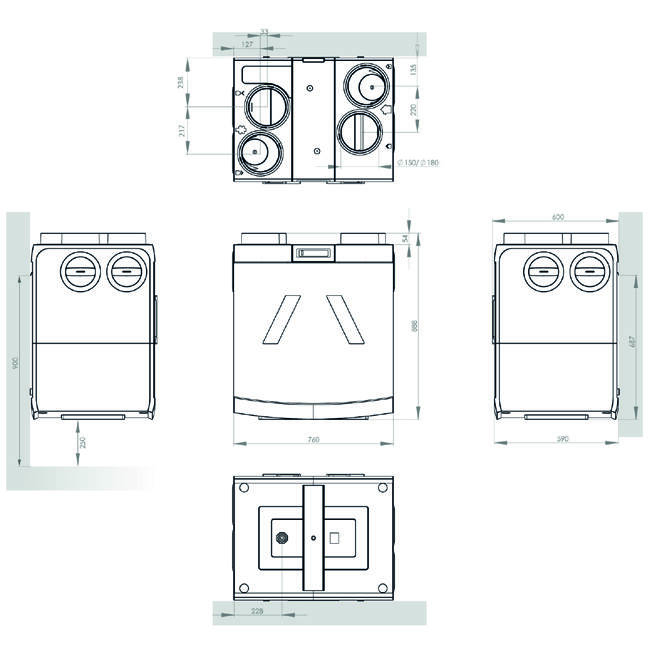

Height	888 mm
Width	760 mm
Depth	600 mm
Degree of protection (IP)	IP31
Weight	34 kg
Energy label	A+
Heat recovery by	Cross-counter-flow unit
