Good points
- Brand: Ruck fans
- EC motor energy efficient
- Up to 220 m3/h
- Speed controllable
| Brand | Ruck ventilatoren GmbH |
| Category | Ruck ETAMASTER Inline extractor fans |
| GTIN | 4061199029728 |
| Manufacturer's item number | 145792 |
| Article number | 65145792 |
Specifications

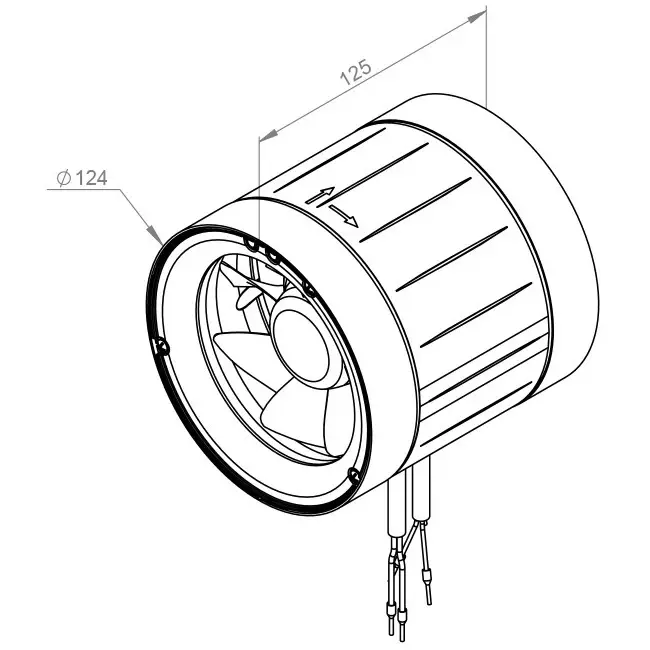

| Connection diameter | 125 mm |
| Number of phases | 1~ |
| Control | On/Off, PWM |
| Type of motor control | PWM |
| Category code | 35 |
| Weight | 0.7 kg |
| IP Complete Unit | IPX2 |
| IP Motor | IP00 |
| Insulation Class Motor | F |
| Max. Operating Current | 0.2 A |
| Max. pressure | 180 Pa |
| Max. Air Volume | 220 m³/h |
| Max. Current Consumption | 0.2 A |
| Max. power consumption | 12 W |
| Max. Static Efficiency | 28 % |
| Max. allowed Medium Temperature | 40 °C |
| Max. allowed Medium Temperature at Rated Current | 40 °C |
| Max. allowed Ambient Temperature | 40 °C |
| Max. allowed Ambient Temperature at Rated Current | 40 °C |
| Max. number of revolutions | 3760 1/min |
| Max. Total Efficiency | 29.9 % |
| With timer | No |
| Motor Protection | TEC |
| Motor type | EC |
| Nominal frequency | 50 Hz |
| Rated Speed | 3720 1/min |
| Nominal power consumption | 13 W |
| Nominal voltage | 230 V |
| Nominal current | 0.2 A |
