Good points

Air tightness class 2
Sendzimir galvanised
Easy to assemble

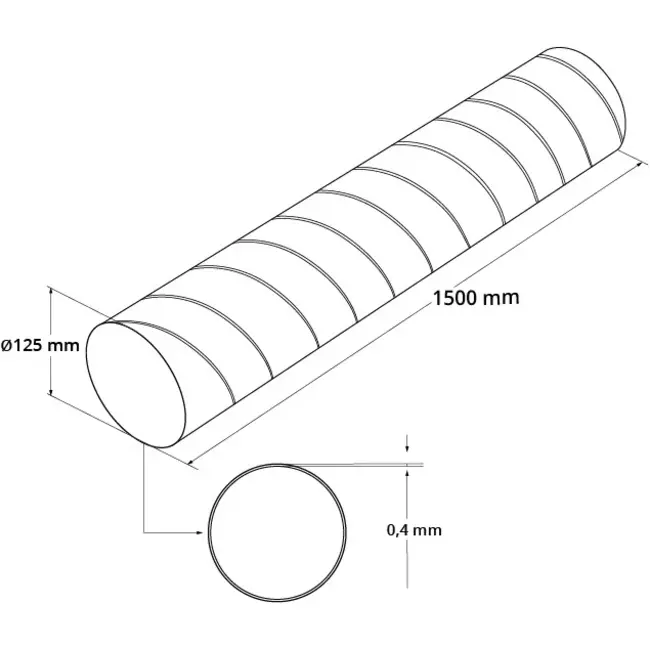

Spiral pipe diameter 125 mm, length 1.5 metres.

This round galvanised thermally zinc-plated spiral pipe ø 125 has a length of 1500 mm and is of airtightness class D quality.

These ducts are suitable for air handling systems and can be hung from the ceiling or on the wall. All fittings for our spiral (Spiro) ductwork are equipped with an integrated rubber SAFE sealing ring, providing a secure and airtight connection to guarantee system air-tightness.

Brand	Econox
Category	Spiral ducts L=1500 mm
GTIN	8719544102225
Manufacturer's item number	75010125
Article number	75010125

Specifications

Category code	20
Connection 1	Duct end
Connection 2	Duct end
Length	1500 mm
Nominal duct diameter	125 mm
Working length	1500 mm
Model	Uninsulated duct
Diameter	125 mm
Outer surface protection	Sendzimir galvanised
Embeddable in concrete	No
Inner surface protection	Sendzimir galvanised
Material duct	Steel
Material quality duct	Other
Wall thickness duct	0.4 mm
Production method	Spiral-rebated
Outside colour	Zinc
Bending strength	Rigid
Type of insulation	Uninsulated

Documents

Environmental Product Declaration

Specification Sheet NL
