Good points

Brand: Econox
Diameter 125 mm
Galvanized steel
With rubber

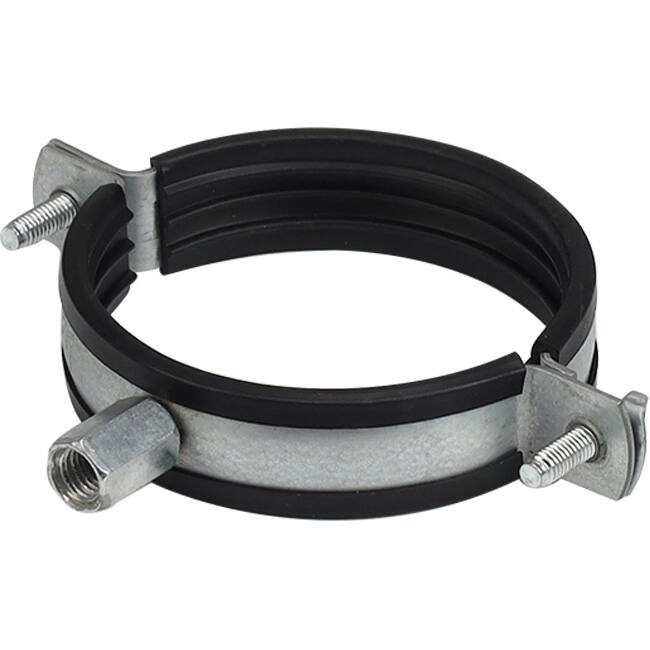

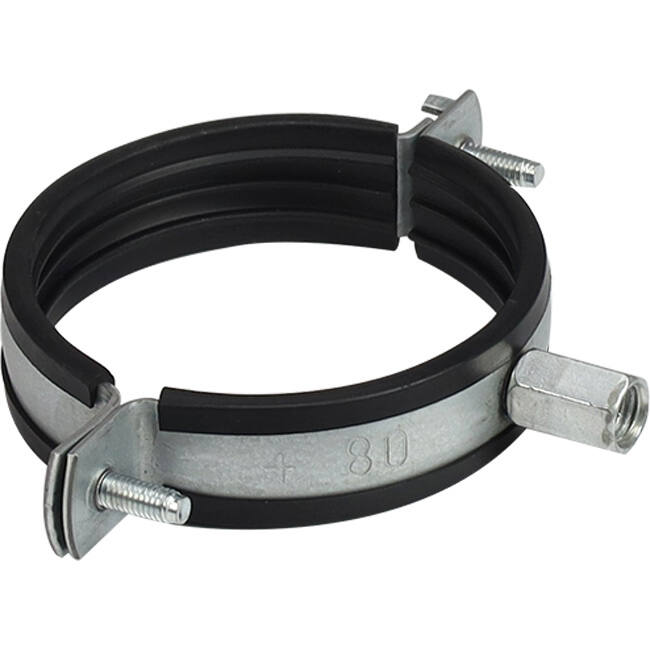

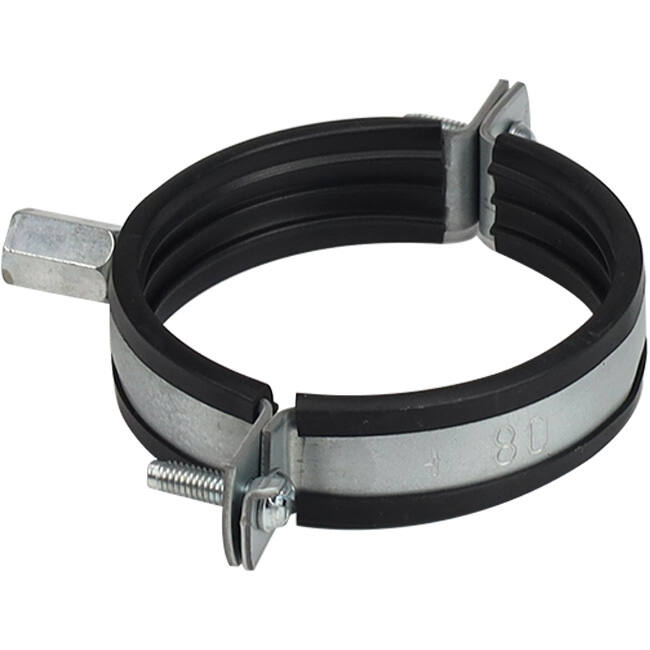

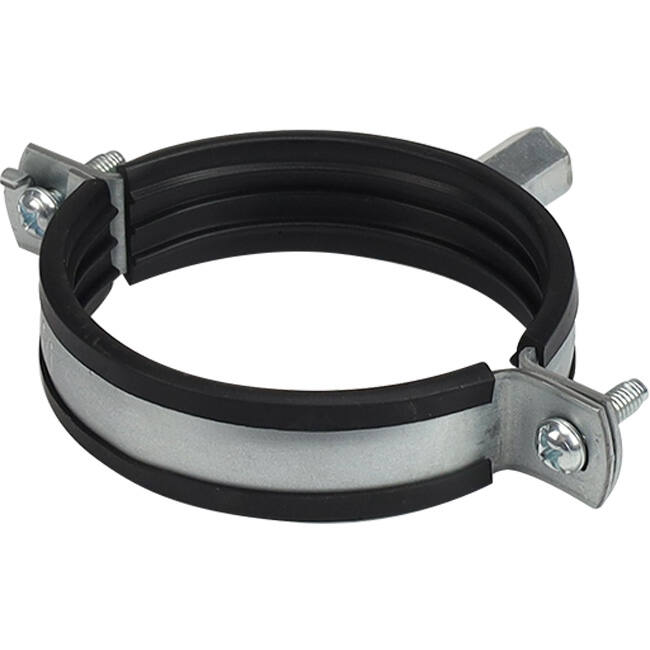

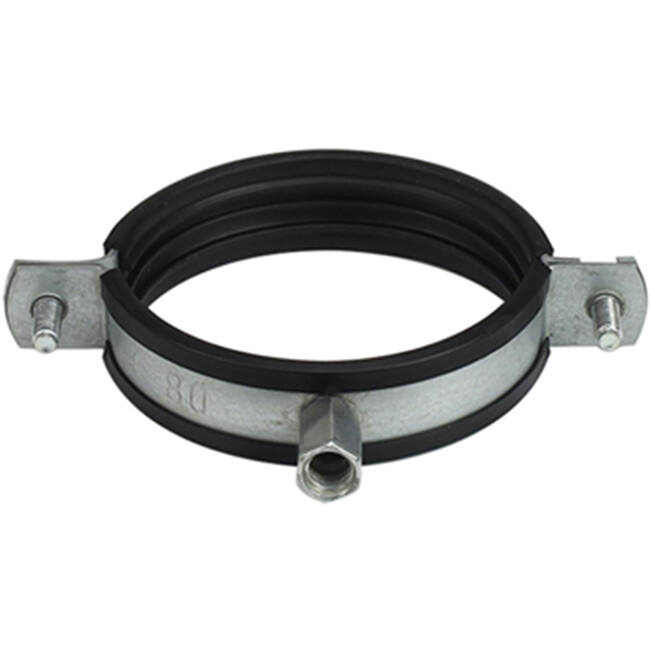

Metal bracket diameter 125 mm with rubber (sendz. galvanised)

The Metal bracket diameter 125 mm with rubber (sendz. galvanised) is designed for suspending round spiro ducts and other circular ventilation channels with a diameter of 125 mm. The bracket is made from sendzimir galvanised steel and equipped with a rubber insert that absorbs vibrations and securely holds the duct in place.

Advantages and features

Sendzimir galvanised steel: corrosion-resistant and durable for use in technical rooms and ventilation systems.
Rubber insert: dampens vibrations and ensures a tight, silent connection to the duct.
Quick connection with M8/M10 fixing point: fast and easy to mount to ceilings or support structures.
Double screw fixation: securely locks the bracket in place and prevents shifting.

Installation and applications

The bracket is suitable for aluminium, plastic, and spiral ducts with a diameter of 125 mm. Installation is via the integrated quick connection and a standard M8 or M10 fixing point. Due to its compact dimensions, the bracket also fits in tight technical spaces.

Brand	Econox
Category	Rubber Mounts for Spiral Ducts
GTIN	8719544286109
Manufacturer's item number	PCWR125
Article number	75180125

Specifications

Category code	242
Material	Steel
Material quality	Other
Surface protection	Sendzimir galvanised
Nominal diameter	DN 125
Outer pipe diameter (min)	125 mm
Outer pipe diameter (max)	125 mm
Inlay	Rubber
Connection facility	Internal thread
Connection size, connection facility	M8/M10
Lock facility	Double screw
Suitable for number of pipes	1

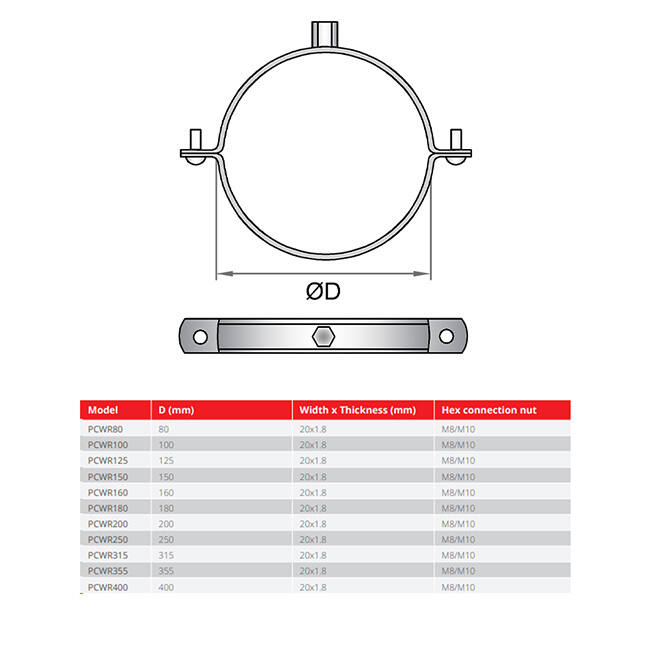

Width	183 mm
Height	136 mm
Depth	20 mm
Suitable for steel tube	No
Suitable for stainless steel tube	No
Suitable for copper tube	No
Suitable for aluminium tube	Yes
Suitable for cast iron pipe	No
Suitable for plastic tube	Yes
Suitable for pipe coil	Yes
Diameter	125 mm
Type of insulation	With rubber inlay
