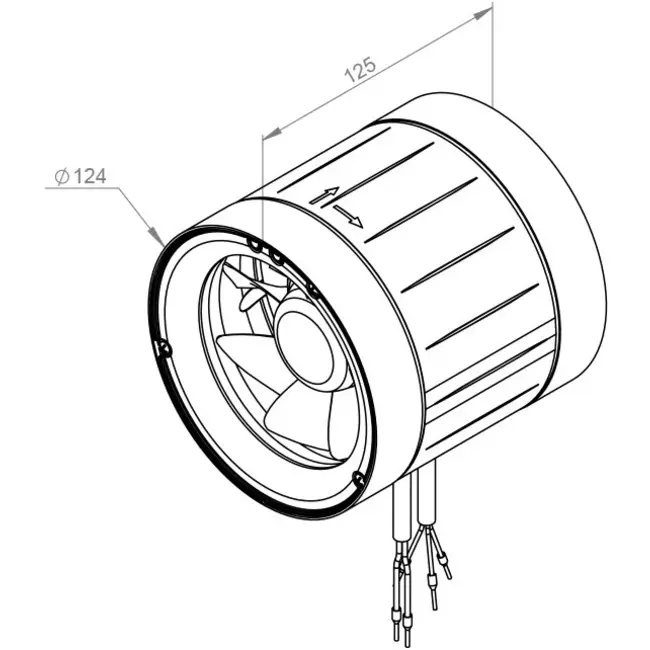

Inline tube fan 125mm mixed-flow ETAMASTER - EM 125 EC 01

Brand: Ruck ventilatoren GmbH

-35%

Complete your order

Ruck® fast clamp - 2 pieces diameter 125mm - VM 125

12.49

Ruck® 3-step switch MTS - MTS 10

58.13

RRP 179.70

116.81 -35%

You'll save 62.89

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

Brand: Ruck fans
EC motor energy efficient
Up to 220 m3/h
Speed controllable

Ruck Etamaster inline tube fan with EC motor

The Ruck ETAMASTER inline tube fan (EM EC series) has an energy-efficient EC motor, this EC motor can be operated with a three-step control. The Etamaster inline tube fan from Ruck can be mounted directly on a tube, but we recommend the corresponding Ruck fast clamp to reduce vibrations and noise through the duct.

The Etamaster has a built-in thermal switch to prevent burn out. In addition, the inline tube fan is equipped with a Mixed-Flow impeller with stator, as a result of which the fan will still produce a low sound level at a high flow rate. The EM EC series is available with capacities ranging from 410 m3/h to a maximum of 5700 m3/h and with diameters ranging from 100 mm to a maximum of 400 mm respectively.

Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of energy-efficient Etamaster inline tube fans with an EC motor. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.

Internal electronic temperature control
Plastic housing
Integrated electronics
EC motor
3-step speed control
Mixed-Flow impeller with stator

Brand	Ruck ventilatoren GmbH
Category	Ruck ETAMASTER Inline extractor fans
GTIN	4061199029629
Manufacturer's item number	145668
Article number	65145668

Specifications

Connection diameter	125 mm
Number of phases	1~
Control	3-position switch, On/Off
Type of motor control	3-2-1
Category code	35
Weight	0.7 kg
IP Complete Unit	IPX2
IP Motor	IP00
Insulation Class Motor	F
Max. Operating Current	0.2 A
Max. pressure	185 Pa
Max. Air Volume	220 m³/h
Max. Current Consumption	0.2 A
Max. power consumption	13 W
Max. Static Efficiency	28.2 %
Max. allowed Medium Temperature	40 °C
Max. allowed Medium Temperature at Rated Current	40 °C
Max. allowed Ambient Temperature	40 °C
Max. allowed Ambient Temperature at Rated Current	40 °C
Max. number of revolutions	3760 1/min
Max. Total Efficiency	28.8 %
With timer	No
Motor Protection	TEC
Motor type	EC
Nominal frequency	50 Hz
Rated Speed	3720 1/min
Nominal power consumption	13 W
Nominal voltage	230 V
Nominal current	0.2 A

Documents

EG-conformiteitsverklaring

Inbouwverklaring

3D-model (.step file)

Technische tekening (.dxf)

Technische tekening (.dwg)

Tekeningen op schaal

Aanbesteding

Informatieblad

Brochure Ruck Etamaster

Bedieningshandleiding

Commissioning report EM EC

Ruck ® 145668 - Declaration of Incorporation

Ruck ® 145668 - EC Declaration of Conformity

Inbetriebnahme EM EC
