Good points

Brand: Wilo
20 W
Integrated motor protection
For heating applications

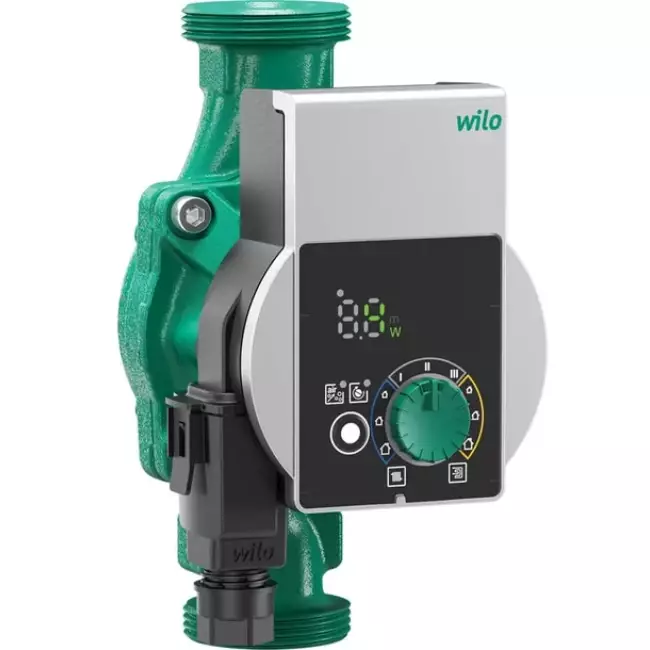

Wilo Yonos PICO Circulation Pump 25/1-4 130 mm

The Wilo Yonos PICO is an IPX4D-rated circulation pump designed to keep water continuously moving within a closed system, such as a central heating installation or underfloor heating. Equipped with an LED control panel that allows easy adjustment of the desired setting in increments of 0.1 m, the PICO circulation pump offers the ideal solution for efficient and reliable water circulation.

Benefits and Features

IPX4D Rating: The IPX4D classification ensures the pump is protected against splashing water from all directions, guaranteeing safe operation in humid installation environments.
Energy Efficiency Index ≤0.18: This pump exceeds the ErP directive requirements and ranks among the most energy-efficient circulation pumps in its power category.
Integrated Motor Protection: Provides automatic protection against overload and blockage, ensuring maximum operational reliability and extending the pump's service life.
Automatic Unblocking Function: Prevents rotor seizure after standstill, ensuring dependable, low-maintenance operation of the pump.
Manual Venting Function: Simplifies venting of the rotor chamber for quiet, trouble-free operation without air entrapment.

Applications and Usage

The Wilo Yonos PICO 25/1-4 130 mm is versatile and suitable for both new build and refurbishment projects. The pump is ideal for larger residential properties and multi-storey buildings where efficient and reliable circulation of heating water is essential. It can be used in various heating systems, including:

Central Heating Systems: For circulating warm water to radiators or convectors.
Underfloor Heating Systems: Ensures even heat distribution at low supply temperatures.
Heat Pump Circuits: Suitable as a circulation pump between the heat pump and buffer tank, or within the secondary distribution circuit of a heat pump system.

Brand	MaxiCool
Category	Accessories
GTIN	04048482758459
Manufacturer's item number	WI-PICO-1-4
Article number	81002306

Specifications

Category code	560
Material quality pump casing	Cast iron EN-GJL-200 (GG 20)
Material impeller/pump wheel	Polypropylene (PP)
Material quality impeller/pump wheel	PP-GF
Volume flow rate (BEP)	1.4 m³/h
Discharge head at flow rate (BEP)	19.99 kPa
Max. discharge flow	2.748 l/h
Max. static height	4.295 m
Max. operating pressure	10 bar
Double pump	No
Electrical connection	Terminals
Rated voltage (min)	230 V
Rated voltage (max)	230 V
Number of phases	1
Frequency	50/60 Hz
Nominal current	0.26 A
Motor power input (P1) per motor	0.02 kW
Insulation class according to IEC	F
Pump circuit	Other
Rotational speed	3400 1/min
Motor speed control	Built-in (integrated)
Type of speed control	Continuously variable
Communication	None
Medium temperature (continuous) (min)	-10 °C
Medium temperature (continuous) (max)	95 °C
Ambient temperature (min)	-10 °C
Ambient temperature (max)	40 °C
Connection inlet side	External thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection inlet side	1 1/2 inch (40)
Outer pipe diameter connection inlet side	40 mm
Flange compression stage connection inlet side	PN 10
Connection standard inlet side	ISO 228-1
Connection outlet side	External thread cylindrical BSPP-G (ISO 228-1)
Nominal diameter connection outlet side	1 1/2 inch (40)
Outer pipe diameter connection outlet side	40 mm
Flange compression stage connection outlet side	PN 10
Connection standard outlet side	ISO 228-1
Built-in length	180 mm
Degree of protection (IP)	IPX4D
DVGW quality mark for water	No
Approved according to ACS	No
Approved according to WRAS	No
Material pump casing	Cast iron
