Good points

Compact design
High-performance magnetic filtration
Easy in maintenance
Universal 1'' connection

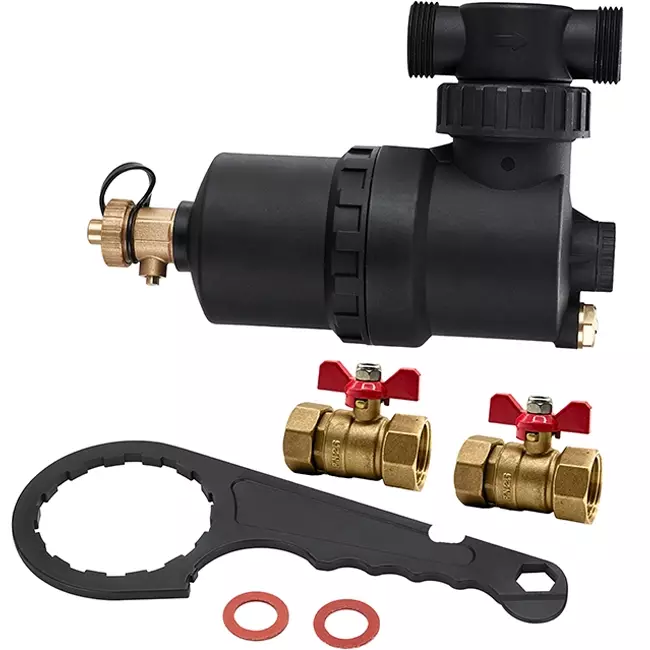

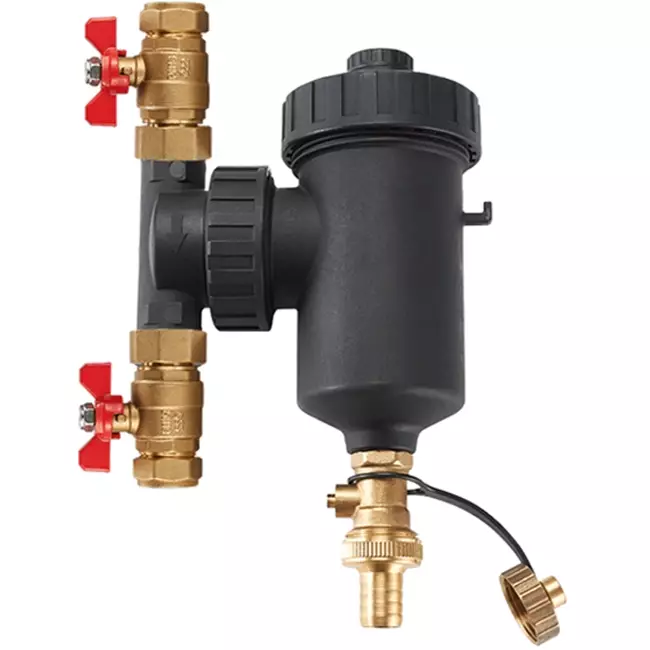

Magnetic filter (dirt separator) for heat pump 1‘’

Protect your HVAC system with this Magnetic Filter (Dirt Separator) for Heat Pump 1‘’. This filter effectively removes magnetic and non-magnetic contaminants from system water, reducing wear and tear on pumps, valves and heat exchangers.

Main features

Efficient filtration: Removes dirt and magnetic particles from the water circuit.
Sustainable material: Made of high-quality, corrosion-resistant components.
Easy installation: Compact design for quick assembly in new and existing systems.
Maintenance-friendly: Easy to clean without dismantling the system.
Extended service life: Protects the HVAC system and increases energy efficiency.

Why choose MaxiCool?

MaxiCool is known for high-quality climate control solutions. All products in our range guarantee maximum efficiency and high reliability, specially tailored to the needs of professional installers.

Technical specifications

Material: Stainless steel.
Connection: 1‘ or 1.5’ thread.
Maximum pressure: 10 bar.
Operating temperature: -10°C tot 90°C.
Magnetic force: 12000 Gauss.

Order now!

Do you want to know more about this magnetic filter or order it directly? Then place your order quickly and easily via our webshop. Do you have any questions about the operation and/or use of this product? Then please contact us!

Brand	MaxiCool
Category	Accessories
GTIN	8719544288141
Manufacturer's item number	NNC-25001
Article number	83002520

Specifications

Category code	560
Separator type	Dirt
Model	Vertical
Material of connection	Other
Material quality connection	Other
Housing material	Other
Housing material quality	Other
Variable flow direction	No
Suitable for heating	Yes
Suitable for cooling	No
Suitable for solar	No
Min. pressure for back flush	10 bar
Max. operating pressure	10 bar
With insulation	No
