Good points
- Efficient air removal
- Automatic operation
- Maintenance-free
- Universal 1'' connection

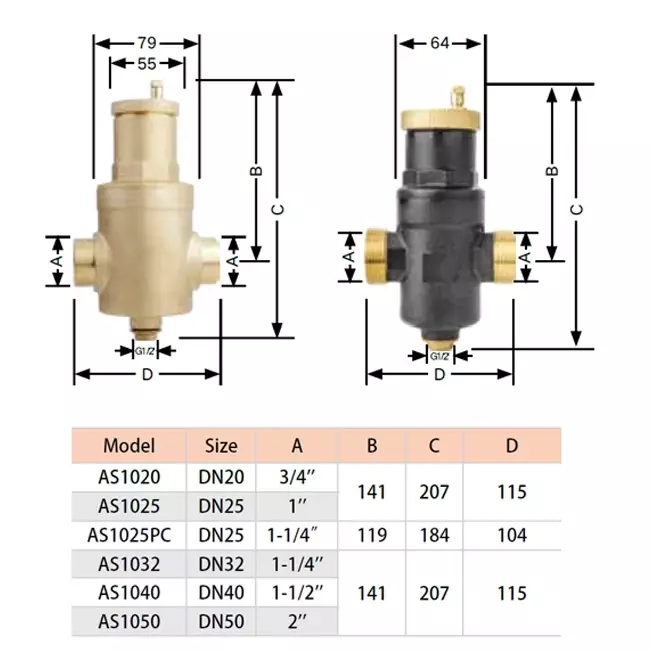

Brass (microbubble) deaerator with horizontal connection 1 ‘F+M
This brass (microbubble) deaerator with horizontal connection 1 ‘F+M is designed to remove air and microbubbles from HVAC water circuits, improving system efficiency and reliability. This prevents problems such as corrosion, reduced heat transfer and cavitation in pumps.
Benefits for you as an installer
- Optimal air removal: Special spiral technology ensures efficient extraction of air bubbles.
- Reliable in harsh conditions: Innovative design prevents clogging of the vent port.
- Easy installation: Suitable for both supply and return pipes, ideal for boilers and heat pumps.
- Maintenance-friendly: Cleaning without dismantling the pipe.
Technical specifications
.- Maximum working pressure: 10 bar (brass), 6 bar (plastic)
- Maximum working temperature: 110°C (brass), 90°C (plastic)
- Available diameters: DN20, DN25, DN32, DN40, DN50
- Material: brass, plastic or stainless steel
- Maximum glycol concentration: 50%
Applications
.This deaerator is widely used in heating, air-conditioning and heat pump systems. It prevents air accumulation, reduces energy losses and prevents damage to components such as pumps and heat exchangers.
Order now at MaxiCool!
Improve the performance of HVAC systems with this brass (micro-bubble) deaerator. Do you have any questions about the use or application of this product? Contact us for more information or a quote.
| Brand | MaxiCool |
| Category | Accessories |
| GTIN | 8719544288158 |
| Manufacturer's item number | AS1025AC |
| Article number | 83002409 |
Specifications
| Category code | 560 |
| Separator type | Air |
| Model | Horizontal |
| Material of connection | Brass |
| Material quality connection | Other |
| Housing material | Brass |
| Housing material quality | Other |
| Suitable for heating | Yes |
| Suitable for cooling | Yes |
| Suitable for solar | No |
| Nominal diameter | DN 25 |
| Article pressure rating | Other |
| Surface protection | Other |
| Medium temperature (continuous) (min) | 90 °C |
| Medium temperature (continuous) (max) | 110 °C |
| Max. operating pressure | 10 bar |
| Kvs value | 2.11 |
| With insulation | No |
