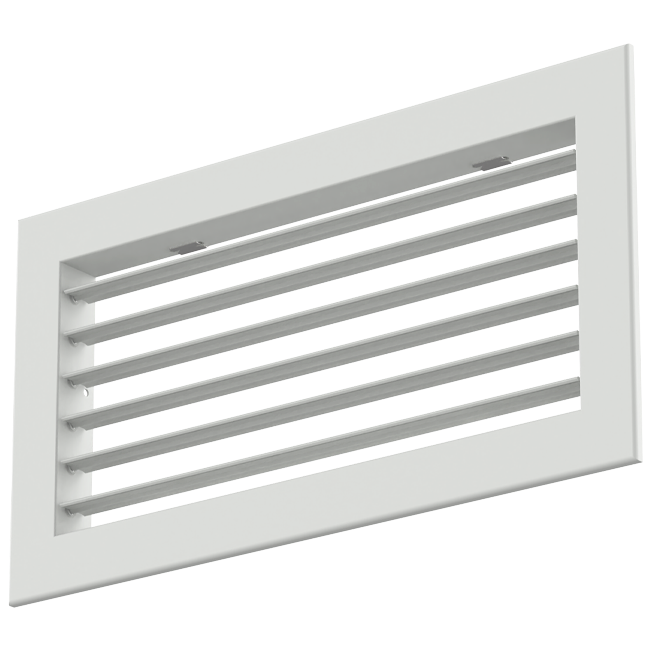

Wall grille aluminum single adjustable - with friction springs - 200x100 mm - RAL 9016

Brand: Econox

-25%

RRP 41.00

30.76 -25%

You'll save 10.24

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

For supply and removal
Extruded aluminum
Single adjustable

Aluminium Wall Vent Single Adjustable – with Spring Clips – 200x100 mm – RAL 9016

The Econox aluminium wall vent, featuring horizontally adjustable louvers, is specifically designed for air supply and extraction in commercial indoor spaces such as offices, schools, and retail environments. The vent’s adjustable louvers allow you to direct the airflow as required.

Practical Information

The wall vent measures 200 mm in width and 100 mm in height. Both the mounting frame and louvers are made from extruded aluminium, preventing deformation during installation, and are then powder coated in RAL 9010, 9016, or 9005.

Installation and Applications

The wall vent is supplied standard with spring clips and a mounting frame, enabling easy installation into the wall. Using the spring clips, the grille can be quickly snapped into the mounting frame before the entire assembly is fitted into the wall. Optionally, the wall vent can be combined with a plenum (only when used with spring clips and without a mounting frame) or a control damper to ensure even air distribution within the space.

Brand	Econox
Category	Wall grilles aluminium with clamping springs - single adjustable vanes
GTIN	8719544327840
Manufacturer's item number	79000076
Article number	79000076

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	200 mm
Nominal duct height	100 mm
Vertical fins	No
Double row of ribs	No
Front width	232 mm
Front height	132 mm
With built-in window	Yes
Colour	White
RAL-number	9016
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	None
Ball-protected	No
Built-in depth	92 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
