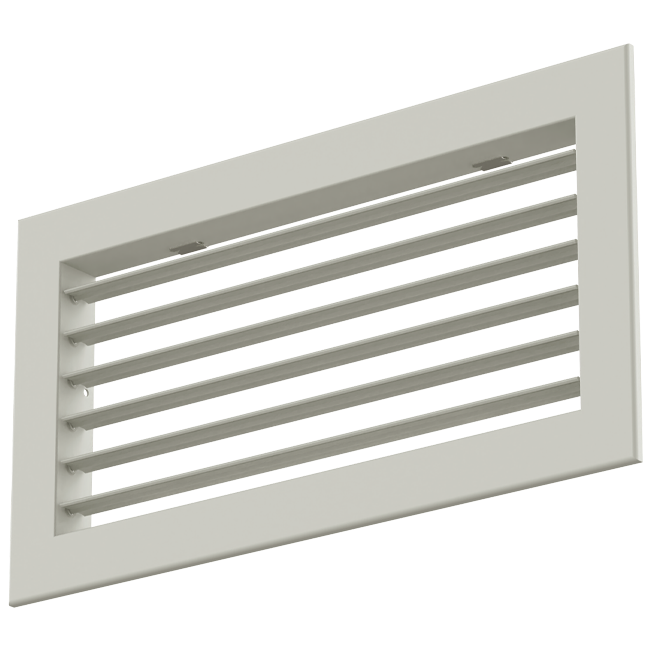

Wall grille aluminum single adjustable - with friction springs - 200x100 mm - RAL 9010

Brand: Econox

-25%

RRP 41.00

30.76 -25%

You'll save 10.24

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

For supply and removal
Extruded aluminum
Single adjustable

Aluminium Single Adjustable Wall Grille – with Spring Clips – 200x100 mm – RAL 9010

The Econox wall grille, made of aluminium and featuring horizontally adjustable blades, is specifically designed for air supply and exhaust in commercial interior spaces such as offices, schools, and retail stores. The grille's adjustable blades allow for customization of the airflow direction as required.

Technical Information

The wall grille measures 200 mm in width and 100 mm in height. Both the mounting frame and the blades are made from extruded aluminium, preventing deformation during installation, and are powder coated in RAL 9010, 9016, or 9005.

Installation and Applications

The wall grille is supplied standard with spring clips and a mounting frame, enabling installation in the wall. The grille can be easily snapped into the mounting frame using the spring clips before fitting it into the wall. Optionally, the wall grille can be combined with a plenum (only when using spring clips without a mounting frame) or a control damper to ensure uniform air distribution within the space.

Brand	Econox
Category	Wall grilles aluminium with clamping springs - single adjustable vanes
GTIN	8719544327659
Manufacturer's item number	79000057
Article number	79000057

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	200 mm
Nominal duct height	100 mm
Vertical fins	No
Double row of ribs	No
Front width	232 mm
Front height	132 mm
With built-in window	Yes
Colour	White
RAL-number	9010
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	None
Ball-protected	No
Built-in depth	92 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
