Wall grille aluminum single adjustable - with friction springs - 200x100 mm - RAL 9005

Brand: Econox

-25%

RRP 41.00

30.76 -25%

You'll save 10.24

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

For supply and removal
Extruded aluminum
Single adjustable

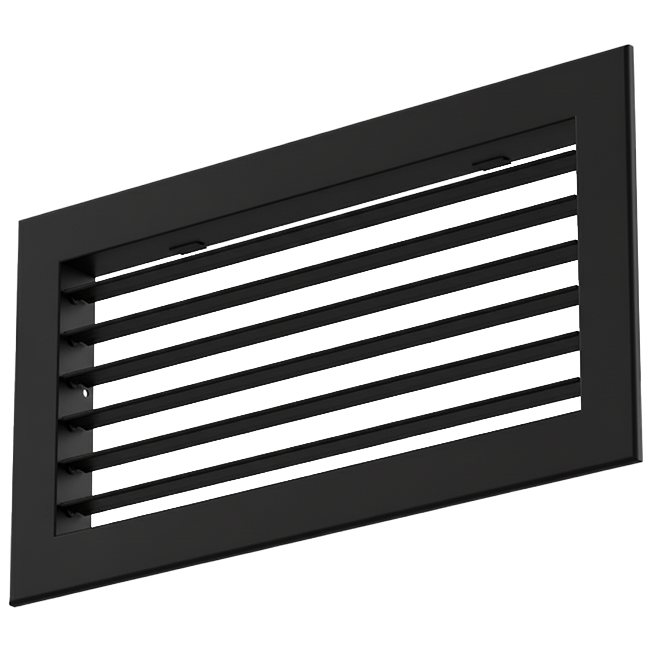

Aluminium wall grille single adjustable – with spring clips – 200x100 mm – RAL 9005

The Econox wall grille, made of aluminium with horizontally adjustable blades, is specifically designed for supply and exhaust air in commercial indoor spaces such as offices, schools, and retail stores. The grille can be adjusted using the blades to achieve the desired airflow direction.

Practical information

The wall grille has a width of 200 mm and a height of 100 mm. The mounting frame and blades are made from extruded aluminium, which prevents deformation during installation, and are powder-coated in RAL 9010, 9016, or 9005.

Installation and applications

The wall grille is supplied as standard with spring clips and a mounting frame, allowing installation into the wall. The grille can be easily clipped into the mounting frame using the spring clips before being placed into the wall. Optionally, the wall grille can be combined with a plenum (only when using spring clips without a mounting frame) or a control damper to provide uniform air distribution within the space.

Brand	Econox
Category	Wall grilles aluminium with clamping springs - single adjustable vanes
GTIN	8719544328038
Manufacturer's item number	79000095
Article number	79000095

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	200 mm
Nominal duct height	100 mm
Vertical fins	No
Double row of ribs	No
Front width	232 mm
Front height	132 mm
With built-in window	Yes
Colour	Black
RAL-number	9005
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	None
Ball-protected	No
Built-in depth	92 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
