Good points
- 350m³/h + 93.8% efficiency
- Built-in humidity sensor
- Including preheater
Vent-Axia Sentinel Kinetic Advance including preheater - 350 m³/h
With the Sentinel Kinetic Advance 350, Vent-Axia introduces a new generation of MVHR units. The Kinetic Advanced has a light and airtight housing and a high thermal efficiency. The Kinetic Advance 350 is equipped with freeze protection with electric preheater, humidity sensors and 94.3% efficiency as standard. With a resistance of 150 Pa, the maximum airflow of the unit is 350m³/h. The suction and discharge to the outside are located on the left side of this unit.

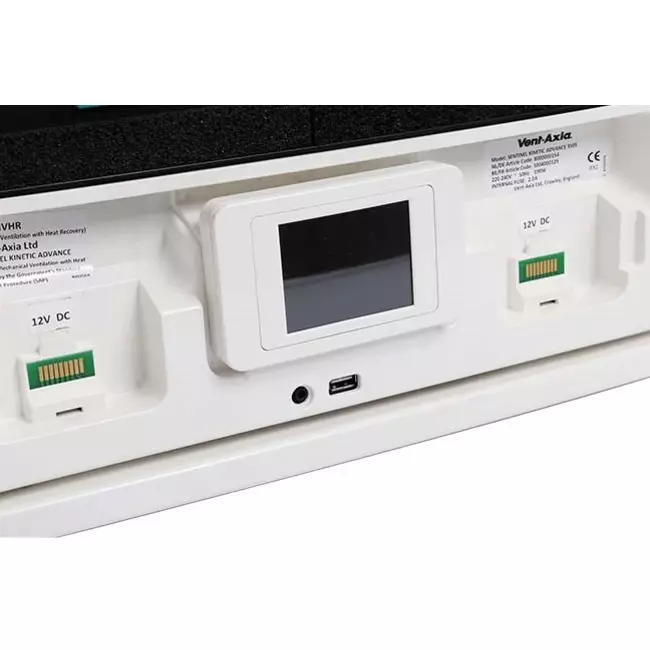

With the movable touchscreen, the MVHR unit can easily be set to the desired setting. In addition, this touchscreen has an intuitive installation wizard which simplifies the adjustment of the balance ventilation system. After adjusting the Sentinel Kinetic Advance the set values can be copied via the USB connection on the unit. By means of optional adjustable feet, the MVHR unit can be installed on the floor.
The Vent-Axia Sentinel Kinetic Advance MVHR, in combination with the optional direct Wi-Fi module, can be controlled wirelessly via the app on smartphone or tablet. On the app you can easily read the status of the unit, check the temperature in the house and set the desired ventilation setting. In addition, the app automatically notifies you when the filters need to be replaced or when maintenance is required.
Left means that the connections are mounted to the outside, left (inlet from outside and outlet to outside).
Other advantages of the Vent-Axia Sentinel Kinetic Advance are:- High efficiency plastic counterflow heat exchanger of 93.8%
- Built-in automatic humidity sensors, suitable for demand control
- Energy efficient EC fans with rearward curved vanes
- Low power consumption
- Suitable for wall or floor mounting
- Wireless setting and operation via app (via optional direct Wi-Fi module)
- Saving and copying settings via USB
- Very quiet unit
- Complete summer bypass with advanced functions for night cooling
- Freeze protection with electric preheater
- Low pressure filters with large filter surface area
The Vent-Axia Sentinel Kinetic Advance 350 can be operated in combination with the Wi-Fi module via the Vent-Axia connect app:
| Brand | Vent-Axia |
| Category | Heat recovery choice aid |
| GTIN | 5015135786168 |
| Manufacturer's item number | 8000000530 |
| Article number | 19500530 |
Specifications
| Category code | 73 |
| Heat recovery by | Cross-counter-flow unit |
| Housing material | Plastic |
| Housing material quality | Other |
| Material heat exchanger | Plastic |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | No |
| Suitable for floor mounting | Yes |
| Left/right orientation reversible | No |
| Max. air volume at 50 Pa | 350 m³/h |
| Max. air volume at 100 Pa | 350 m³/h |
| Max. air volume at 150 Pa | 350 m³/h |
| Max. air volume at 200 Pa | 350 m³/h |
| Max. volume flow according to 1254/2014/EU | 350 m³/h |
| Sound power level according to 1254/2014/EU | 48 dB(A) |
| Thermal efficiency at 70% air volume at 50 Pa | 90.8 % |
| Type of motor | Electronically commutated (EC) |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Number of phases | 1 |
| Fuse size of the device | 13 A |
| With thermal overload protection | Yes |
| Electrical connection | Terminals |
| Energy efficiency class according to 1253/2014/EU | A+ |
| With digital display | Yes |
| With wired control unit | Yes |
| Suitable for wired control unit | Yes |
| Suitable for wireless remote control | Yes |
| Supporting protocol for Modbus | No |
| With zone controller | No |
| Suitable for zone controller | Yes |
| With heating element | Yes |
| With volatile organic compound (VOC) sensor | No |
| Suitable for extra VOC sensor | Yes |
| With internal humidity (RH) sensor | Yes |
| Suitable for (extra) humidity (RH) sensor | Yes |
| With internal carbon dioxide (CO2) sensor | No |
| Suitable for (extra) carbon dioxide (CO2) sensor | Yes |
| Suitable for central heating boiler connection | No |
| With bypass | Yes |
| With constant pressure control | No |
| With constant volume flow control | No |
| Type of frost protection | Heating element |
| Nominal duct diameter (min) | 160 mm |
| Nominal duct diameter (max) | 160 mm |
| Connections outdoor air side | Insert end |
| Connections residential side | Insert end |
| Residential connection, underside | No |
| Residential connection, left side | No |
| Residential connection, right side | Yes |
| Residential connection, top | Yes |
| Roof connection, side | No |
| Roof connection, top | Yes |
| Supply filter according to ISO 16890-1:2016 | ISO Coarse |
| Efficiency supply filter according to ISO 16890-1:2016 | 65 % |
| Exhaust filter according to ISO 16890-1:2016 | ISO Coarse |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 65 % |

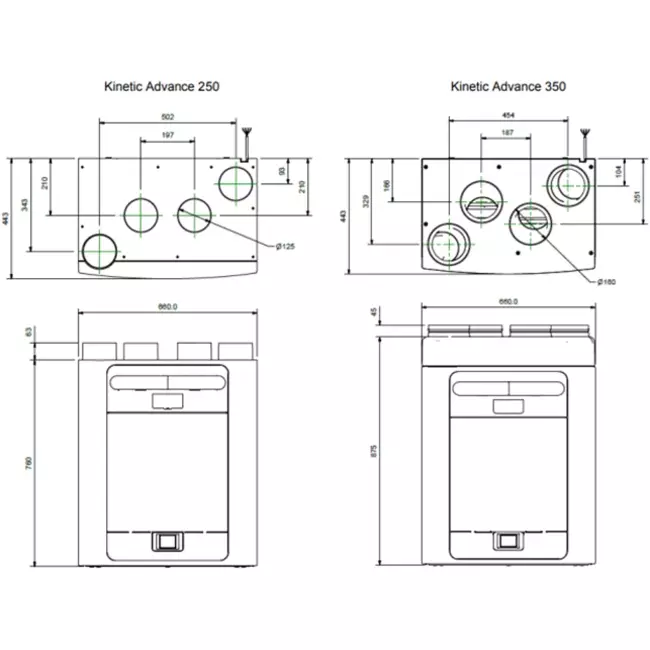

| Height | 875 mm |
| Width | 660 mm |
| Depth | 443 mm |
| Weight | 36 kg |
| Energy label | A+ |
| Connection type | connections links |
| With enthalpy exchanger | No |
| Plug type | Euro plug |
