Good points
- 500m³/h
- Including RF control
- Horizontal and vertical mounting possible

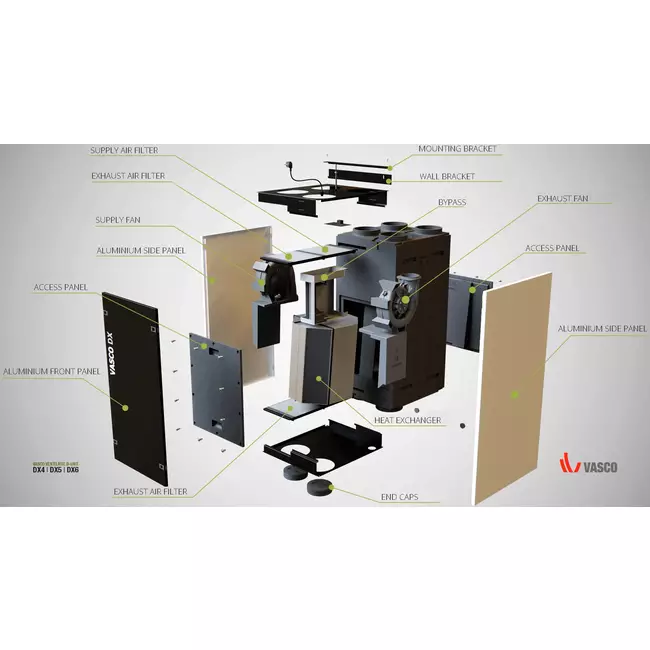

Vasco DX5 – 500m³/h
The Vasco DX5 is an MVHR system from the premium Vasco DX series with a ventilation capacity of 500 m³/h at 150 Pascal. The DX5 is the ideal domestic home fan with heat recovery for medium-sized homes. The unit can be operated wirelessly. It has a digital display and excellent efficiency, and includes one wireless remote control. In addition, the Vasco DX5 can be mounted either vertically or horizontally!
The Vasco DX5 provides you with a constant supply of fresh air in your home. In combination with the extraction and recovery of heated air, this ensures a healthy and pleasant indoor climate! What's more, the DX5 has a built-in Octogon heat exchanger to ensure efficient heat recovery. This makes the house exceptionally energy efficient.
To operate it, you can choose from a wired three-step switch or wireless switches. Up to 20 wireless switches can be connected! A Vasco DX unit is low maintenance and has a significant EPC reduction. The Vasco DX5 is highly suitable for both new constructions and renovation projects.
Features of the Vasco DX5
- 500m³/h at 150 Pascal
- extremely high efficiency
- reversible dwelling / external connection front / rear
- lacquered aluminium housing
- internal airtight EPP construction
- high-efficiency plastic heat exchanger
- EC direct current radial fans with backward curved vanes
- continuous volume control for guaranteed air volume
- fully modulating bypass
- alarm contact
- three-step contacts for external control
- 0-10V signal for external control
- air filter F7 for fresh air
- air filter(s) G4 for exhaust air
- RF switch with LED indication
- max. 20 RF switches can be connected
- up to three ventilation units can be combined
| Brand | Vasco |
| Category | All MVHR units |
| GTIN | 5413754869079 |
| Manufacturer's item number | 11VE00042 |
| Article number | 19151005 |
Specifications
| Category code | 80 |
| Heat recovery by | Cross-counter-flow unit |
| Housing material | Steel |
| Material heat exchanger | Plastic |
| Suitable for wall mounting | Yes |
| Suitable for ceiling mounting | No |
| Suitable for floor mounting | Yes |
| Left/right orientation reversible | Yes |
| Max. air volume at 50 Pa | 480 m³/h |
| Max. air volume at 100 Pa | 480 m³/h |
| Max. air volume at 150 Pa | 450 m³/h |
| Max. air volume at 200 Pa | 405 m³/h |
| Power consumption at max. air volume at 100 Pa | 240 W |
| Thermal efficiency at 70% air volume at 50 Pa | 91.8 % |
| Type of motor | Electronically commutated (EC) |
| Voltage | 230 V |
| Frequency | 50 Hz |
| Number of phases | 1 |
| Fuse size of the device | 20 A |
| With thermal overload protection | Yes |
| Electrical connection | Connecting cable with plug with protective contact |
| Energy efficiency class according to 1253/2014/EU | A |
| With digital display | No |
| With wired control unit | No |
| Suitable for wired control unit | Yes |
| Suitable for wireless remote control | Yes |
| Supporting protocol for Modbus | No |
| With zone controller | No |
| Suitable for zone controller | No |
| With heating element | No |
| With volatile organic compound (VOC) sensor | No |
| Suitable for extra VOC sensor | No |
| With internal humidity (RH) sensor | No |
| Suitable for (extra) humidity (RH) sensor | Yes |
| With internal carbon dioxide (CO2) sensor | No |
| Suitable for (extra) carbon dioxide (CO2) sensor | Yes |
| Suitable for central heating boiler connection | No |
| With bypass | Yes |
| With constant pressure control | No |
| With constant volume flow control | Yes |
| Type of frost protection | Heating element |
| Nominal duct diameter (min) | 180 mm |
| Nominal duct diameter (max) | 180 mm |
| Connections outdoor air side | Insert end |
| Connections residential side | Insert end |
| Residential connection, underside | Yes |
| Residential connection, left side | No |
| Residential connection, right side | No |
| Residential connection, top | Yes |
| Roof connection, side | No |
| Roof connection, top | Yes |
| Supply filter according to ISO 16890-1:2016 | ISO ePM1 |
| Efficiency supply filter according to ISO 16890-1:2016 | 55 % |
| Exhaust filter according to ISO 16890-1:2016 | ISO Coarse |
| Efficiency exhaust filter according to ISO 16890-1:2016 | 65 % |
| Height | 1330 mm |
| Width | 588 mm |
| Depth | 685 mm |
| Weight | 49.8 kg |
| Connection type | connection left right |
| With enthalpy exchanger | No |
| Energy label | A+ |
| Plug type | Euro plug |
