This product contains:
Good points
- Incl. control
- EC motor
- Mixed-flow impeller with stator

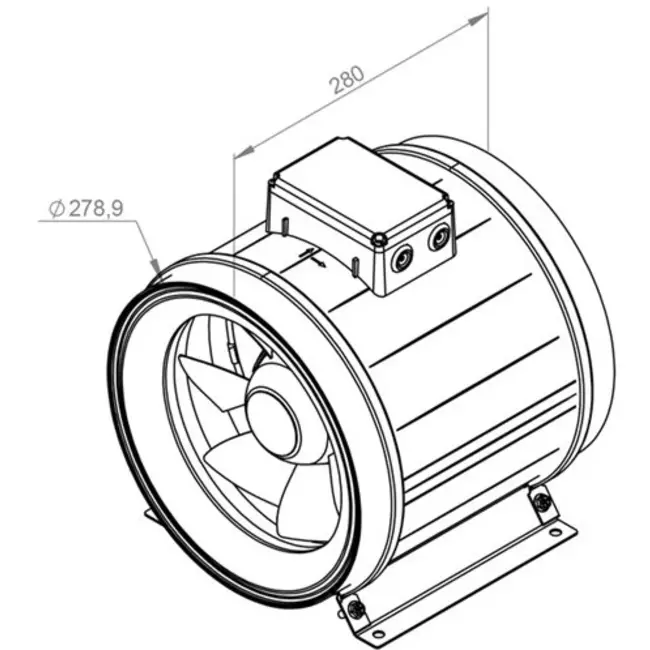

Ruck® Etamaster inline tube fan with EC motor
Package contents:
1x Ruck® ETAMASTER inline tube fan with EC motor 2440m³/h - Ø 280 mm (EM 280 EC 01)
1x Ruck® potentiometer 10 kO - MTP 20
The Ruck® ETAMASTER inline tube fan (EM EC series) has an energy-efficient EC motor, this EC motor can be operated with variable speed control. The Etamaster inline tube fan from Ruck® can be mounted directly on a tube, but we recommend the corresponding Ruck® fast clamp to reduce vibrations and noise through the duct.
The Etamaster has a built-in thermal switch to prevent burn out. In addition, the inline tube fan is equipped with a Mixed-Flow impeller with stator, as a result of which the fan will still produce a low sound level at a high flow rate. The EM EC series is available with capacities ranging from 780 m3/h to a maximum of 5700 m3/h and with diameters ranging from 150 mm to a maximum of 400 mm respectively.
Ruck® potentiometer 10 kO - MTP 20
The inline tube fan is supplied including potentiometer. The potentiometer is easy to connect and is suitable for surface or recessed mounting. The maximum ambient temperature at which the switch can be mounted is 50°C. The resistance of the potentiometer is 10 ohms and has protection class IP44. This potentiometer guarantees 100% operation in combination with the aforementioned inline tube fan. More information about the connection and properties can be found under the documents tab.
Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of energy-efficient Etamaster inline tube fans with an EC motor. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.
- Internal electronic temperature control
- Plastic housing
- Integrated electronics
- EC motor
- Variable speed control
- Including mounting brackets
- Mixed-Flow impeller with stator
| Brand | Ruck ventilatoren GmbH |
| Category | Ruck ETAMASTER Inline extractor fans |
| GTIN | 8719544144126 |
| Manufacturer's item number | 65010021 |
| Article number | 65010021 |
Specifications
| Number of phases | 1~ |
| Control | Potentiometer, On/Off |
| Type of motor control | 0-10V |
| Capacitor µ | 0 µF |
| Capacitor Voltage | 0 V |
| Weight | 5.55 kg |
| IP Complete Unit | IPX4 |
| IP Terminal Box | IP44 |
| IP Motor | IP33 |
| Insulation Class Motor | F |
| Max. Operating Current | 1.86 A |
| Max. pressure | 630 Pa |
| Max. Air Volume | 2440 m³/h |
| Max. Current Consumption | 1.86 A |
| Max. power consumption | 267 W |
| Max. Static Efficiency | 58.6 % |
| Max. allowed Medium Temperature | 45 °C |
| Max. allowed Medium Temperature at Rated Current | 45 °C |
| Max. allowed Ambient Temperature | 45 °C |
| Max. allowed Ambient Temperature at Rated Current | 45 °C |
| Max. number of revolutions | 3170 1/min |
| Max. Total Efficiency | 62.2 % |
| With timer | No |
| Min. Operating Temperature | -30 °C |
| Motor Protection | TEC |
| Motor type | EC |
| Nominal frequency | 50 Hz |
| Rated Speed | 2970 1/min |
| Nominal power consumption | 267 W |
| Nominal voltage | 230 V |
| Nominal current | 0.104 A |
