Good points
- Brand: Ruck fans
- AC motor
- Up to 790 m3/h
- 3 speeds

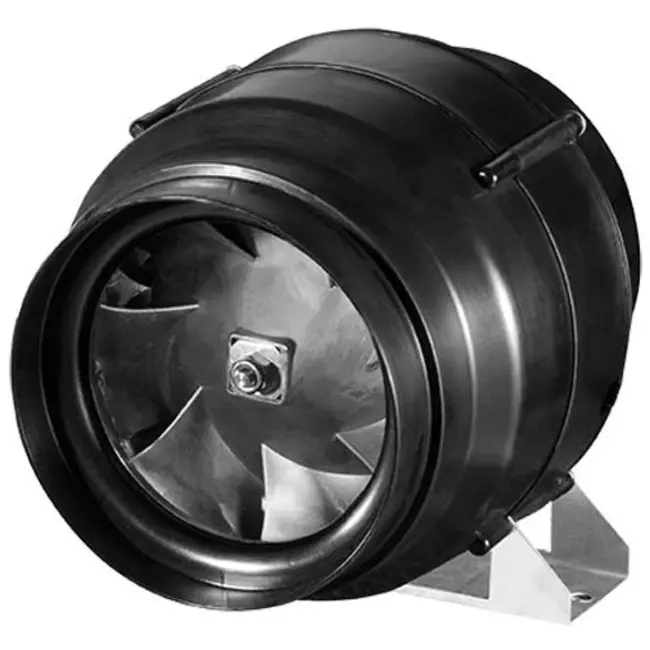

Ruck® ETALINE M inline tube fan
The Ruck® ETALINE inline tube fan (EL M series) has an energy-efficient motor that can be operated with a Ruck® three-step switch. The Etaline inline tube fan is supplied including mounting brackets and can be mounted directly on a tube. However, we recommend the corresponding Ruck® fast clamp to reduce vibrations and noise through the duct.
The Etaline is a powerful fan and 50% more economical compared to other inline tube fans and has a built-in thermal switch to prevent burn out. In addition, the inline tube fan is equipped with a Mixed-Flow impeller with stator, as a result of which the fan will still produce a low sound level at a high flow rate. The EL M series is available with capacities ranging from 360 m3/h to a maximum of 1710 m3/h and with diameters ranging from 125 mm to a maximum of 250 mm respectively.
Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of energy-efficient inline tube fans. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.
- 3-step or with adjustable speed
- With plastic housing

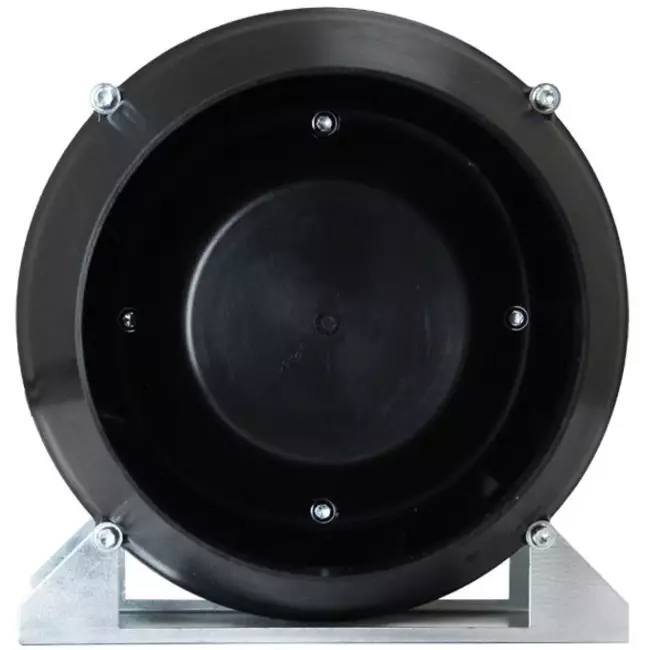

- Including mounting brackets
- Built-in thermal switch

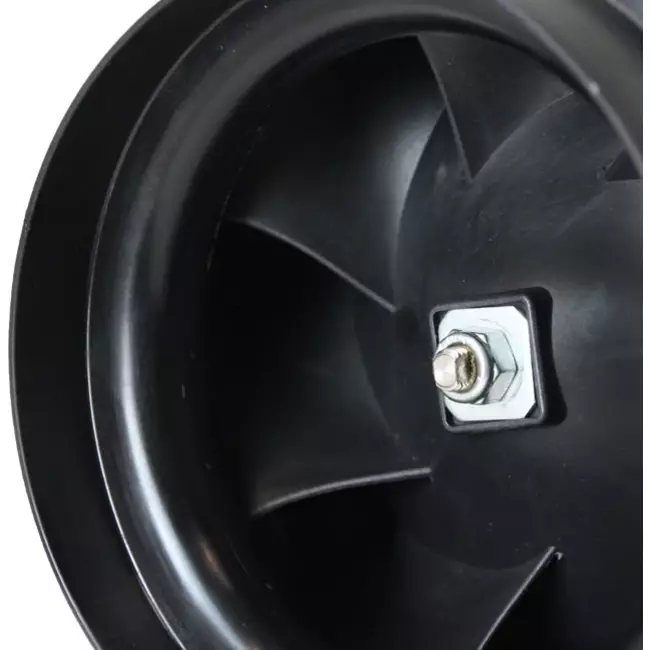

- Mixed-Flow impeller with stator
| Brand | Ruck ventilatoren GmbH |
| Category | Ruck Etaline M Inline extractor fans |
| GTIN | 4061199011303 |
| Manufacturer's item number | 122228 |
| Article number | 65122228 |
Specifications
| Connection diameter | 150 mm |
| Number of phases | 1~ |
| Number of poles | 2 |
| Control | 3-position switch, On/Off |
| Type of motor control | 36925 |
| Category code | 35 |
| Capacitor µ | 3.5 µF |
| Capacitor Voltage | 450 V |
| Weight | 3.4 kg |
| IP Complete Unit | IPX4 |
| IP Motor | IP00 |
| Insulation Class Motor | F |
| Max. Operating Current | 0.64 A |
| Max. pressure | 445 Pa |
| Max. Air Volume | 790 m³/h |
| Max. Current Consumption | 0.64 A |
| Max. power consumption | 130 W |
| Max. Static Efficiency | 31.7 % |
| Max. allowed Medium Temperature | 50 °C |
| Max. allowed Medium Temperature at Rated Current | 50 °C |
| Max. allowed Ambient Temperature | 50 °C |
| Max. allowed Ambient Temperature at Rated Current | 50 °C |
| Max. number of revolutions | 2870 1/min |
| Max. Total Efficiency | 35 % |
| With timer | No |
| Min. allowed Voltage | 230 V |
| Min. Operating Temperature | -25 °C |
| Motor Protection | TAI |
| Motor type | 1~ |
| Nominal frequency | 50 Hz |
| Rated Speed | 2600 1/min |
| Nominal power consumption | 130 W |
| Nominal voltage | 230 V |
| Nominal current | 0.61 A |
