Good points

Drain Grate, Fixed Pattern
Round ceiling-mounted model, sleek design
Available in RAL colors
Quick installation on a duct

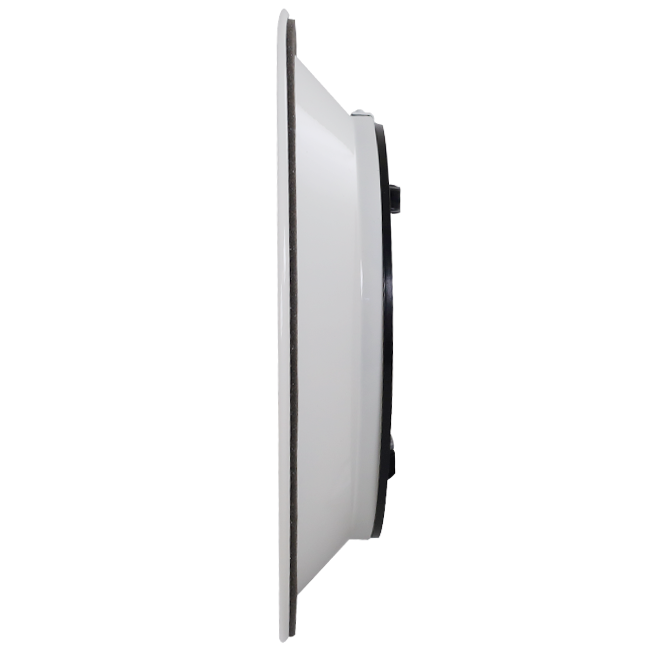

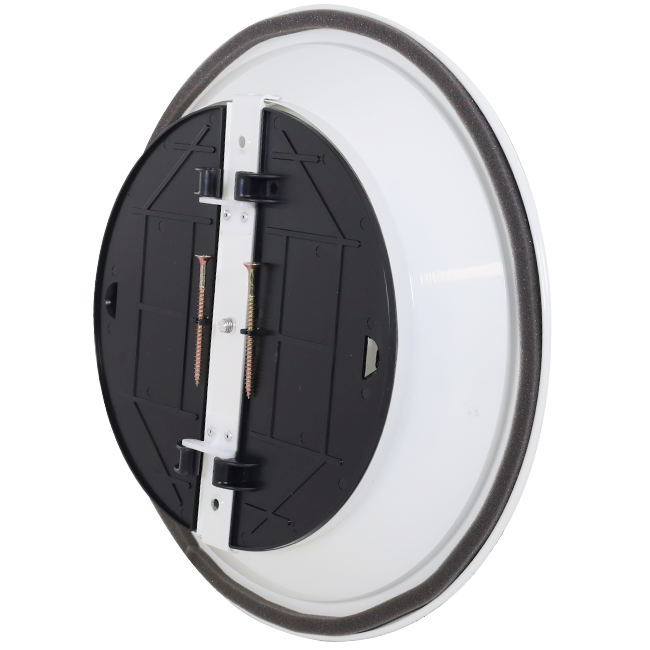

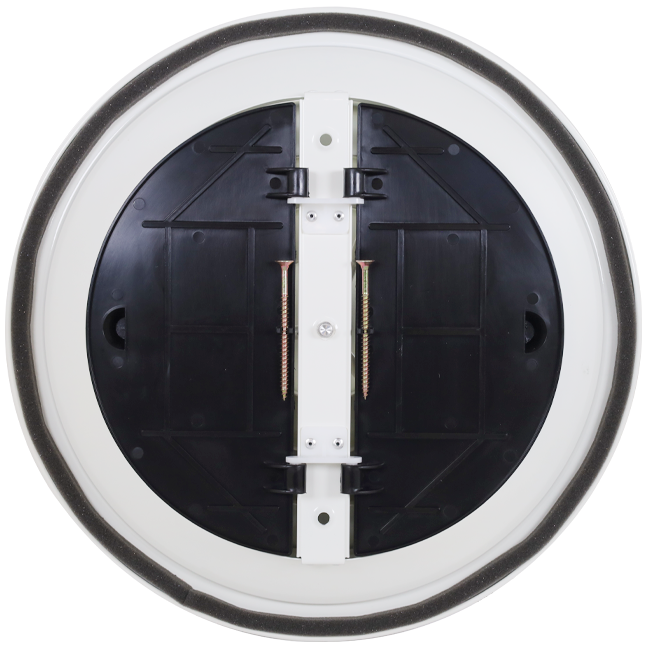

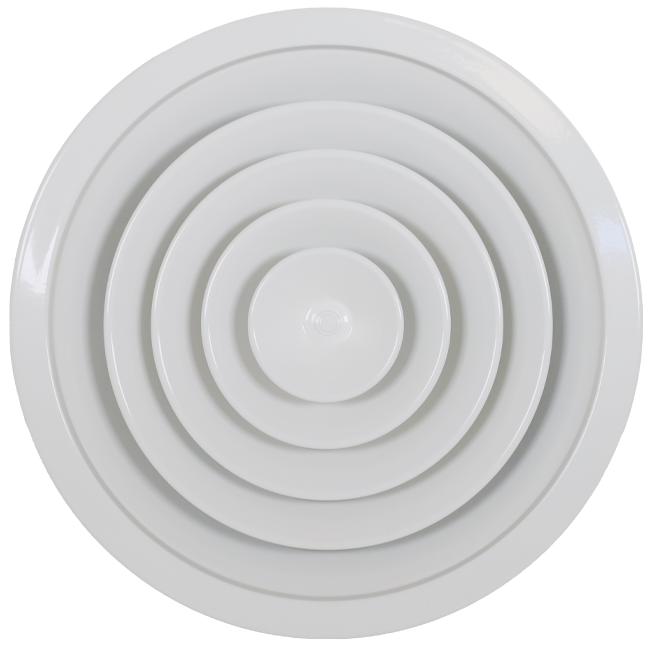

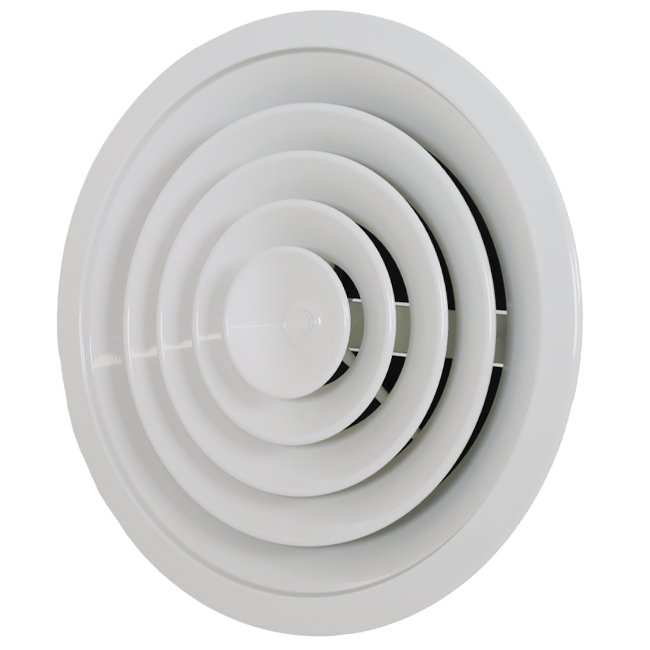

Round Ceiling Diffuser with Fixed Pattern Ø 250 mm - RAL9010

This round ceiling diffuser with a diameter of 250 mm is made of aluminium and finished in RAL9010. It is used for ceiling applications where a larger volume of air needs to be distributed. The fixed pattern ensures controlled air diffusion.

Benefits and Features

Aluminium construction – dimensionally stable and corrosion resistant.
Fixed pattern – uniform air distribution without moving parts.
RAL9010 finish – sleek white appearance.
Diameter 250 mm – suitable for higher air capacity.

Installation and Application

You install the diffuser directly into the ceiling or into a suspended ceiling tile. The larger diameter allows you to distribute more air over a wider area.

This ceiling diffuser offers a reliable combination of capacity and finish.

Brand	Econox
Category	Round ceiling grilles with fixed pattern
GTIN	8719544332257
Manufacturer's item number	76021046
Article number	76021046

Specifications

Category code	62
Material	Aluminium
Connection	Insert end
Front diameter	358 mm
With volume control	No
Without plenum	Yes
Built-in height	47 mm
Air pattern, adjustable	No
Plenum internally insulated	No
Nominal duct diameter, connection (max)	250 mm
With mounting bracket	Yes
Nominal duct diameter, connection (min)	250 mm
