Good points

Fixed discharge pattern, predictable
Round ceiling model, sleek appearance
Available in RAL colors
Quick installation on channel

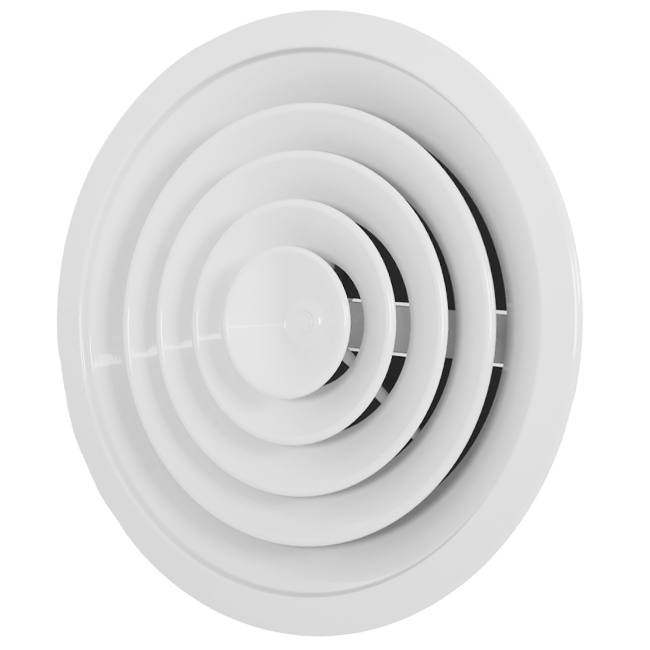

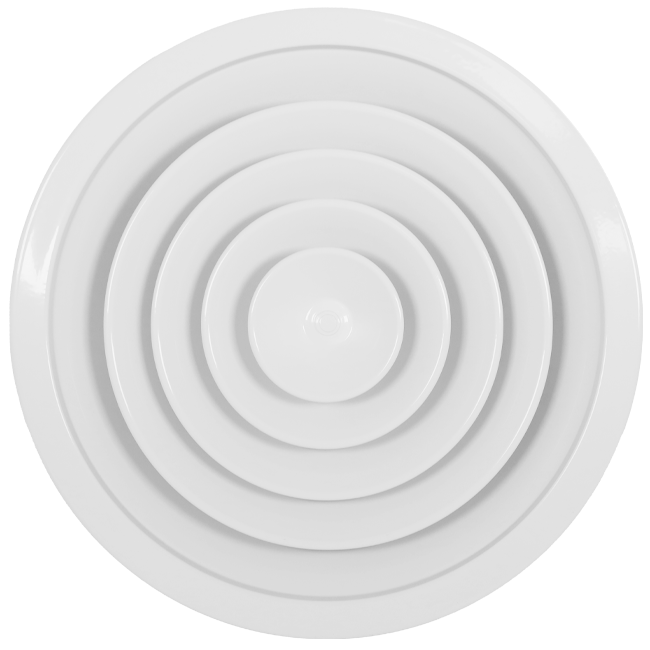

Round Ceiling Diffuser with Fixed Pattern Ø 250 mm - RAL9016

This round ceiling diffuser with a diameter of 250 mm is made of aluminium and finished in RAL9016. It is used in ceiling applications where a larger air volume needs to be distributed. The fixed pattern ensures controlled air diffusion.

Benefits and Features

Aluminium construction – dimensionally stable and corrosion-resistant.
Fixed pattern – even air distribution.
RAL9016 finish – bright white appearance.
Diameter 250 mm – suitable for higher air capacity.

Installation and Application

The diffuser is installed directly into the ceiling or a suspended ceiling tile. The larger diameter allows for distributing more air over a wider area.

With this ceiling diffuser, you choose a reliable and neat ceiling finish.

Brand	Econox
Category	Round ceiling grilles with fixed pattern
GTIN	8719544332301
Manufacturer's item number	76021051
Article number	76021051

Specifications

Category code	62
Material	Aluminium
Connection	Insert end
Front diameter	358 mm
With volume control	No
Without plenum	Yes

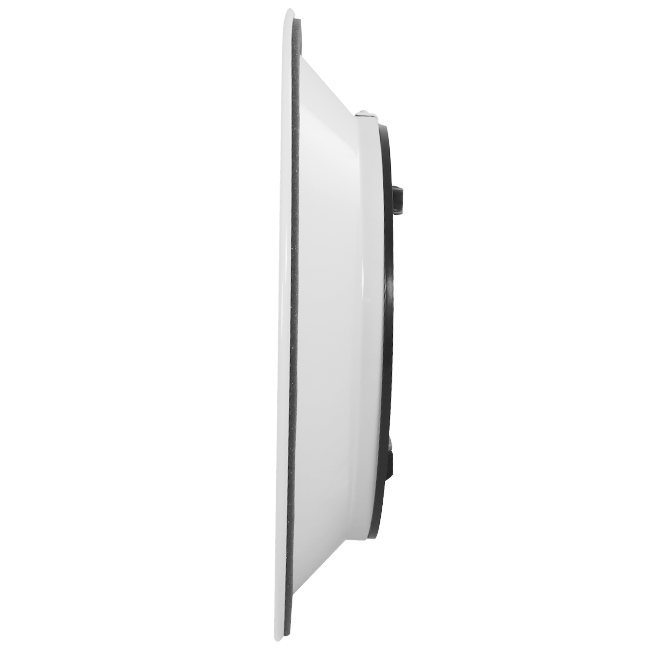

Built-in height	47 mm
Air pattern, adjustable	No
Plenum internally insulated	No
Nominal duct diameter, connection (max)	250 mm

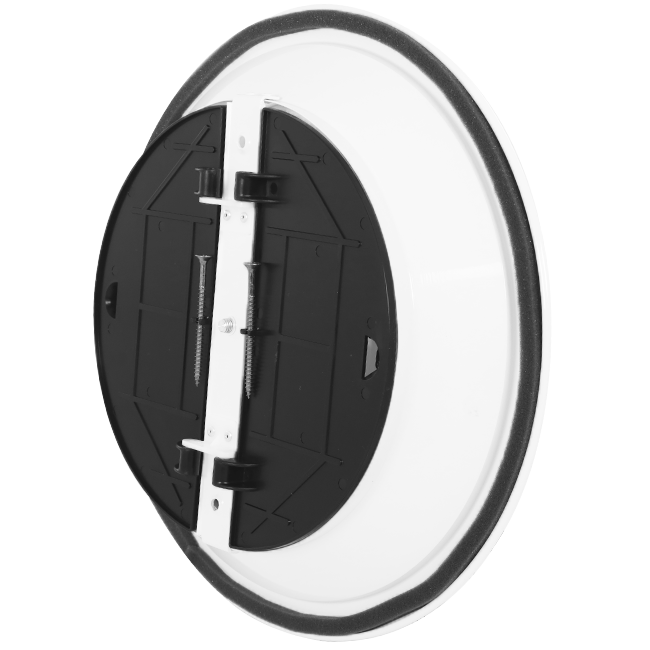

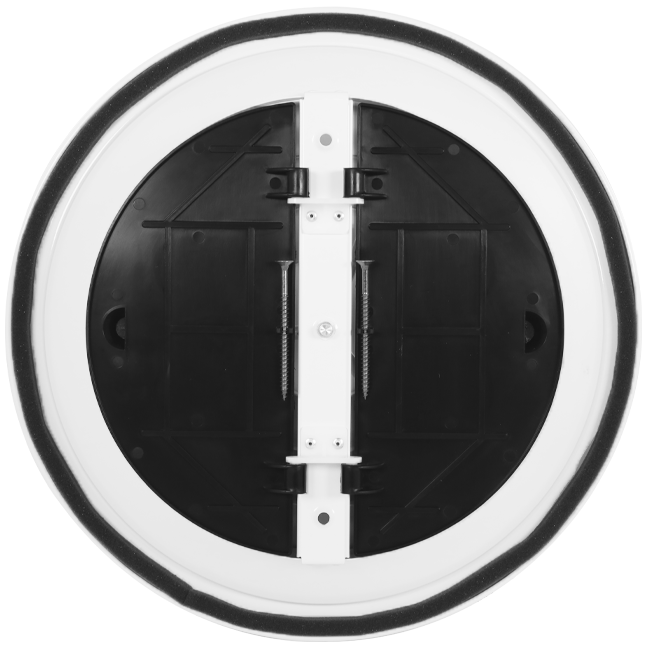

With mounting bracket	Yes
Nominal duct diameter, connection (min)	250 mm
