Good points

Fixed discharge pattern, predictable
Round ceiling model, sleek image
Available in RAL colors
Quick installation on channel

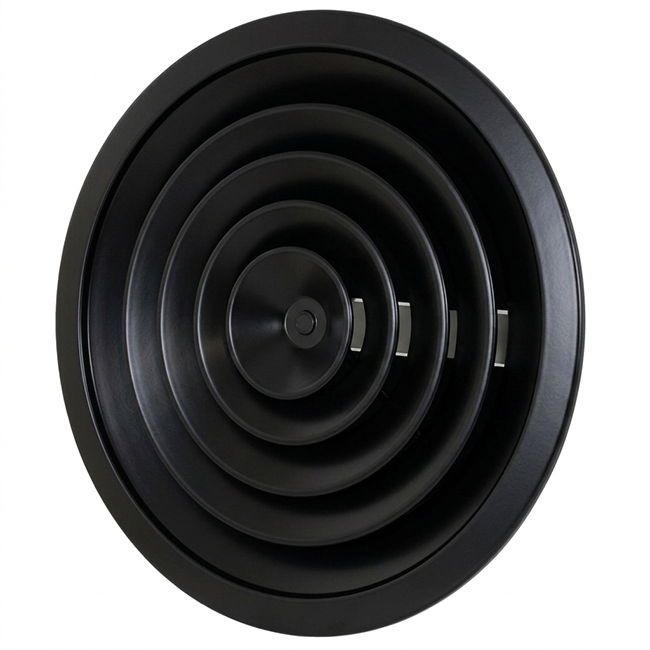

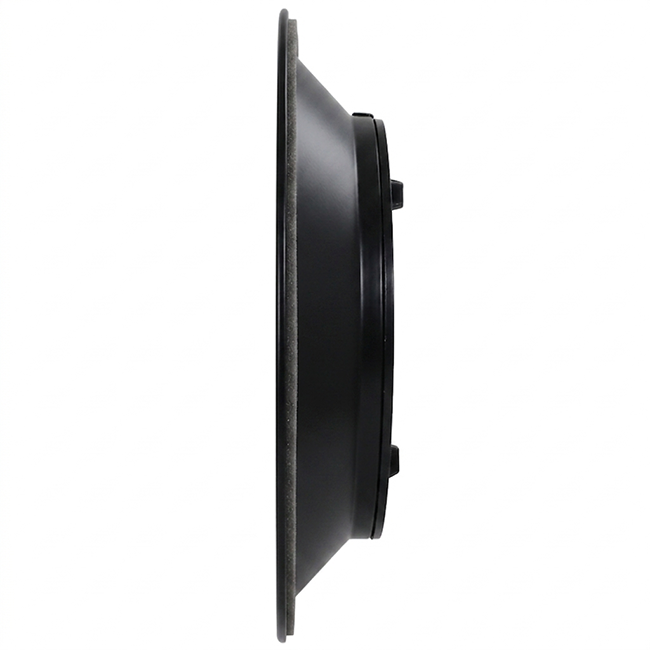

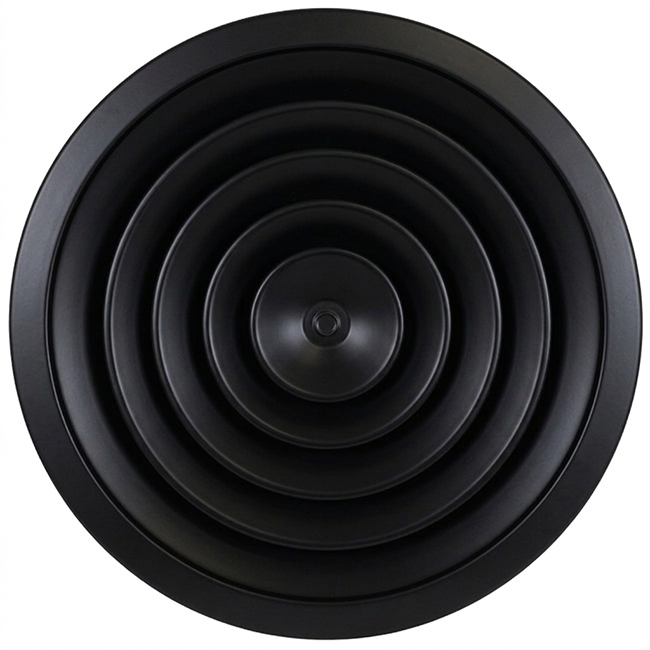

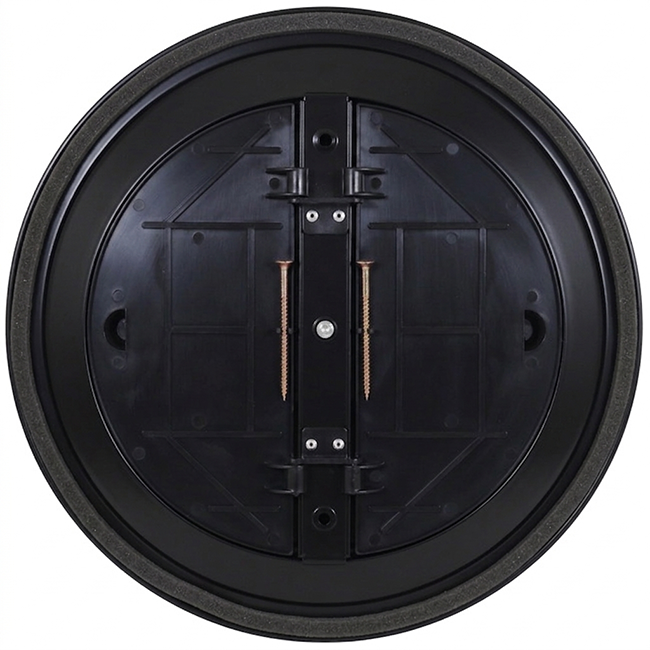

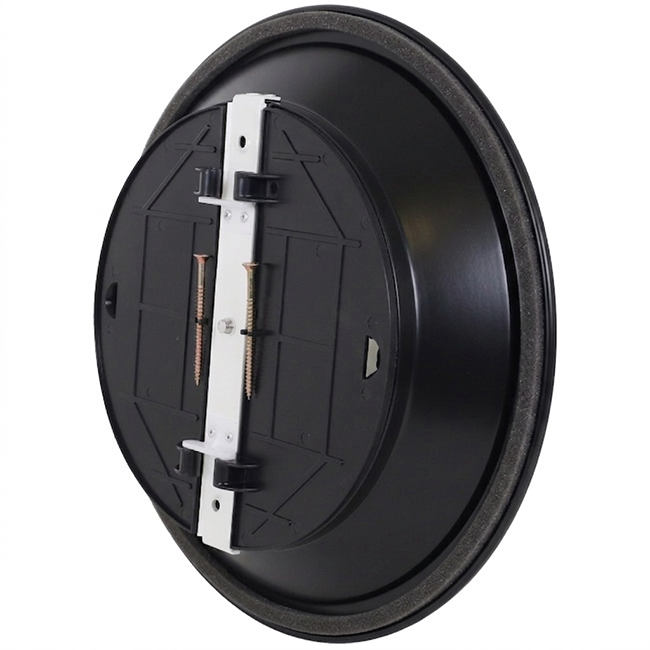

Round Ceiling Diffuser with Fixed Pattern Ø 250 mm - RAL9005 30% Gloss

This round ceiling diffuser with a diameter of 250 mm is made of aluminium and finished in RAL9005 with 30% gloss. It is used in ceiling applications where a larger volume of air needs to be distributed. The fixed pattern ensures controlled air dispersion.

Advantages and Features

Aluminium construction – dimensionally stable and corrosion-resistant.
Fixed discharge pattern – uniform air distribution without adjustable parts.
RAL9005 30% gloss – black coating with subtle satin finish.
Diameter 250 mm – suitable for higher air capacity.

Installation and Application

The diffuser can be installed directly in the ceiling or in a modular ceiling tile. The larger diameter allows for the distribution of greater air volumes over a wider area.

This ceiling diffuser provides reliable air distribution with a modern black appearance.

Brand	Econox
Category	Round ceiling grilles with fixed pattern
GTIN	8719544332356
Manufacturer's item number	76021056
Article number	76021056

Specifications

Category code	62
Material	Aluminium
Connection	Insert end
Front diameter	358 mm
With volume control	No
Without plenum	Yes
Built-in height	47 mm
Air pattern, adjustable	No
Plenum internally insulated	No
Nominal duct diameter, connection (max)	250 mm
With mounting bracket	Yes
Nominal duct diameter, connection (min)	250 mm
