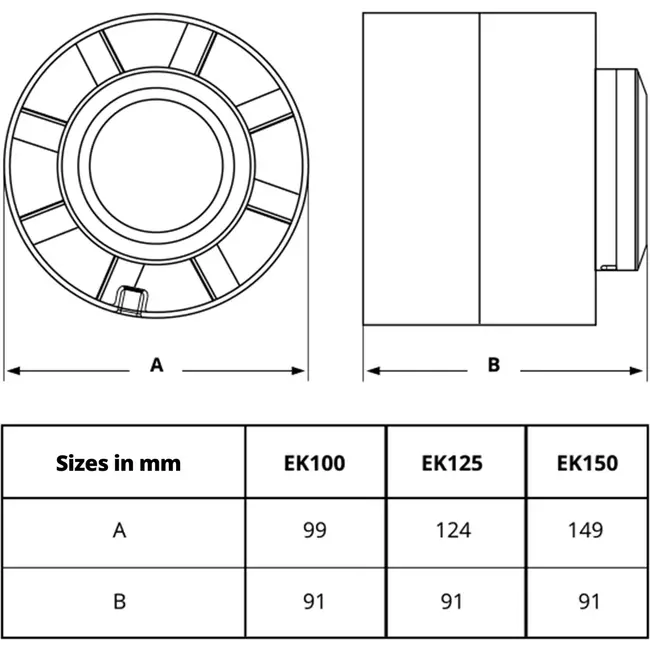

Plastic Duct Fan Ø100 mm - EK100
The EK100 is a plastic duct fan from Europlast with a diameter of 100 mm, designed for ventilating bathrooms, toilets, and other small residential spaces. You install the fan directly into the ventilation duct, where it extracts air and expels it outside through the connected duct. The fan can be easily connected to a plastic ventilation duct, spiral duct or flexible ventilation hose of 100 mm diameter.
Benefits and Features
- Compact and powerful – with an airflow of 100 m³/h, the EK100 provides effective air extraction in spaces such as bathrooms.
- Quiet operation – at a sound level of 32 dB(A) measured at 3 metres distance, the fan is hardly noticeable during use.
- Moisture resistant – thanks to the IPX4 protection rating, the fan is splash water resistant, making it suitable for humid environments.
- Lightweight – the plastic housing weighs only 0.35 kg, simplifying installation.
Quiet and efficient in practice
The motor of the EK100 runs at a power of 15 watts and 2550 revolutions per minute, moving 100 m³ of air per hour. This is sufficient for a rapid and tangible air renewal in an average bathroom. With a noise level of just 32 dB(A), the fan is barely audible during operation, even in a quiet living environment. The fan operates reliably at ambient temperatures between +5°C and +40°C.
Installation, maintenance and applications
You install the EK100 in the ventilation duct and connect it to the electrical supply. This work should always be performed by a qualified electrician, and the power to the relevant circuit must be switched off beforehand. When connecting, remove the cover cap to access the terminal blocks, then connect the fan according to the wiring diagram and correct polarity. The EK100 is also available with timer and/or ball bearing options, allowing the fan to continue running for an adjustable period of 0 to 30 minutes after switching off. Thanks to its plastic housing, the fan is lightweight, which facilitates installation.
| Brand | Europlast |
| Category | Plastic Inline extractor fans |
| GTIN | 4750492006566 |
| Manufacturer's item number | EK100 |
| Article number | 19300201 |
Specifications
| Connection diameter | 100 mm |
| Category code | 15 |
| Max. Air Volume | 100 m³/h |
| With timer | No |
| Nominal frequency | 50 Hz |
| Rated Speed | 2550 1/min |
| Nominal power consumption | 15 W |
| Nominal voltage | 230 V |
