Good points

Thermal efficiency up to 91.7%
Energy label A+
Automatic cooling with outside air
Ceiling, wall or floor mounting

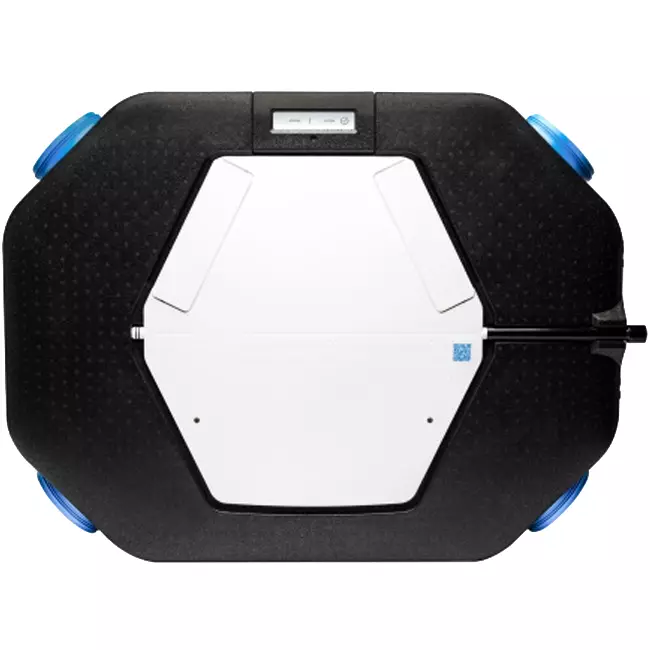

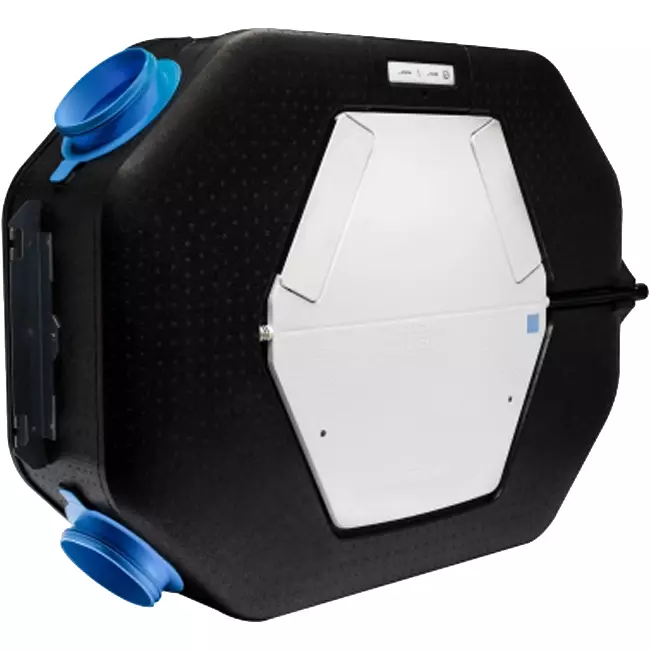

Orcon WTW HRC-260-OptiAir-Eco

The Orcon HRC-260 OptiAir Eco is a balanced ventilation system with heat recovery designed for houses and apartments. The unit operates on demand: the airflow rate automatically adjusts based on the indoor air quality, ensuring ventilation only occurs when necessary. With a thermal efficiency of 91.7% and an A+ energy label, the system recovers nearly all the heat from the extracted air and transfers it to the fresh supply air. The Eco version is the base model without a preheater, with frost protection managed through imbalance control.

Advantages and Features

Thermal efficiency of 91.7% and A+ energy label: the HRC-260 OptiAir Eco retains almost all heat from the exhaust air and returns it to the incoming fresh air, significantly reducing heating costs.

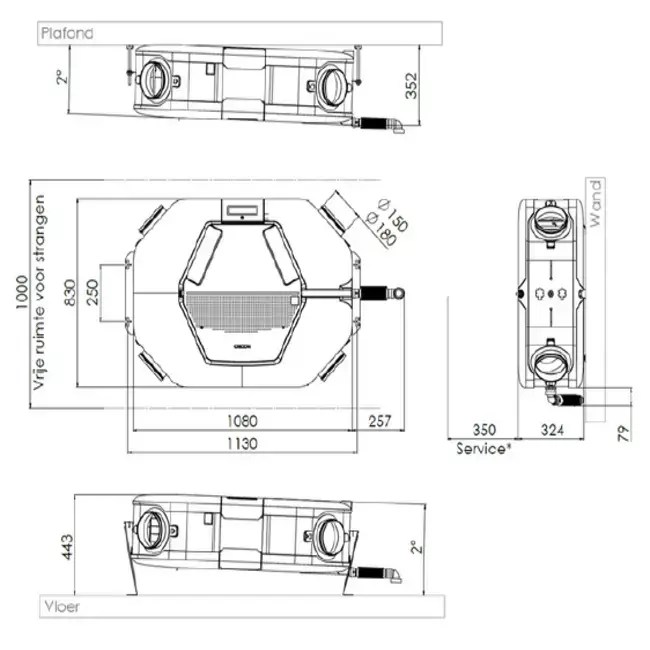

Compact size with three mounting options: the unit (1070 x 830 x 320 mm, 23 kg) can be installed on the ceiling, wall, or floor, making it suitable for any plant room or attic.
Modulating 100% bypass for passive cooling: during warm summer nights, the bypass fully opens, allowing cool outside air to enter directly without passing through the heat exchanger.
Constant volume control accurate to within 1%: the unit maintains a stable set airflow regardless of duct resistance, ensuring reliable air volume per room.
Expandable with RF controls and sensors: wirelessly connect a CO2 sensor, humidity sensor, motion sensor or remote control to further refine demand-based operation.
Reversible left and right installation: the unit can easily be converted from left-hand to right-hand configuration, providing installation flexibility for both new builds and renovations.

High Efficiency with Low Consumption

At an airflow capacity of 260 m³/h, the HRC-260 OptiAir Eco consumes a maximum of just 53 W. Thanks to constant volume control and demand-driven operation, the unit runs most of the day at low speed, which reduces both energy consumption and noise levels. The ePM1 70% filter class on the supply side keeps fine dust out, noticeably improving indoor air quality.

Installation, Maintenance and Applications

The HRC-260 OptiAir Eco is suitable for both new builds and renovations in houses and apartments. The duct connections are 4 x 160 mm, and the unit is supplied with a standard grounded power cable. Ceiling mounting is the default configuration; wall and floor mounting are possible with a separately available mounting kit. Thanks to its low weight of 23 kg, the unit can be lifted and positioned by one person. Maintenance is limited to periodic filter replacement, which can be done without removing the unit from the ceiling. The airflow per setting can be configured for the specific situation in the building via dipswitches on the control board.

Brand	Orcon
Category	All MVHR units
GTIN	8720701078352
Manufacturer's item number	22020200
Article number	19130027

Specifications

Category code	218
Housing material	Plastic
Housing material quality	Expanded polypropylene (EPP)
Material heat exchanger	Plastic
Suitable for wall mounting	Yes
Suitable for ceiling mounting	Yes
Suitable for floor mounting	Yes
Suitable for mounting in suspended ceiling	Yes
Suitable for mounting in an attic	Yes
Orientation	Left/right (reversible)
Max. air volume at 50 Pa	260 m³/h
Max. air volume at 100 Pa	260 m³/h
Max. air volume at 150 Pa	260 m³/h
Max. air volume at 200 Pa	260 m³/h
Max. air volume at 250 Pa	260 m³/h
Max. air volume at 300 Pa	260 m³/h
Sound power level according to 1254/2014/EU	45 dB(A)
Power consumption at max. air volume at 100 Pa	65 W
Thermal efficiency at 70% air volume at 50 Pa	91.7 %
Type of motor	Electronically commutated (EC)
Voltage	230 V
Frequency	50 Hz
Number of phases	1
Fuse size of the device	6 A
With thermal overload protection	No
Electrical connection	Connecting cable with plug with protective contact
Energy efficiency class according to 1253/2014/EU	A+
Type of switch	Other
With digital display	No
With wired control unit	No
Suitable for wired control unit	No
With wireless remote control	No
Suitable for wireless remote control	Yes
Supporting protocol for Modbus	Yes
Operation by app	No
With zone controller	No
Suitable for zone controller	Yes
With heating element	No
With volatile organic compound (VOC) sensor	No
Suitable for extra VOC sensor	No
With external humidity (RH) sensor	No
With internal humidity (RH) sensor	Yes
Suitable for (extra) humidity (RH) sensor	Yes
With internal carbon dioxide (CO2) sensor	No
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
Suitable for central heating boiler connection	No
With bypass	Yes
With constant pressure control	No
With constant volume flow control	Yes
Type of frost protection	Other
Nominal duct diameter (min)	160 mm
Nominal duct diameter (max)	160 mm
Number of outdoor air connections (ODA) according to EN 13141-7	1
Number of supply air connections (SUP) according to EN 13141-7	1
Number of extract air connections (ETA) according to EN 13141-7	1
Number of exhaust air connections (EHA) according to EN 13141-7	1
Connections outdoor air (ODA)	Insert end
Connections supply air (SUP)	Insert end
Connections extract air (ETA)	Insert end
Connections exhaust air (EHA)	Insert end
Supply filter according to ISO 16890-1:2016	ISO ePM1
Efficiency supply filter according to ISO 16890-1:2016	70 %
Exhaust filter according to ISO 16890-1:2016	ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016	65 %
Height	830 mm
Width	1080 mm
Depth	324 mm
Degree of protection (IP)	IP30
Weight	23.55 kg
Heat recovery by	Cross-counter-flow unit
