Good points

Brand: Orcon
360 m3/h
Energy efficient
Thermal efficiency 89%

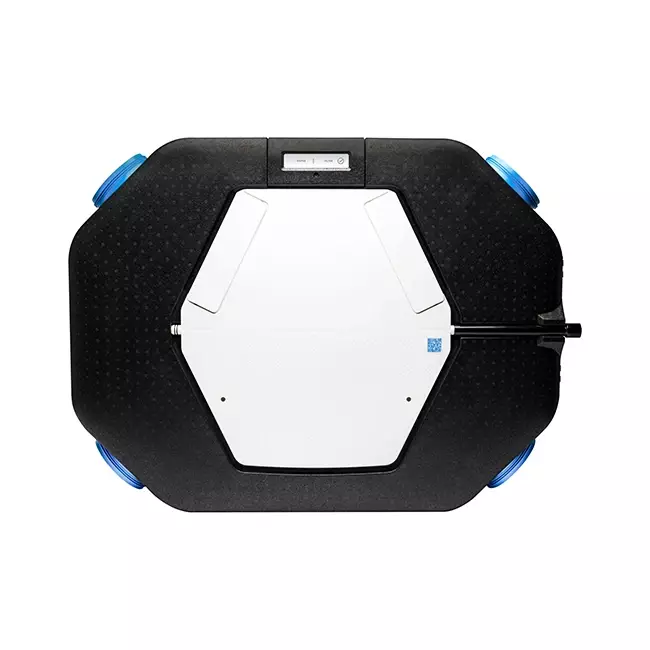

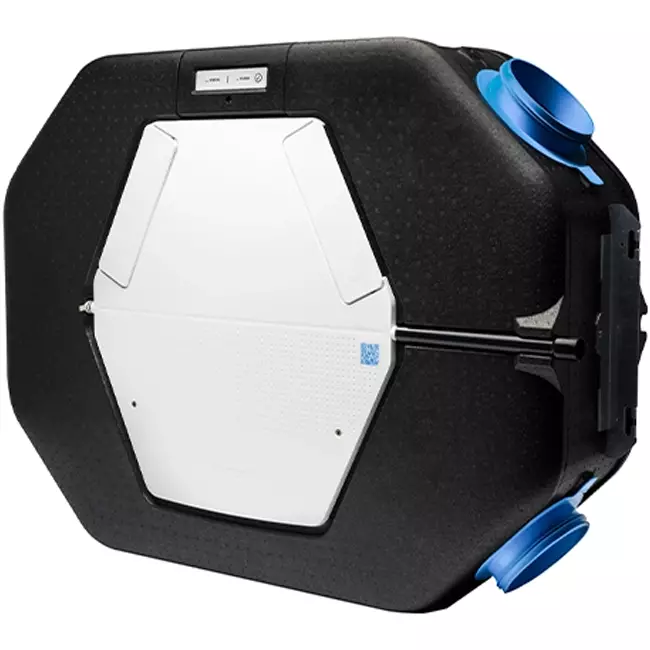

Discover smart balance ventilation: HRC OptiAir

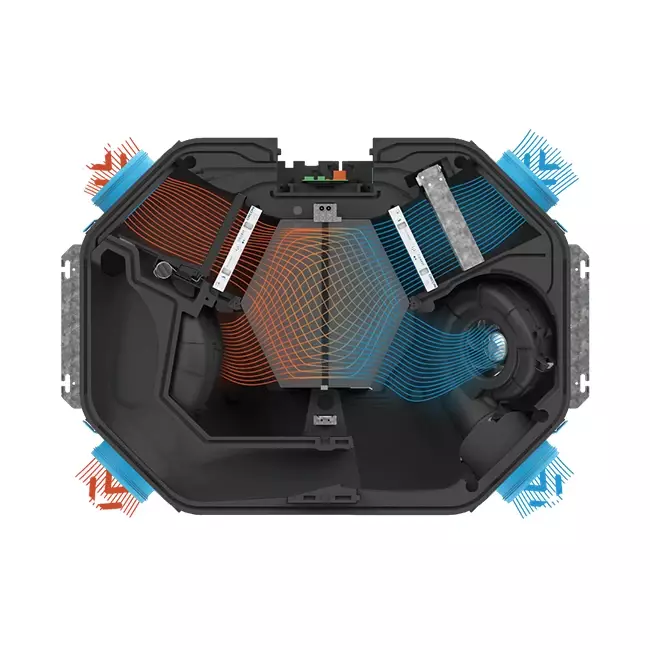

The HRC OptiAir heat recovery unit is a smart ventilation system. This innovative solution provides a perfect balance between the supply of clean air and the removal of polluted indoor air. At the same time, the heat (or coolness) of the extracted air is recovered and transferred to the supply air. With smart sensors, the OptiAir ventilates only when needed, resulting in a healthy and comfortable indoor climate at all times.

Compact and Flexible

Despite its compact size, the OptiAir is a powerful WTW that easily fits into even the tightest spaces whether it is between the ceiling, on the wall or on the floor. The wide range of applications makes the HRC OptiAir ideally suited for both renovations and new construction projects.

Easy installation

With both left and right-handed options and multiple connection options, the Orcon HRC OptiAir ensures quick and easy installation for installers. In addition, weighing only 23 kg, the OptiAir is easy to lift by one person.

Extra comfort en gemak

Increase comfort and convenience even further by expanding the HRC OptiAir with the Orcon Smartzone control and/or a control from the range of Orcon RF controls and sensors. This wireless (demand) control not only provides an ideal user experience but also prevents unnecessary ventilation.

The main features:

Compact unit for ceiling, wall and floor mounting
Generous capacity of 260 m/h at 200 Pa (HRC-260-OptiAir) and 360 m³/h y 200 Pa (HRC-360-OptiAir)
Left & right interchangeable
With built-in moisture sensor

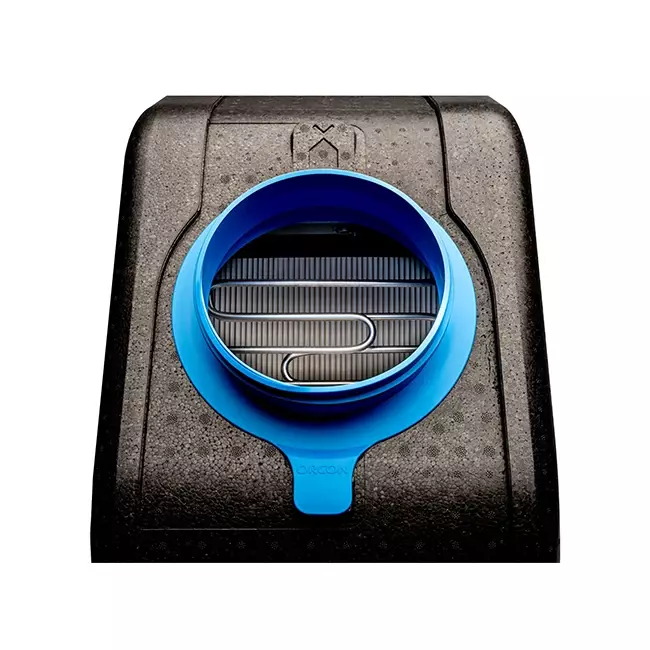

With built-in pre-heater
Constant volume control, accurate to 1%
Passive cooling: 100% bypass and cold recovery
Wireless RF communication with controls and sensors
Insulating EPP housing

Note! The dry siphon is already included in the box as standard.

Brand	Orcon
Category	All MVHR units
GTIN	8720701074521
Manufacturer's item number	22020360
Article number	19220041

Specifications

Category code	218
Heat recovery by	Cross-counter-flow unit
Housing material	Plastic
Housing material quality	Expanded polypropylene (EPP)
Material heat exchanger	Plastic
Suitable for wall mounting	Yes
Suitable for ceiling mounting	Yes
Suitable for floor mounting	Yes
Suitable for mounting in suspended ceiling	Yes
Suitable for mounting in an attic	Yes
Left/right orientation reversible	Yes
Max. air volume at 50 Pa	360 m³/h
Max. air volume at 100 Pa	360 m³/h
Max. air volume at 150 Pa	360 m³/h
Max. air volume at 200 Pa	360 m³/h
Max. air volume at 250 Pa	360 m³/h
Max. air volume at 300 Pa	360 m³/h
Power consumption at max. air volume at 100 Pa	108 W
Thermal efficiency at 70% air volume at 50 Pa	89 %
Type of motor	Electronically commutated (EC)
Voltage	230 V
Frequency	50 Hz
Number of phases	1
Fuse size of the device	6 A
With thermal overload protection	Yes
Electrical connection	Connecting cable with plug with protective contact
Energy efficiency class according to 1253/2014/EU	A
Type of switch	Other
With digital display	No
With wired control unit	No
Suitable for wired control unit	No
With wireless remote control	No
Suitable for wireless remote control	Yes
Supporting protocol for Modbus	Yes
Operation by app	No
With zone controller	No
Suitable for zone controller	Yes
With heating element	Yes
With volatile organic compound (VOC) sensor	No
Suitable for extra VOC sensor	No
With external humidity (RH) sensor	No
With internal humidity (RH) sensor	Yes
Suitable for (extra) humidity (RH) sensor	Yes
With internal carbon dioxide (CO2) sensor	No
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
Suitable for central heating boiler connection	No
With bypass	Yes
With constant pressure control	No
With constant volume flow control	Yes
Type of frost protection	Heating element
Nominal duct diameter (min)	180 mm
Nominal duct diameter (max)	180 mm
Connections outdoor air side	Insert end
Connections residential side	Insert end
Residential connection, underside	No
Residential connection, left side	Yes
Residential connection, right side	Yes
Residential connection, top	Yes
Roof connection, side	Yes
Roof connection, top	Yes
Supply filter according to ISO 16890-1:2016	ISO ePM1
Efficiency supply filter according to ISO 16890-1:2016	70 %
Exhaust filter according to ISO 16890-1:2016	ISO Coarse
Efficiency exhaust filter according to ISO 16890-1:2016	65 %
Height	830 mm
Width	1080 mm
Depth	324 mm
Degree of protection (IP)	IP30
Weight	22 kg
Energy label	A
Connection type	connection left right
With enthalpy exchanger	No
Plug type	Euro plug
