Good points

Compactest fan on the market
Built-in moisture sensor standard
Quietest in its class
Expandable with RF sensors

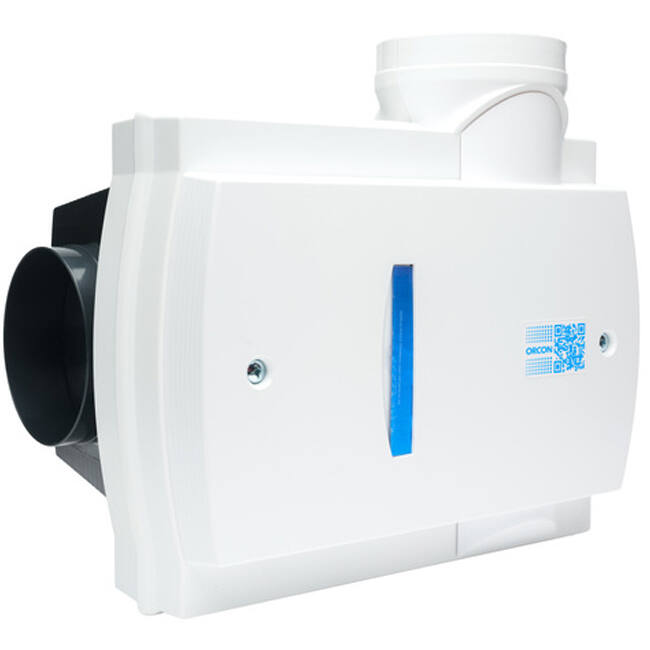

Orcon Compact-10RH

The Orcon Compact-10RH is a mechanical domestic ventilation unit with a built-in humidity sensor, designed for replacement and renovation in existing homes. The unit detects moisture increases within the property and automatically activates, ensuring enhanced ventilation precisely when needed. With dimensions of 360 x 280 x 278 mm, it is the most compact domestic ventilation unit in its class and fits even the tightest installation spaces.

Advantages and Features

Built-in humidity sensor: continuously measures indoor humidity and automatically switches the unit to a higher ventilation setting during rapid moisture increases, such as after showering or cooking.
Most compact unit in its class: with a depth of only 27.8 cm, the Compact-10RH fits into installation situations where other units do not, greatly simplifying renovation and replacement projects.
Expandable to full demand control: add wireless CO2 sensors, humidity sensors, or motion sensors via RF without extra fixed wiring to upgrade the energy label to B.
Flexible connection options: four ø125 mm connection ports, including a rear duct connection for direct wall mounting, provide installation flexibility across diverse building scenarios.
Up to 40 configurable settings: adjust airflow rates per ventilation mode precisely using DIP switches on the circuit board to suit the specific housing situation.
Low maintenance and easy to clean: the front bayonet lock allows quick access to the unit for inspection or cleaning without tools.

Quiet, compact and reliable

The Compact-10RH achieves a maximum airflow of 355 m³/h at 100 Pa and 320 m³/h at 200 Pa, sufficient for complete mechanical ventilation of a standard family home. Thanks to its upgraded motor, the unit is the quietest domestic ventilator in its class, directly enhancing living comfort. Weighing only 3.5 kg, it can be easily lifted and positioned by one person.

Installation, Maintenance and Applications

The Compact-10RH is ideally suited for replacing outdated ventilation systems in existing homes. The unit is mounted to a wall or ceiling using the four supplied screws and plugs. The mains cable with earth connection plugs into a standard wall socket. All ventilation modes can be set via DIP switches, offering up to 40 combinations tailored to the property’s requirements. Should you wish to upgrade later to demand-controlled operation using CO2 or humidity sensors, these can be wirelessly connected via RF without modifying the existing wiring. Maintenance is limited to periodic cleaning, facilitated by quick access through the bayonet lock.

Brand	Orcon
Category	All mechanical ventilation systems
GTIN	08720701072718
Manufacturer's item number	21100070
Article number	19130029

Specifications

Category code	10
Max. air volume at 50 Pa	380 m³/h
Max. air volume at 100 Pa	355 m³/h
Max. air volume at 150 Pa	320 m³/h
Max. air volume at 200 Pa	280 m³/h
Max. air volume at 250 Pa	225 m³/h
Power consumption at max. air volume at 100 Pa	80 W
Frequency supply voltage (min)	50 Hz
Frequency supply voltage (max)	60 Hz
Supply voltage (min)	220 V
Supply voltage (max)	240 V
Max. nominal current	0.8 A
Sound power level	51 dB(A)
Type of motor	Electronically commutated (EC)
Electrical connection	Connecting cable with plug with protective contact
Energy efficiency class	E
Control signal	PWM (pulse-width-modulated)
Type of speed control	3 positions
Type of switch	Other
With wireless remote control	No
Suitable for wireless remote control	Yes
With wired control unit	No
Suitable for wired control unit	No
Suitable for requirement-controlled ventilation	Yes
With internal humidity (RH) sensor	Yes
With external humidity (RH) sensor	No
Suitable for (extra) humidity (RH) sensor	No
With internal carbon dioxide (CO2) sensor	No
With external carbon dioxide (CO2) sensor	No
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
Detects volatile organic compounds	No
With pressure sensor	No
Suitable for (extra) pressure sensor	No
With constant volume flow control	No
With zone controller	No
Suitable for zone controller	No
Operation by app	No
With movement sensor	No
Suitable for movement sensor	Yes
Sensor controlled air flow	No
Number of suction connections	4
Max. number of wet zones	4
Connection	Insert end
Nominal duct diameter suction side	125 mm
Nominal duct diameter exhaust air	125 mm
Nominal duct diameter sanitary connections	125 mm
Nominal duct diameter kitchen connections	125 mm
Suitable for wall mounting	Yes
Suitable for ceiling mounting	Yes
Suitable for mounting in suspended ceiling	Yes
Suitable for mounting in an attic	Yes
Suitable for floor mounting	Yes
Suitable for suspended mounting	Yes
Horizontal mounting	Yes
Vertical mounting	Yes
Rear connection	Yes
Depth	335 mm
Height	280 mm
Width	360 mm
Weight	3.77 kg
Housing material	Plastic
