Good points

Built-in moisture and CO2 control
Energy label B standard
Compactest fan on the market
2x CO2 sensor included directly

Orcon Compact-10RH + 2x CO2 sensor

The Orcon Compact-10RH + 2x CO2 sensor is a mechanical residential ventilation unit with integrated demand control based on humidity and CO2 levels. Designed for renovation and replacement in existing homes, it ventilates automatically according to the current indoor air quality. The built-in humidity sensor detects rises in moisture and immediately activates the system. The two included CO2 sensors measure air quality in different rooms and regulate airflow only when truly necessary.

Advantages and Features

Most compact dimensions in its class: with measurements of 360 x 280 x 278 mm, the unit fits even in the tightest installation spaces, greatly simplifying renovation and replacement in existing homes.
Integrated humidity sensor: continuously measures air humidity and automatically switches to a higher ventilation level during rapid moisture increases, for example after showering or cooking.
2x CO2 sensors included as standard: the CO2 control sensor 15RF and CO2 room sensor 15RF are supplied and provide demand control based on CO2 concentration across multiple rooms simultaneously.
Energy label B: thanks to combined humidity and CO2 control, the system ventilates at increased capacity only when truly required, resulting in significantly lower energy consumption compared to non-demand-controlled systems.
Wireless RF communication: both sensors connect wirelessly to the unit, eliminating the need for additional fixed wiring to the sensors.
Low maintenance and easy to clean: the bayonet lock at the front allows quick opening of the unit for inspection or cleaning, without tools.

Powerful Ventilation at the Right Time

The Compact-10RH 2x CO2 delivers a maximum airflow of 355 m³/h at 100 Pa and 320 m³/h at 200 Pa, sufficient for a standard family home. Because the system is demand-controlled, the fan only operates at increased capacity when moisture or CO2 levels require it. In practice, this means the fan runs quietly and energy-efficiently in the background for the majority of the day. When more air exchange is needed, the system responds automatically without manual intervention. Thanks to the combined control, the unit achieves energy label B.

Installation, Maintenance and Applications

The Compact-10RH + 2x CO2 sensor is ideally suited for renovation and replacement of outdated mechanical ventilation systems in existing homes. The unit is mounted with four supplied screws to a wall or ceiling. Four connection openings of ø125 mm offer flexibility when connecting ductwork, including a rear connection for direct wall mounting. The two CO2 sensors are paired wirelessly via the RF connection. The fan airflow can be precisely adjusted for each setting via DIP switches on the circuit board, tailored to the specific situation in the home. The unit requires minimal maintenance due to the limited number of components.

Brand	Orcon
Category	All mechanical ventilation systems
GTIN	8719544339812
Manufacturer's item number	19130026
Article number	19130026

Specifications

Category code	9000
Housing material	Plastic
Max. air volume at 50 Pa	390 m³/h
Max. air volume at 100 Pa	355 m³/h
Max. air volume at 150 Pa	320 m³/h
Max. air volume at 200 Pa	280 m³/h
Max. air volume at 250 Pa	225 m³/h
Power consumption at max. air volume at 100 Pa	80 W
Frequency supply voltage (min)	50 Hz
Frequency supply voltage (max)	60 Hz
Supply voltage (min)	220 V
Supply voltage (max)	240 V
Max. nominal current	0.8 A
Sound power level	51 dB(A)
Type of motor	Electronically commutated (EC)
Electrical connection	Connecting cable with plug with protective contact

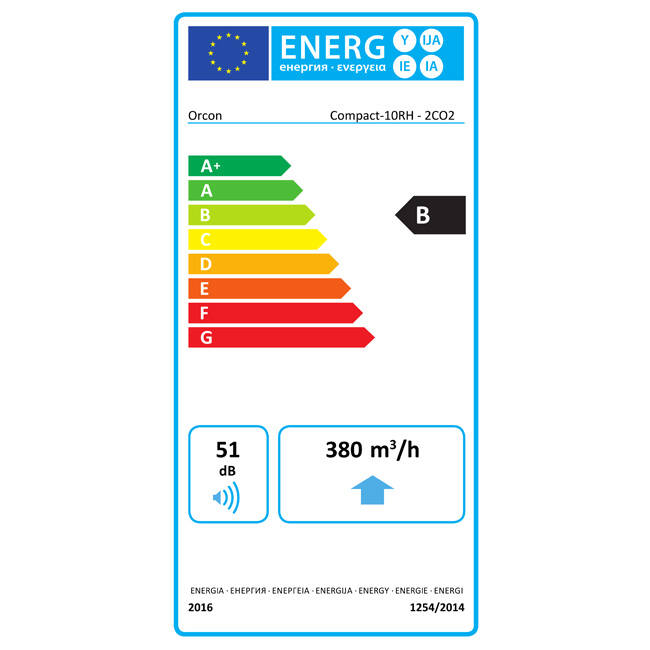

Energy efficiency class	B
Control signal	PWM (pulse-width-modulated)
Type of speed control	3 positions
Type of switch	Other
With wireless remote control	Yes
Suitable for wireless remote control	Yes
With wired control unit	No
Suitable for wired control unit	Yes
Suitable for requirement-controlled ventilation	Yes
With internal humidity (RH) sensor	Yes
With external humidity (RH) sensor	No
Suitable for (extra) humidity (RH) sensor	Yes
With internal carbon dioxide (CO2) sensor	No
With external carbon dioxide (CO2) sensor	Yes
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
Detects volatile organic compounds	No
With pressure sensor	No
Suitable for (extra) pressure sensor	No
With constant volume flow control	No
With zone controller	No
Suitable for zone controller	No
Operation by app	No
With movement sensor	No
Suitable for movement sensor	Yes
Sensor controlled air flow	Yes
Number of suction connections	4
Connection	Duct end
Nominal duct diameter suction side	125 mm
Nominal duct diameter exhaust air	125 mm
Nominal duct diameter sanitary connections	125 mm
Suitable for wall mounting	Yes
Suitable for ceiling mounting	Yes
Suitable for mounting in suspended ceiling	No
Suitable for mounting in an attic	Yes
Suitable for floor mounting	No
Suitable for suspended mounting	No
Horizontal mounting	Yes
Vertical mounting	Yes
Rear connection	Yes
Depth	278 mm
Height	280 mm
Width	360 mm
Weight	3.5 kg
