Motorized shut-off valve with spring return for ROTO K / RHE 4200 V - MAK R 4200 V02

Motorized shut-off valve with spring return for ROTO K / RHE 4200 V - MAK R 4200 V02
Motorized shut-off valve with spring return for ROTO K / RHE 4200 V - MAK R 4200 V02
Motorized shut-off valve with spring return for ROTO K / RHE 4200 V - MAK R 4200 V02
Motorized shut-off valve with spring return for ROTO K / RHE 4200 V - MAK R 4200 V02
-35%
RRP 2,009.40
1,306.12 -35%
You'll save 703.28
Delivery time: 5 weeks
  • The largest collection in the United Kingdom
  • 100 day return period
  • Customer review 9/10
  • Safe shopping with Trustedshops

Pay safe and fast with:

  • Creditcard
  • PayPal
  • Apple Pay

Good points

  • Galvanized steel
  • Open-close, with spring return
  • 230 V Servomotor, 4 Nm
  • Air Tightness Class EN1751 - 2

Motorised Shut-Off Valve with Spring Return for ROTO K / RHE 4200 V - MAK R 4200 V02

The MAK R 4200 V02 is an insulated motorised shut-off valve, designed for use in combination with the ROTO K and RHE 4200 V air handling units. The valve is constructed from galvanized steel sheet and equipped with an actuator featuring a spring return function. This actuator operates on 230 V and provides a torque of 4 Nm. The spring return ensures the valve automatically closes in the event of a power failure, contributing to a safe and reliable installation.


Main Features

  • Motorised Shut-Off Valve: Ensures secure air sealing during power outages.
  • Material: Insulated version made of galvanized steel sheet.
  • Control: Open/close operation with automatic return via spring mechanism.
  • Actuator: 230 V, 4 Nm.

Application

Suitable as supply or exhaust valve in combination with the ROTO K and RHE 4200 V air handling units.

Brand Ruck ventilatoren GmbH
Category Motorised shut-off valve
GTIN 4061199028127
Manufacturer's item number 145596
Article number 65145596

Specifications

Category code 35
Material Steel
Surface protection Other

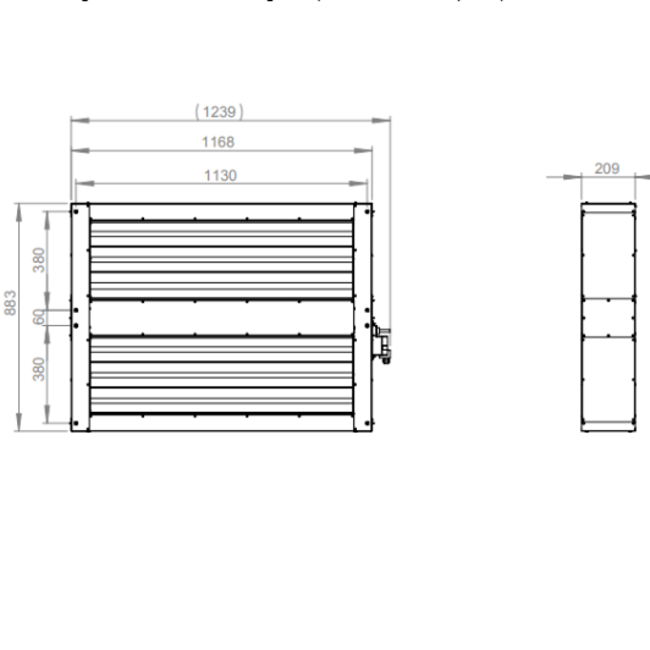

Nominal duct width 1100 mm
Nominal duct height 350 mm
Connection 1 Duct end
Connection 2 Duct end
Lacquered No
Control side, right Yes
Control side, left No
Operation Electromotor 230 V
Can be used on solid walls/floors No
Can be used directly against walls/floors No
Can be used in separating partitions No
Can be used at a distance from walls No
Length 209 mm
