Motorized shut-off valve with spring return for ROTO K / RHE 2800 V - MAK R 2800 V02

Motorized shut-off valve with spring return for ROTO K / RHE 2800 V - MAK R 2800 V02
Motorized shut-off valve with spring return for ROTO K / RHE 2800 V - MAK R 2800 V02
Motorized shut-off valve with spring return for ROTO K / RHE 2800 V - MAK R 2800 V02
Motorized shut-off valve with spring return for ROTO K / RHE 2800 V - MAK R 2800 V02
-35%
RRP 1,586.02
1,030.91 -35%
You'll save 555.11
Delivery time: 5 weeks
  • The largest collection in the United Kingdom
  • 100 day return period
  • Customer review 9/10
  • Safe shopping with Trustedshops

Pay safe and fast with:

  • Creditcard
  • PayPal
  • Apple Pay

Good points

  • Galvanized steel
  • Open-close, with spring return
  • 230 V Servomotor, 4 Nm
  • Air Tightness Class EN1751 - 2

Motorised Shut-off Damper with Spring Return for ROTO K / RHE 2800 V - MAK R 2800 V02

The MAK R 2800 V02 is an insulated motorised shut-off damper, designed for use in combination with the ROTO K and RHE 2800 V air handling units. The damper is made of galvanised steel sheet and features an actuator with a spring return function. This actuator operates on 230 V and delivers a torque of 4 Nm. The spring return ensures the damper automatically closes during a power failure, contributing to a safe and reliable installation.


Key Features

  • Motorised Shut-off Damper: Ensures secure air sealing in case of power loss.
  • Material: Insulated version made from galvanised steel sheet.
  • Control: Open/close operation with automatic return via spring mechanism.
  • Actuator: 230 V, 4 Nm.

Application

Suitable as a supply or exhaust damper in combination with the ROTO K and RHE 2800 V air handling units.

Brand Ruck ventilatoren GmbH
Category Motorised shut-off valve
GTIN 4061199028103
Manufacturer's item number 145540
Article number 65145540

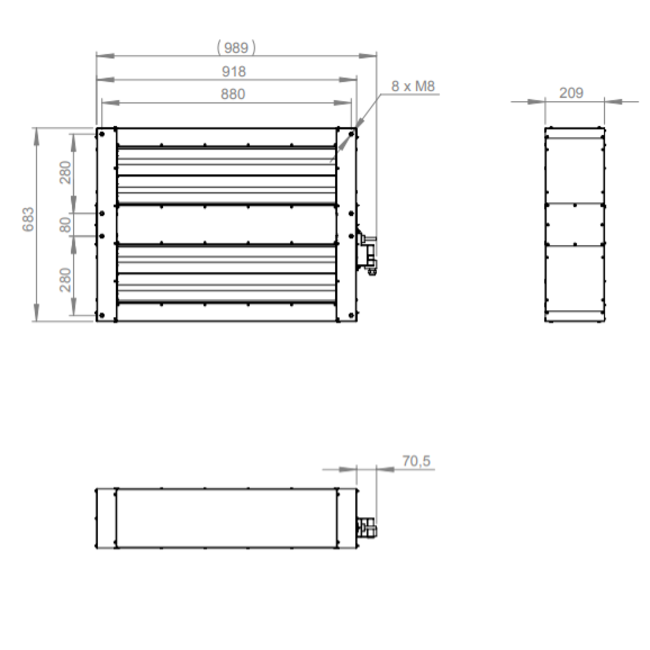

Specifications

Category code 35
Material Steel
Surface protection Other
Nominal duct width 800 mm
Nominal duct height 250 mm
Connection 1 Duct end
Connection 2 Duct end
Lacquered No
Control side, right Yes
Control side, left No
Operation Electromotor 230 V
Can be used on solid walls/floors No
Can be used directly against walls/floors No
Can be used in separating partitions No
Can be used at a distance from walls No
Length 209 mm
