Motorized shut-off valve with spring return for ROTO K / RHE 4200 V - MAK R 4200 V01

Motorized shut-off valve with spring return for ROTO K / RHE 4200 V - MAK R 4200 V01
Motorized shut-off valve with spring return for ROTO K / RHE 4200 V - MAK R 4200 V01
Motorized shut-off valve with spring return for ROTO K / RHE 4200 V - MAK R 4200 V01
Motorized shut-off valve with spring return for ROTO K / RHE 4200 V - MAK R 4200 V01
-35%
RRP 2,179.88
1,416.92 -35%
You'll save 762.96
Delivery time: 5 weeks
  • The largest collection in the United Kingdom
  • 100 day return period
  • Customer review 9/10
  • Safe shopping with Trustedshops

Pay safe and fast with:

  • Creditcard
  • PayPal
  • Apple Pay

Good points

  • Galvanized steel
  • Open-close, with spring return
  • Servomotor 230 V, 4 Nm
  • Air Tightness Class EN1751 - 2

Motorised Shut-Off Damper with Spring Return for ROTO K / RHE 4200 V - MAK R 4200 V01

The MAK R 4200 V01 is an insulated motorised shut-off damper, designed for use in conjunction with the ROTO K and RHE 4200 V air handling units. The damper is made from galvanized steel sheet and equipped with an actuator featuring a spring return function. This actuator operates on 230 V and delivers a torque of 4 Nm. The spring return ensures the damper automatically closes in the event of a power failure, contributing to a safe and reliable installation.


Key Features

  • Motorised Shut-Off Damper: Provides secure air sealing during power loss.
  • Material: Insulated version made from galvanized steel sheet.
  • Control: Open/close operation with automatic spring return mechanism.
  • Actuator: 230 V, 4 Nm torque.

Application

Suitable as supply or exhaust damper in combination with the ROTO K and RHE 4200 V air handling units.

Brand Ruck ventilatoren GmbH
Category Motorised shut-off valve
GTIN 4061199028110
Manufacturer's item number 145594
Article number 65145594

Specifications

Category code 35
Material Steel
Surface protection Other

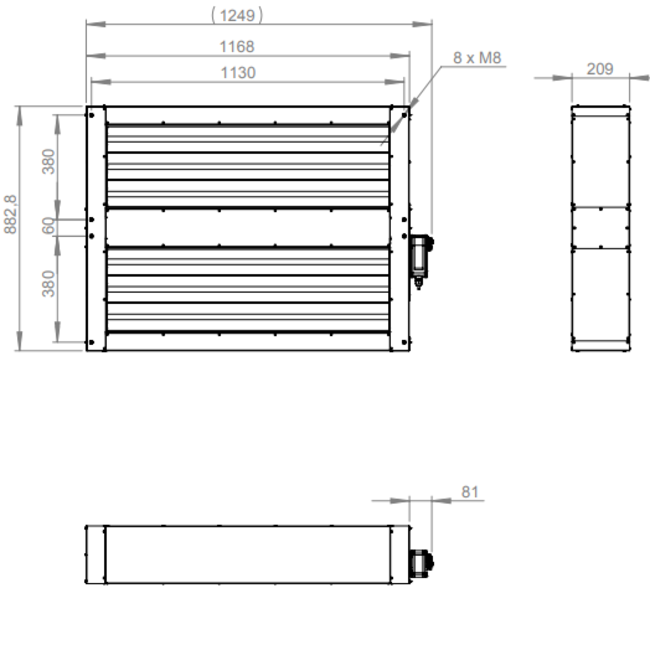

Nominal duct width 1100 mm
Nominal duct height 350 mm
Connection 1 Duct end
Connection 2 Duct end
Lacquered No
Control side, right Yes
Control side, left No
Operation Electromotor 230 V
Can be used on solid walls/floors No
Can be used directly against walls/floors No
Can be used in separating partitions No
Can be used at a distance from walls No
Length 209 mm
