In stock
3.95
Item number: 20051152
Complete your order
RRP 629.47
409.15
-35%
Delivery time: 5 weeks
- The largest collection in the United Kingdom
- 100 day return period
- Customer review 9/10
- Safe shopping with Trustedshops
Pay safe and fast with:
Good points
- Brand: Ruck fans
- AC motor
- Up to 3300 m3/h
- 3 speeds

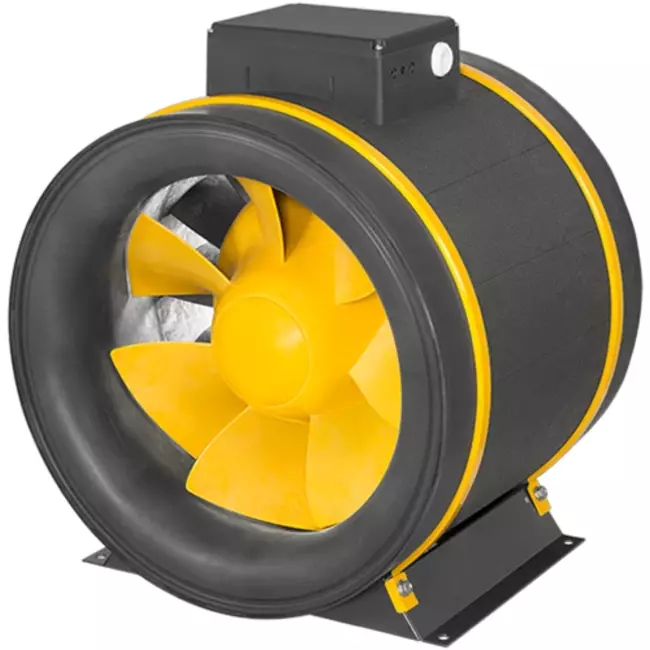

Ruck® Etamaster inline tube fan
The Ruck® ETAMASTER inline tube fan (EM M series) can be operated with an on/off switch or variable speed control, depending on the model. The Etamaster inline tube fan from Ruck® can be mounted directly on a tube, but we recommend the corresponding Ruck® fast clamp to reduce vibrations and noise through the duct.
The Etamaster has a built-in thermal switch to prevent burn out. In addition, the inline tube fan is equipped with a Mixed-Flow impeller with stator, as a result of which the fan will still produce a low sound level at a high flow rate. The EM M series is available with capacities ranging from 124 m3/h to a maximum of 3180 m3/h and with diameters ranging from 100 mm to a maximum of 315 mm respectively.
Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of inline tube fans. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.
- With plastic housing
- Built-in thermal switch
- Mixed-Flow impeller with stator
| Brand | Ruck ventilatoren GmbH |
| Category | Ruck ETAMASTER Inline extractor fans |
| GTIN | 4061199015202 |
| Manufacturer's item number | 129165 |
| Article number | 65129165 |
Specifications
| Connection diameter | 400 mm |
| Number of phases | 1~ |
| Number of poles | 4 |
| Control | On/Off, Potentiometer |
| Type of motor control | 36925 |
| Category code | 35 |
| Capacitor µ | 7 µF |
| Capacitor Voltage | 450 V |
| Weight | 15.7 kg |
| IP Complete Unit | IPX4 |
| IP Terminal Box | IP44 |
| IP Motor | IP00 |
| Insulation Class Motor | F |
| Max. Operating Current | 1 A |
| Max. pressure | 270 Pa |
| Max. Air Volume | 3300 m³/h |
| Max. Current Consumption | 1 A |
| Max. power consumption | 211 W |
| Max. Static Efficiency | 47.2 % |
| Max. allowed Medium Temperature | 60 °C |
| Max. allowed Medium Temperature at Rated Current | 60 °C |
| Max. allowed Ambient Temperature | 60 °C |
| Max. allowed Ambient Temperature at Rated Current | 60 °C |
| Max. number of revolutions | 1440 1/min |
| Max. Total Efficiency | 51 % |
| With timer | No |
| Min. allowed Voltage | 230 V |
| Min. Operating Temperature | -25 °C |
| Motor Protection | TAI |
| Motor type | 1~ |
| Nominal frequency | 50 Hz |
| Rated Speed | 1410 1/min |
| Nominal power consumption | 211 W |
| Nominal voltage | 230 V |
| Nominal current | 0.95 A |
