Good points
- AC motor
- Speed adjustable
- Brand: Ruck fans
- Up to 2360 m3/h

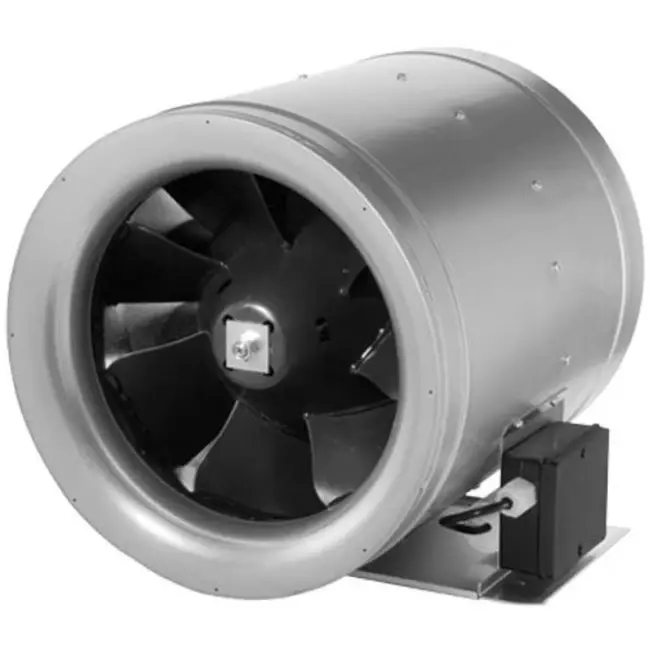

Ruck® Etaline inline tube fan with controllable voltage
The Ruck® ETALINE inline tube fan with controllable voltage (EL E series) has an energy-efficient motor that can be operated with a Ruck® 5-step transformer. The Etaline inline tube fan is supplied including mounting brackets and can be mounted directly on a tube. However, we recommend the corresponding Ruck® fast clamp to reduce vibrations and noise through the duct.
The Etaline with controllable voltage is a powerful fan and 50% more economical compared to other inline tube fans and has a built-in thermal switch to prevent burn out. In addition, the inline tube fan is equipped with a Mixed-Flow impeller with stator, as a result of which the fan will still produce a low sound level at a high flow rate. The EL E series is available with capacities ranging from 770 m3/h to a maximum of 13940 m3/h and with diameters ranging from 150 mm to a maximum of 630 mm respectively.
Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of energy-efficient inline tube fans with controllable voltage. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.
- Including mounting brackets
- Built-in thermal switch
- With adjustable speed
- Metal housing, galvanised
- Mixed-Flow impeller with stator
| Brand | Ruck ventilatoren GmbH |
| Category | Ruck Etaline Inline extractor fans |
| GTIN | 4061199007986 |
| Manufacturer's item number | 117010 |
| Article number | 65117010 |
Specifications
| Connection diameter | 315 mm |
| Number of phases | 1~ |
| Number of poles | 2 |
| Control | On/Off, Transformer |
| Type of motor control | V |
| Category code | 35 |
| Capacitor µ | 8 µF |
| Capacitor Voltage | 450 V |
| Weight | 8.4 kg |
| IP Complete Unit | IPX4 |
| IP Terminal Box | IP44 |
| IP Motor | IP00 |
| Insulation Class Motor | F |
| Max. Operating Current | 1.64 A |
| Max. pressure | 580 Pa |
| Max. Air Volume | 2360 m³/h |
| Max. Current Consumption | 1.64 A |
| Max. power consumption | 270 W |
| Max. Static Efficiency | 50.8 % |
| Max. allowed Medium Temperature | 55 °C |
| Max. allowed Medium Temperature at Rated Current | 80 °C |
| Max. allowed Ambient Temperature | 55 °C |
| Max. allowed Ambient Temperature at Rated Current | 80 °C |
| Max. number of revolutions | 2905 1/min |
| Max. Total Efficiency | 55 % |
| With timer | No |
| Min. allowed Voltage | 80 V |
| Min. Operating Temperature | -25 °C |
| Motor Protection | TMI |
| Motor type | 1~ |
| Nominal frequency | 50 Hz |
| Rated Speed | 2810 1/min |
| Nominal power consumption | 270 W |
| Nominal voltage | 230 V |
| Nominal current | 1.21 A |
| Blocked current | 4.5 A |
