Inline tube fan 150mm mixed-flow ETAMASTER - EM 150 E2 02

Brand: Ruck ventilatoren GmbH

-35%

Complete your order

Ruck® fast clamp - 2 pieces diameter 150mm - VM 150

13.31

RRP 96.28

62.58 -35%

You'll save 33.70

In stock

The largest collection in the United Kingdom
100 day return period
Customer review 9/10
Safe shopping with Trustedshops

Pay safe and fast with:

Good points

Brand: Ruck fans
AC motor
Up to 270 m3/h

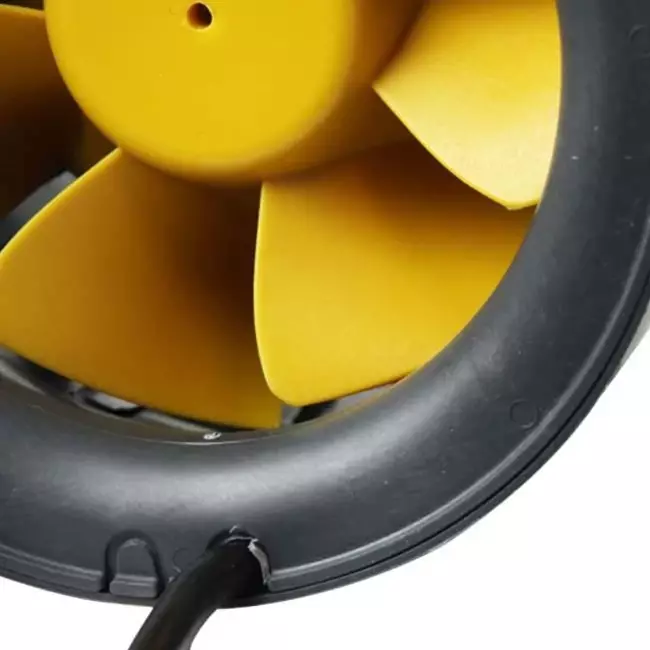

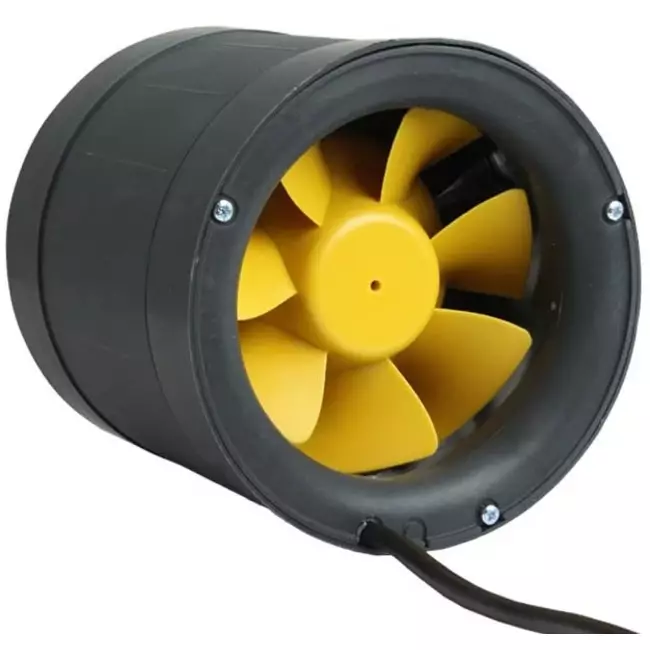

Ruck® Etamaster inline tube fan

The Ruck® ETAMASTER inline tube fan (EM E series) can be operated with an on/off switch. The Etamaster inline tube fan from Ruck® can be mounted directly on a tube, but we recommend the corresponding Ruck® fast clamp to reduce vibrations and noise through the duct.

The Etamaster has a built-in thermal switch to prevent burn out. In addition, the inline tube fan is equipped with a Mixed-Flow impeller with stator, as a result of which the fan will still produce a low sound level at a high flow rate. The EM M series is available with capacities ranging from 124 m3/h to a maximum of 3180 m3/h and with diameters ranging from 100 mm to a maximum of 315 mm respectively.

Ruck ventilatoren GmbH, is a leading German company with more than 25 years of experience. They are market leaders in the field of inline tube fans. With more than 300 enthusiastic employees, they work together on new developments and techniques on a daily basis. The company ensures quality assurance in order to deliver a great product with the latest ERP (Energy Related Product) requirements.

With plastic housing
Built-in thermal switch

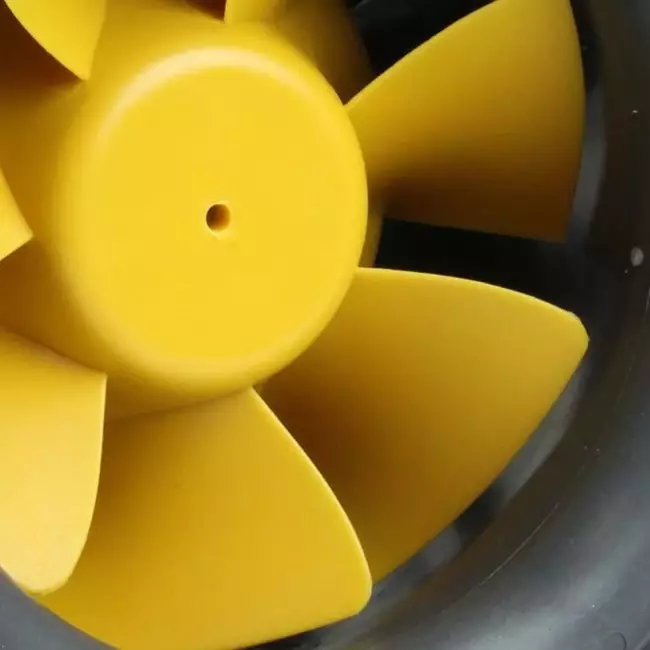

Mixed-Flow impeller with stator

Brand	Ruck ventilatoren GmbH
Category	Ruck ETAMASTER Inline extractor fans
GTIN	4061199023160
Manufacturer's item number	136417
Article number	65136417

Specifications

Connection diameter	150 mm
Number of phases	1~
Number of poles	2
Control	On/Off
Category code	35
Weight	0.98 kg
IP Motor	IP00
Insulation Class Motor	F
Max. Operating Current	0.29 A
Max. pressure	125 Pa
Max. Air Volume	270 m³/h
Max. Current Consumption	0.29 A
Max. power consumption	29 W
Max. Static Efficiency	10 %
Max. allowed Medium Temperature	40 °C
Max. allowed Medium Temperature at Rated Current	50 °C
Max. allowed Ambient Temperature	40 °C
Max. allowed Ambient Temperature at Rated Current	50 °C
Max. number of revolutions	2600 1/min
Max. Total Efficiency	10.6 %
With timer	No
Min. Operating Temperature	-25 °C
Motor Protection	TAI
Motor type	Gap pole
Nominal frequency	50 Hz
Rated Speed	2520 1/min
Nominal power consumption	29 W
Nominal voltage	230 V
Nominal current	0.28 A

Documents

Bedieningshandleiding

EG-conformiteitsverklaring

Inbouwverklaring

Tekeningen op schaal

Technische tekening (.dwg file)

Technische tekening (.dxf file)

3D-model (.step file)

Brochure Ruck Etamaster

Ruck ® 136417 - Call to Tender

Ruck ® 136417 - Declaration of Incorporation

Commissioning report EM EC

Ruck ® 136417 - EC Declaration of Conformity
