Brand: Econox
With ventilation valve
EI 60S (ve, i-o), EN 15650
EN 1366-2, EN 13501-3

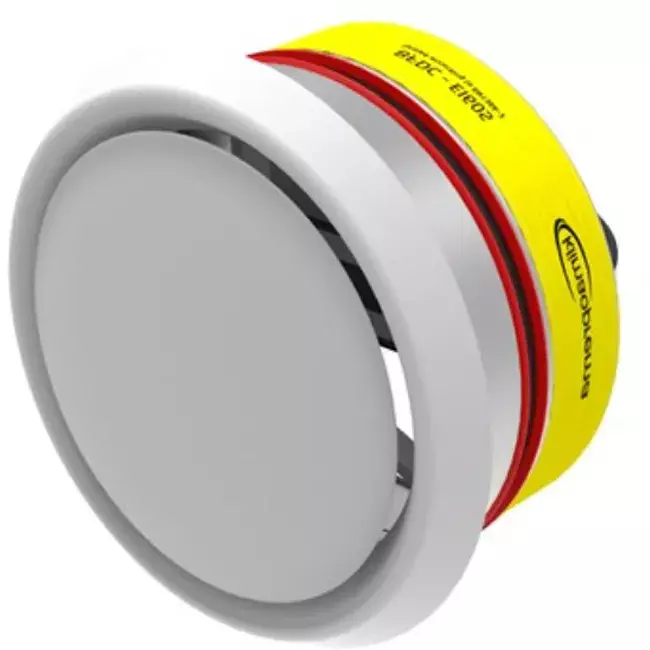

Fire-resistant Butterfly Valve E-BFDC V EI60S D100 with Ventilation Valve

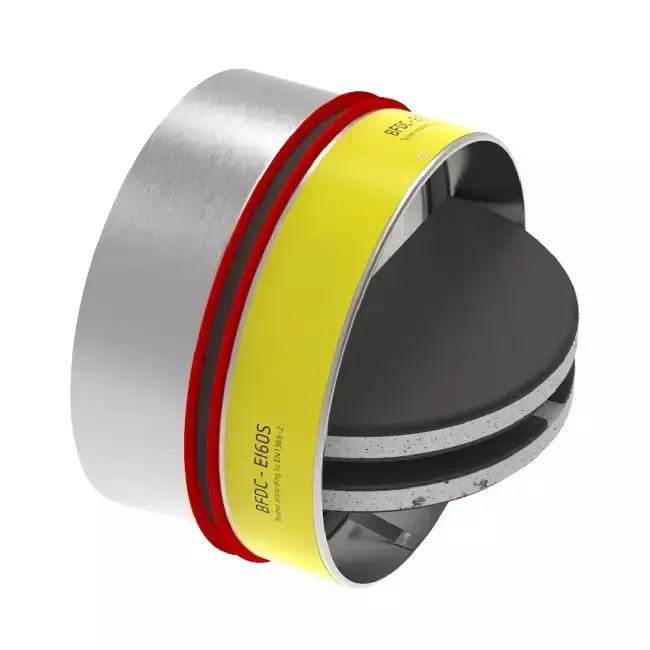

The E-BFDC V EI60S D100 is a circular fire resistant butterfly damper, equipped with two semi-circular damper blades and suitable for mounting with an exhaust valve. The valve has a fire resistance of 60 minutes and is 2-sided classified (o<->i) according to EN 15650, EN 1366-2 and EN 13501-3. The butterfly valve is equipped with a thermal fuse (fusible link) of 72°C and is designed for easy installation without additional fastening thanks to the rubber seal. The element comes with a longer housing suitable for mounting an exhaust valve.

Benefits of the E-BFDC V EI60S D100 Fireproof Butterfly Valve with Exhaust Valve

Suitable for mounting with an exhaust valve, including longer housing
Easy installation: The valve can be inserted directly into the spirochannel without additional fixing.
Rubber seal: Ensures airtight and secure mounting
Fire resistance: 60 minutes fire resistance
Heat-resistant damper blades: The damper blades have a thickness of 6 mm and are designed for optimum safety

Available versions

The E-BFDC V EI60S D100 butterfly valves are available with different fire resistance classes and accessories, such as limit switches and additional housings for ventilation valves. The valves are available from a diameter of 80 mm to 200 mm

Why choose the E-BFDC V EI60S D100 Fireproof Butterfly Valve with Ventilation Valve?

The E-BFDC V EI60S D100 offers an excellent solution for fire protection in ventilation systems. With easy installation without additional fasteners and the possibility of mounting an exhaust valve, this damper is versatile and efficient. The damper complies with stringent standards EN 15650, EN 1366-2 and EN 13501-3, ensuring reliable and safe application in fire-separating walls and floors.

Brand	Econox
Category	Fire damper round with ventilation valve EI60S
GTIN	8719544305237
Manufacturer's item number	E-BFDC-V-EI60S-d100
Article number	50301235

Specifications

Category code	42
Material	Steel
Surface protection	Other
Connection 1	Insert end
Connection 2	Insert end
Operation	Standard fuse
Built-on end switch in closed position	No
Built-on end switch in open position	No
Can be used on solid walls/floors	No
Can be used directly against walls/floors	No
Can be used in separating partitions	Yes
Can be used at a distance from walls	No
Length	115 mm
Nominal duct diameter	100 mm
Fire damper diameter	100 mm
Free passage	0.003 %
With inspection hatch	No
With square mounting stone	No
With round mounting stone	No
