Brand: Econox
With ventilation valve
EI 120S (ho, i-o), EN 15650
EN 1366-2, EN 13501-3

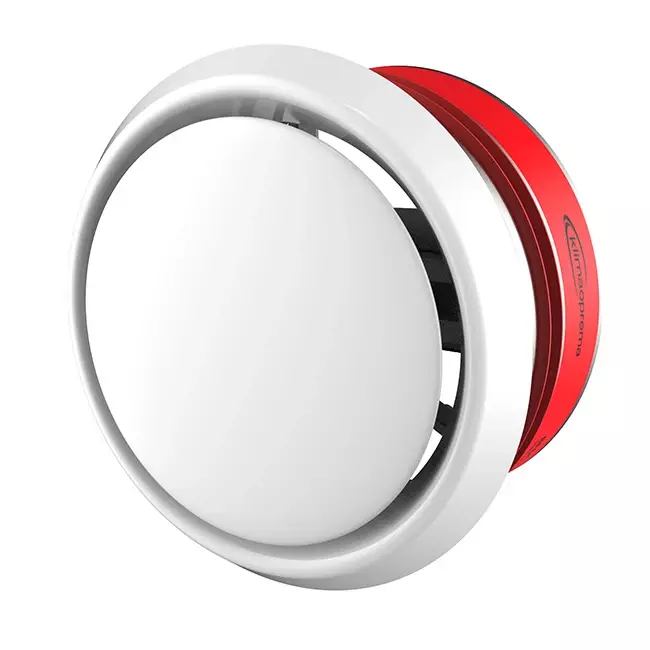

Fire-resistant Butterfly Valve E-BFDC V EI120S D100 with Ventilation Valve

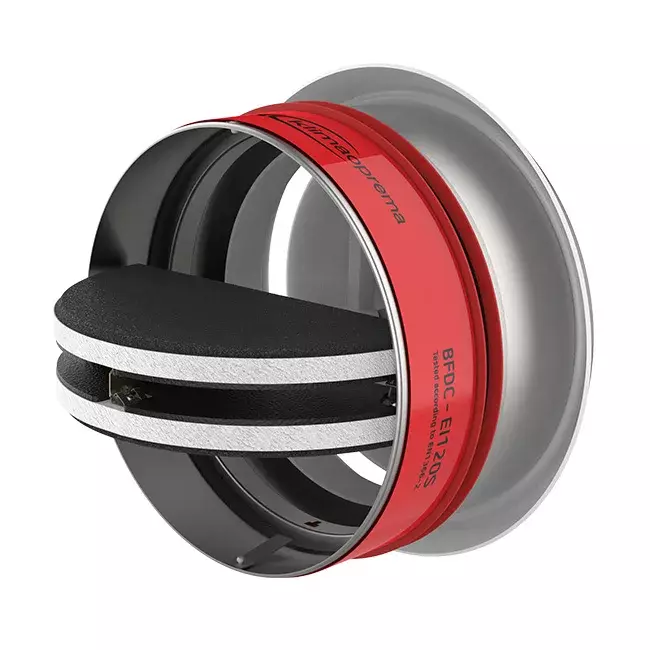

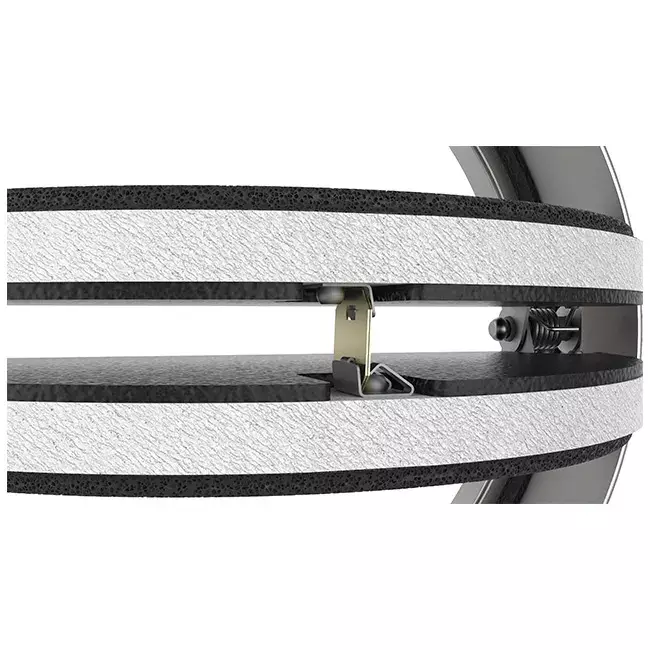

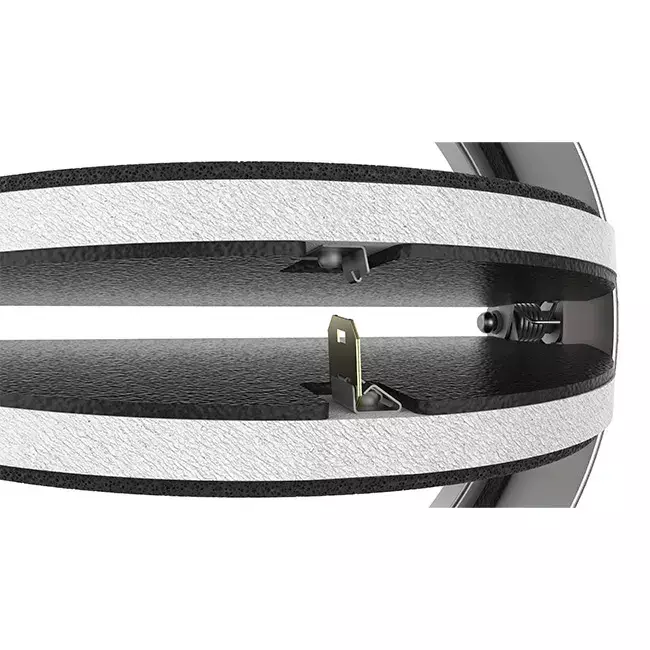

The E-BFDC V EI120S D100 is a circular fire resistant butterfly damper with a fire resistance of 120 minutes. The damper has two semi-circular damper blades and is suitable for mounting with an exhaust valve. The element is 2-sided classified (o<->i) according to EN 15650, EN 1366-2 and EN 13501-3. The thermal fuse (fusible link) has a melting temperature of 72°C. The valve can be easily inserted into the spiral pipe without further fastening, thanks to the rubber seal. The longer housing makes the valve suitable for use with an exhaust valve.

Benefits of the E-BFDC V EI120S D100 Fireproof Butterfly Valve with Exhaust Valve

Suitable for mounting with an exhaust valve, including longer housing
Easy installation: The valve can be inserted directly into the spirochannel without additional fixing.
Rubber seal: Ensures airtight and secure mounting
Fire resistance: 120 minutes fire resistance
Heat-resistant damper blades: The damper blade has a thickness of 6 mm and provides optimal heat protection

Available versions

The E-BFDC V EI120S D100 butterfly valves are available in various fire resistance classes and sizes from 80 mm to 200 mm

Why choose the E-BFDC V EI120S D100 Fireproof Butterfly Valve with Ventilation Valve?

The E-BFDC V EI120S D100 offers a reliable solution for fire protection in ventilation systems. With easy installation without additional fixing and the possibility of mounting an exhaust valve, this damper is versatile and efficient. With a fire resistance of 120 minutes and full compliance with the relevant European standards (EN 15650, EN 1366-2, EN 13501-3), the damper is suitable for various applications in fire separating walls and floors.

Brand	Econox
Category	Fire damper round with ventilation valve EI120S
GTIN	8719544305299
Manufacturer's item number	E-BFDC-V-EI120S-d100
Article number	50301241

Specifications

Category code	42
Material	Steel
Surface protection	Other
Connection 1	Insert end
Connection 2	Insert end
Operation	Standard fuse
Built-on end switch in closed position	No
Built-on end switch in open position	No
Can be used on solid walls/floors	No
Can be used directly against walls/floors	No
Can be used in separating partitions	Yes
Can be used at a distance from walls	No

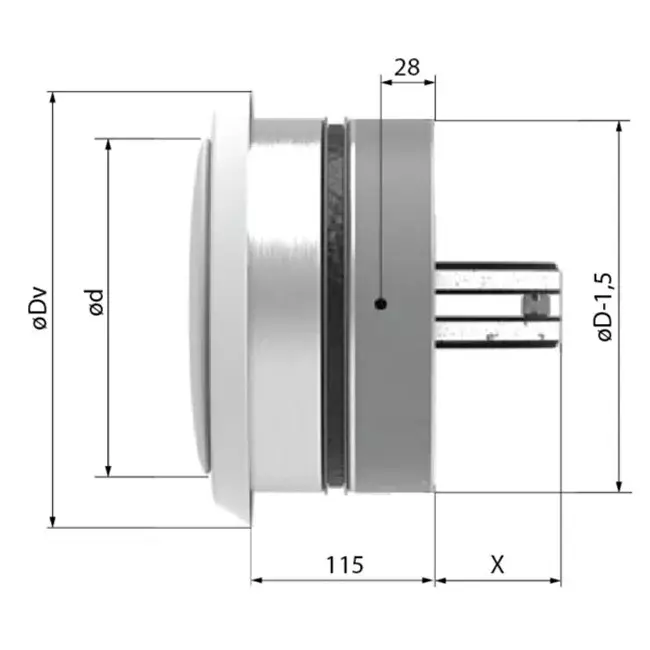

Length	115 mm
Nominal duct diameter	100 mm
Fire damper diameter	100 mm
Free passage	0.003 %
With inspection hatch	No
With square mounting stone	No
With round mounting stone	No
