Good points

Brand: Econox
Insulation between compartments
EI 60S (ve, i-o), EN 15650
EN 1366-2, EN 13501-3

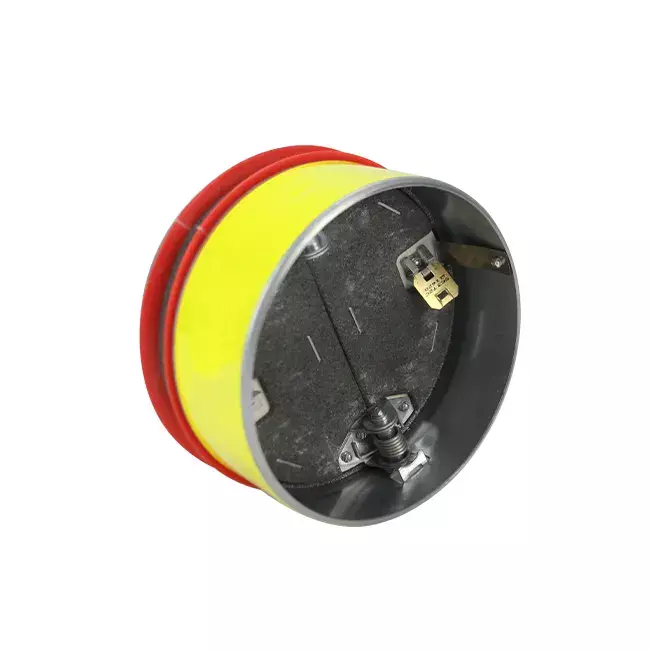

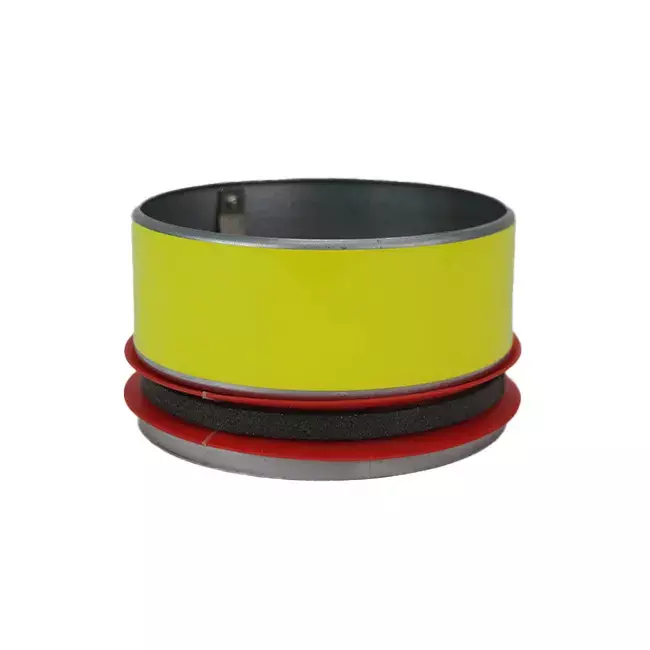

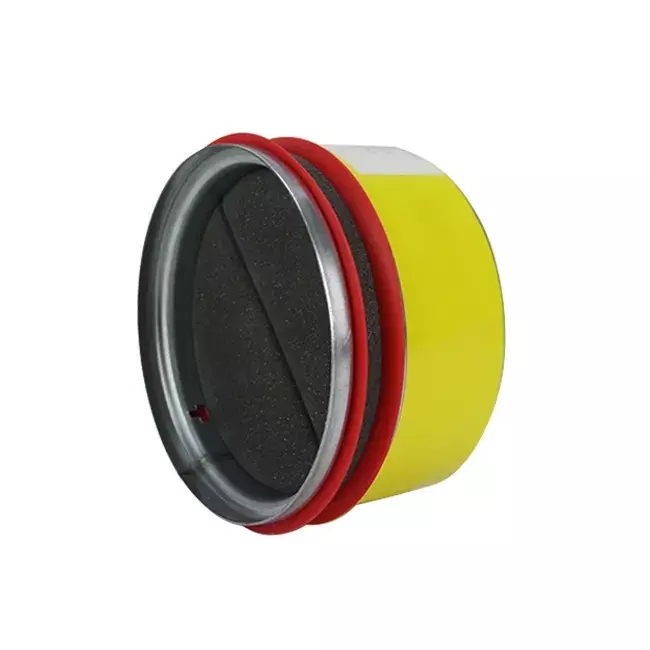

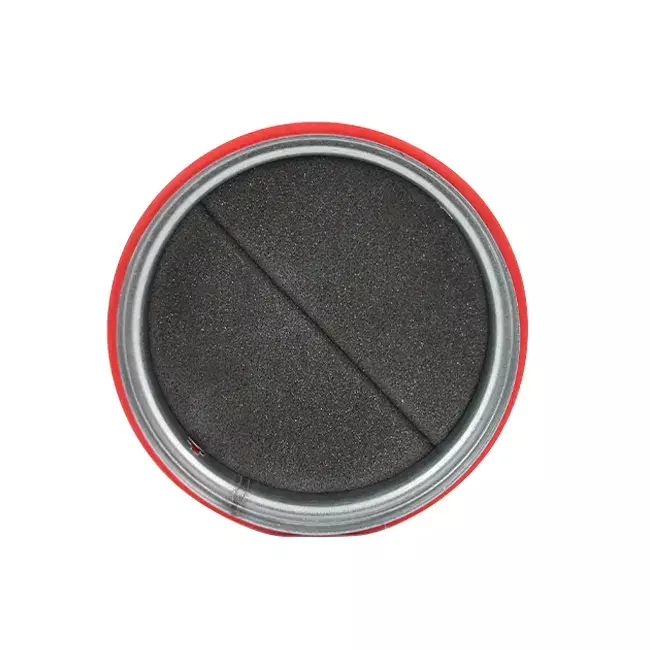

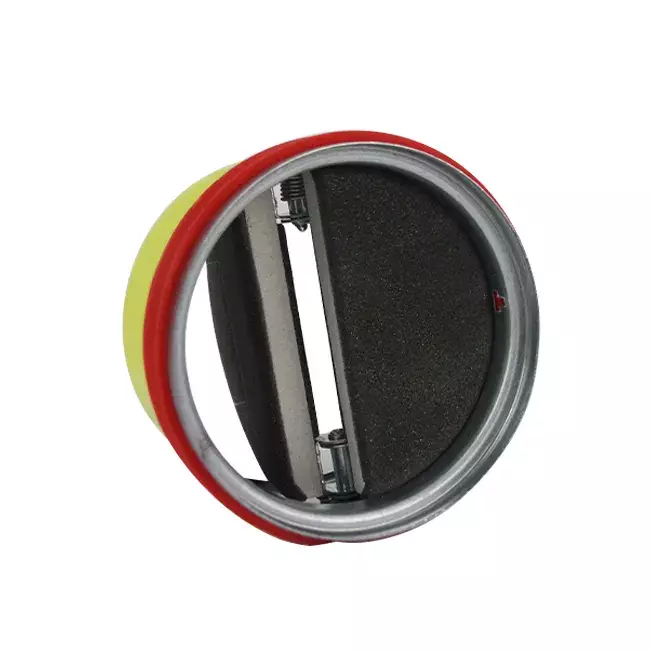

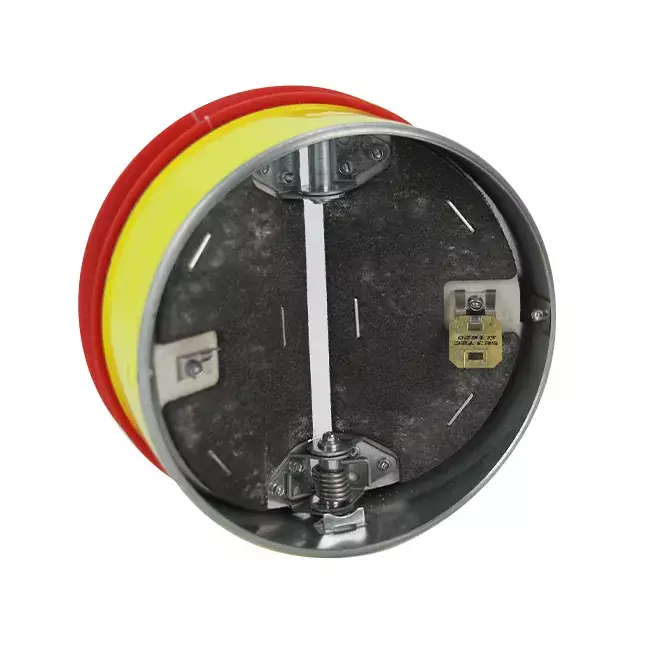

Fire resistant butterfly damper E-BFDC EI60S 100

The E-BFDC EI60S 100 is a circular fire resistant butterfly damper with a fire resistance of 60 minutes. This damper features two semi-circular damper blades and is suitable for installation in fire separating walls and floors. The damper is 2-sided classified (o<->i) according to EN 15650, EN 1366-2 and EN 13501-3, and equipped with a thermal fuse (fusible link) of 72°C. The compact design allows the valve to be easily slid into a spiral pipe, without additional fastening thanks to the rubber seal.

Benefits of the E-BFDC EI60S 100 Fireproof Butterfly Valve

Easy installation: The damper can be inserted directly into the spirochannel without further fixing
Rubber seal: Ensures airtight and secure mounting without additional materials.
Fire resistance: 60 minutes fire resistance

Available versions

The butterfly valves are available with different fire resistance classes and accessories, such as limit switches. There is also an option for a longer housing suitable for an exhaust valve. The valves are available from a diameter of 80 mm to 200 mm

Why choose the E-BFDC EI60S 100 Fireproof Butterfly Valve?

The E-BFDC EI60S 100 is an efficient solution for fire protection in ventilation systems. Thanks to its easy installation without additional fixing, heat-resistant design, and compliance with all relevant safety standards, this damper provides long-term protection against fire. The damper is suitable for applications in fire separating walls and floors and complies with standards EN 15650, EN 1366-2 and EN 13501-3.

Brand	Econox
Category	Fire damper circular EI60S
GTIN	8719544305091
Manufacturer's item number	E-BFDC-EI60S 100
Article number	50301221

Specifications

Category code	42
Material	Steel
Surface protection	Other
Connection 1	Insert end
Connection 2	Insert end
Operation	Standard fuse
Built-on end switch in closed position	No
Built-on end switch in open position	No
Can be used on solid walls/floors	No
Can be used directly against walls/floors	No
Can be used in separating partitions	Yes
Can be used at a distance from walls	No
Length	66 mm
Nominal duct diameter	100 mm
Fire damper diameter	100 mm
Free passage	0.003 %
With inspection hatch	No
With square mounting stone	No
With round mounting stone	No
