Ergovent plasterable frameless linear grille 1000 mm with 75 mm connection diameter - standard

Ergovent plasterable frameless linear grille 1000 mm with 75 mm connection diameter - standard

The Ergovent plasterable frameless linear grille of 1000 mm is a linear ventilation grille specially developed for installation in plasterboard ceilings and walls. The Lineo Pro Single creates a minimalist, subtle slot in the surface, making it barely noticeable and seamlessly integrated into the interior design. The ventilation grille is designed for flexible plastic duct systems with a connection diameter of 75 or 90 mm.

Installation of the ventilation grille

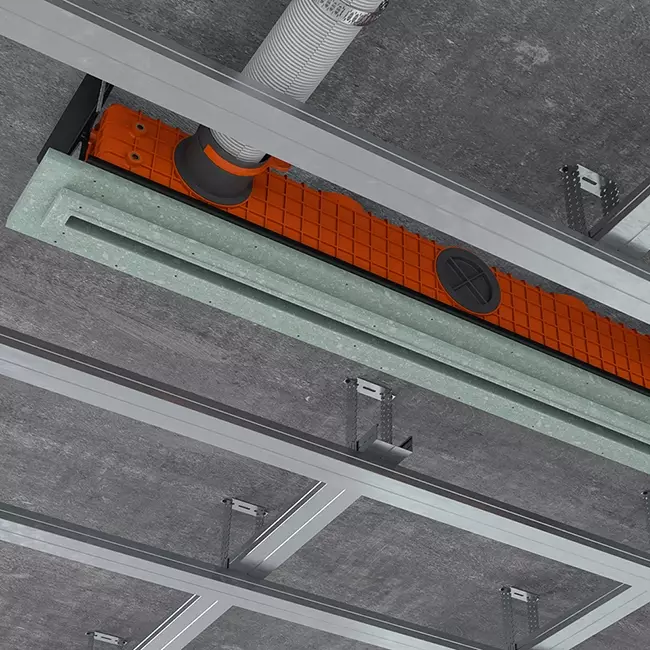

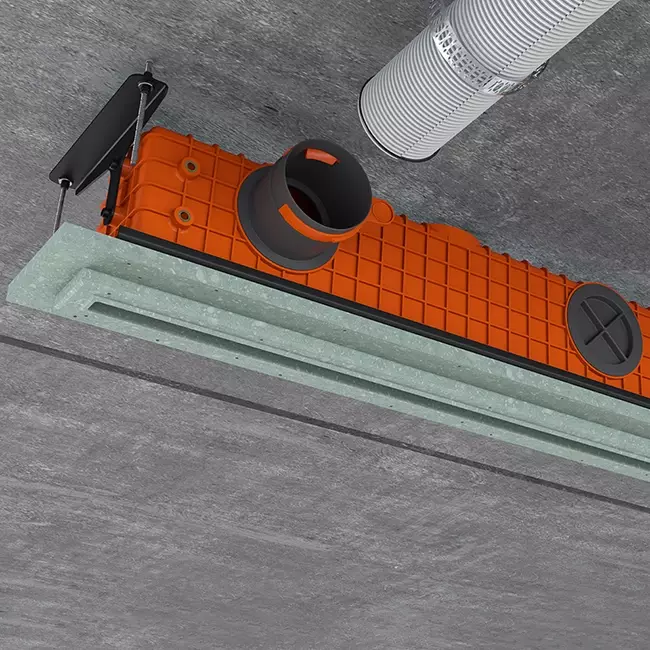

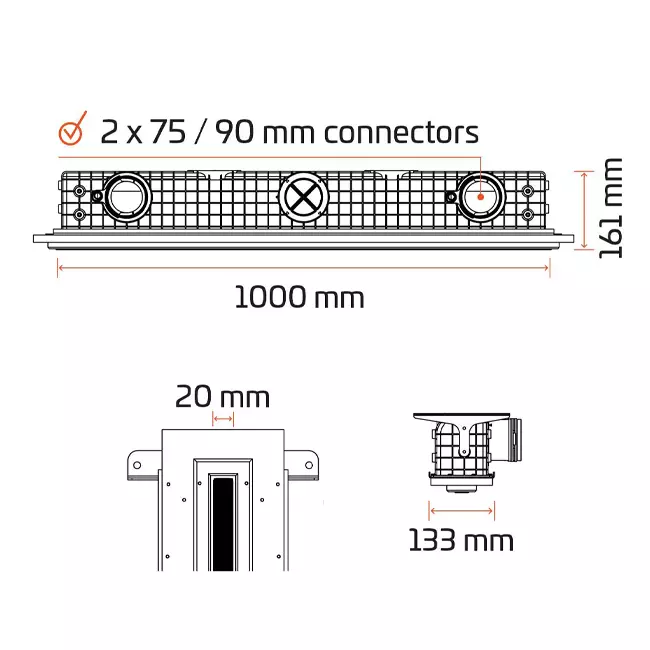

The Lineo Pro Single is mounted directly to the concrete ceiling before the plasterboard frame is installed. For proper adhesion, it is important to first remove dust from the surface and any joints. To prevent cracks in the finish, it is recommended to apply a thin layer of fiberglass mesh over the visible surface of the grille. Afterwards, a primer can be applied to the areas that will be filled. Once the surface has been treated, the grille is installed and the duct system is connected, the entire unit is finished and painted in the same color as the ceiling for a clean, seamless look. The Lineo Pro Single has a fixed length of 1000 mm, is suitable for a single air supply or extraction from the ventilation system, and cannot be coupled. Duct connections or covers are mounted on the rear at a 45-degree angle.

Standard, profile or modular?

• Lineo Pro Single (standard): Standalone model for a single, independent connection to a flexible ventilation duct, to be mounted directly to the concrete ceiling before installing the plaster ceiling.
• Lineo Pro Profile (profile): Standalone model for a single, independent connection to a flexible ventilation duct, which can be placed directly on the plasterboard frame for faster installation.
• Lineo Pro Puzzle (modular): Modular model for connecting with other plasterable linear grilles or corner pieces, which can be mounted directly on the plasterboard frame for faster installation.

Control

The Lineo Pro Single includes a standard integrated air control valve on the back. After installation, it can easily be adjusted using an Allen key, allowing the air volume per room to be precisely regulated—without the need for separate vents. The valve is suitable for both air supply and extraction, making the grille compatible with mechanical ventilation systems.
