Good points

Luxury design look
Fully plasterable
For supply and extract air
Connection diameter 100 mm

Ergovent frameless ventilation valve round 100 mm

The frameless ventilation valve can be integrated very tightly into the ceiling or wall, and should be plastered in for a seamless finish, so that it fits into almost any room and any interior style. It is a fairly new concept that fits in with people's desire for subtle, unobtrusive ventilation valves.

Please note:

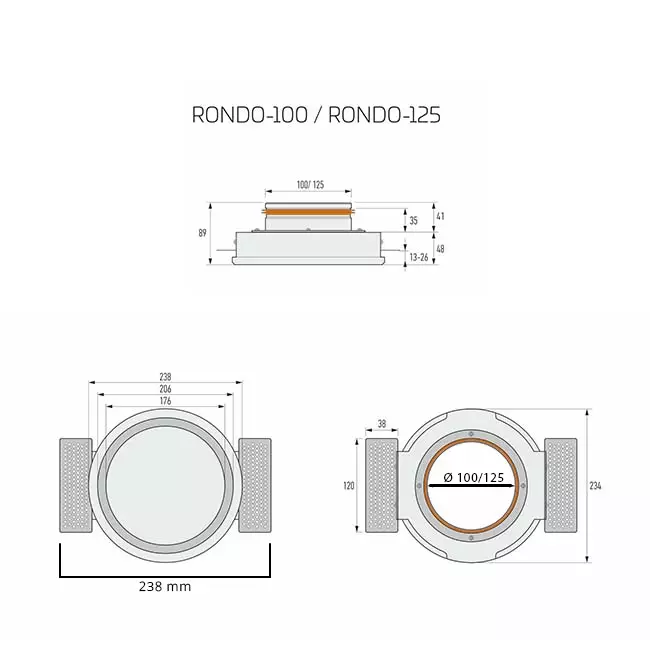

The connection diameter is 100 mm, the total width is 238 mm.
Image 3: shows a damping ring, not a motor!
Plasterable valves must be plastered in place.

Key features

High quality plaster composite
Very tight finish (frameless ventilation valve must be plastered)
Paintable
Suitable for supply and extract air
Air volume damper included

Sleek design

This valve distinguishes itself from other valves by its end result. The product is fully integrated into the ceiling or wall and should be plastered in for a seamless finish. It is paintable, ensuring that after installation only a subtle slot remains visible in the ceiling or wall. In combination with the unique way of holding the middle cap in place with magnets instead of screws, no screw holes are even visible after installation.

Mounting

The valve is very easy to install by means of the supplied adjustable fasteners. This allows them to be adjusted and mounted with the self-tapping screws in the top of the plasterboard ceiling or wall. After installation, the valve should be plastered in for a sleek and seamless finish. The diffuser can be connected directly to a metal duct, via a flexible duct or to a connection box and is suitable for both supply and exhaust air.

Brand	Ergovent
Category	All ventilation valves
GTIN	4779051540112
Manufacturer's item number	RONDO100
Article number	19825500

Specifications

Category code	198
Material	Other
Without plenum	Yes
Nominal duct diameter, connection (min)	100 mm
Nominal duct diameter, connection (max)	100 mm
Modular ceiling	None
Connection	Insert end
Front diameter	238 mm
Front width	238 mm
Built-in height	89 mm
With volume control	Yes
With measuring nipples	No
With mounting bracket	Yes
Air pattern, adjustable	No
