Good points

400m³/h
Quietest C system
Central extraction

DucoBox Silent Connect 400 m³/h - plug type G

The DucoBox Silent Connect is an extraction fan that provides central extraction within Mechanical Ventilation - System C units. The unit can be used up to 400 m3/h at 150Pa for demand controlled domestic applications with an easy programming.

This very quiet, compact, durable and extremely energy-efficient extractor fan removes moist and/or polluted air when needed and in the right quantity. Simple design and an efficient DC motor ensure long service life.

DucoBox, with a minimum sound power of 57.5 dB(A) at intake and 46.5 dB(A) at radiation from the cabinet, is the quietest in Europe and works whisper-quietly thanks to the double wall, in combination with an acoustic base plate. In addition, the Silent Plus package provides additional acoustic damping of up to 3 dB! DucoBox has 1 discharge and 7 suction connections as standard (diameter 125 mm).

All communication is completely wireless. The network can be set up quickly & easily thanks to the in-house developed communication protocol. With this unit, you can also combine the unit with box sensors (internal plug-in sensors in the box itself) or room sensors, both based on CO2 and/or moisture measurements.

Important features:

Up to 400m3/h at 150Pa
Wall or ceiling mounting
Tested according to NBN EN 308
f_reduction between 1 – 0.85 and reaches up to 0.38 with Duco Silent Tronic System
1 discharge and 7 suction points (dia 125mm)
Extremely quiet, carefree sleep, < 27 dB(A) in living areas
With night boost function
RF and wired communication, expandable with optional Duco Connectivity Board for REST API (local or cloud) and Modbus TCP (local), both via Ethernet / WiFi
Optional CO2 &/ humidity room type RF sensor (max 25 pcs)
Optional CO2 &/ humidity room type Wired sensor (max 99 pcs)
Optional box sensors (max 2 pcs from different sensors, it is not possible to have 2 CO2 sensors but it is possible to have 1 CO2 + 1 humidity box sensors )
Optional controller and switch contacts

A closer look into freduction:

With the standard DucoBox Silent Connect, it is possible to reach up to 0.85 freduction heat with the correct configuration.

With the correct configuration of DucoBox Silent Tronic System, it is possible to decrease freduction heat up to 0.38.

Please find different configurations of DucoBox Silent Connect and Silent Tronic System in the "DucoBox Silent Connect brochure" via “Downloads” part of this page.

Note: It is necessary to combine this product with a sensor or controller. You may find controller and sensor options in accessory part of this page.

Brand	Duco
Category	All mechanical ventilation systems
GTIN	5425037151627
Manufacturer's item number	0000-4808
Article number	19140159

Specifications

Bundle type	Ventilation box
Category code	78
Max. air volume at 100 Pa	450 m³/h
Max. air volume at 150 Pa	400 m³/h
Max. air volume at 200 Pa	368 m³/h
Max. air volume at 250 Pa	325 m³/h
Max. air volume at 300 Pa	275 m³/h
Type of motor	Electronically commutated (EC)
Electrical connection	Other
Energy efficiency class	B
Type of speed control	Other
With wireless remote control	No
Suitable for wireless remote control	Yes
With wired control unit	No
Suitable for wired control unit	Yes
Suitable for requirement-controlled ventilation	Yes
With internal humidity (RH) sensor	No
With external humidity (RH) sensor	No
Suitable for (extra) humidity (RH) sensor	Yes
With internal carbon dioxide (CO2) sensor	No
With external carbon dioxide (CO2) sensor	No
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
With pressure sensor	No
Suitable for (extra) pressure sensor	No
With zone controller	No
Suitable for zone controller	No
Operation by app	Yes
With movement sensor	No
Suitable for movement sensor	No
Number of suction connections	7
Connection	Duct end
Suitable for wall mounting	Yes
Suitable for ceiling mounting	Yes
Suitable for floor mounting	Yes
Suitable for suspended mounting	No
Horizontal mounting	Yes
Vertical mounting	Yes
Rear connection	Yes

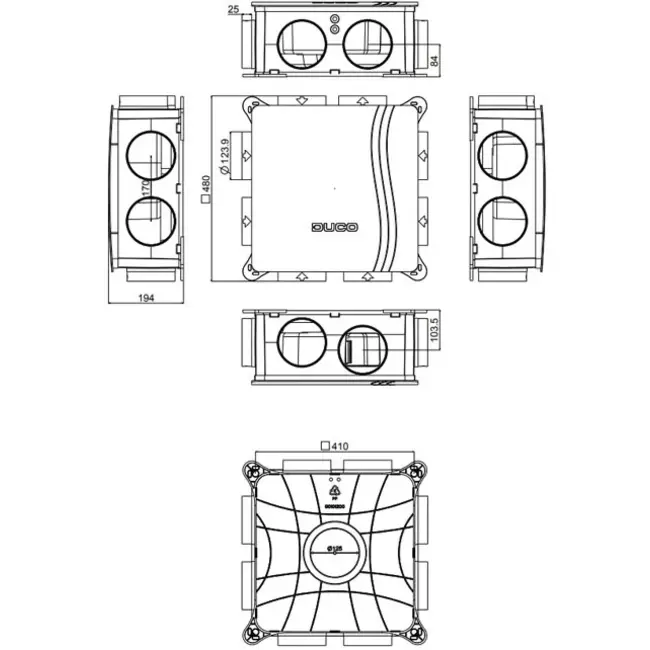

Height	480 mm
Width	480 mm
Energy label	B
Plug type	Type G
Depth	194 mm
Housing material	Plastic
