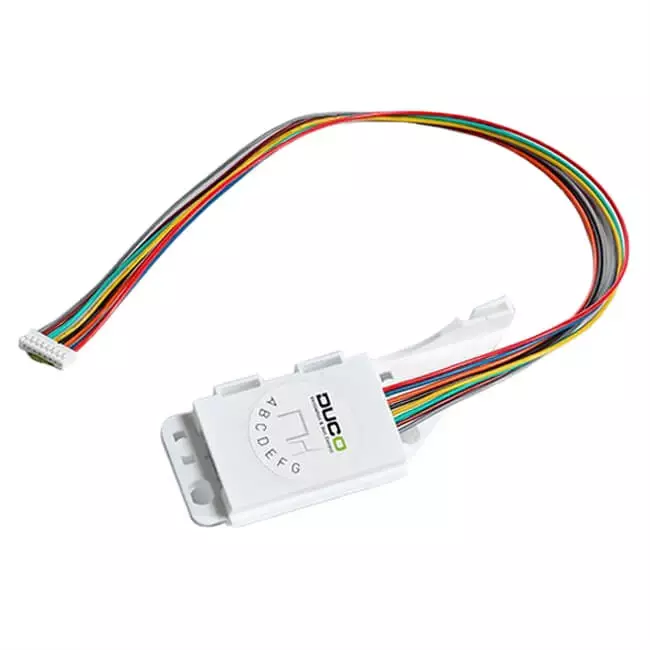

The Duco CO2 box sensor is suitable for the DucoBox Silent.
A maximum of 1 CO2 and 1 Humidity box sensor can be placed in a DucoBox Silent.
If the living space (CO2 measurement and bathroom (moisture measurement) are on the same channel/zone, then both box sensors can be clicked on each other.
As soon as the sensor is activated, the ventilation system will extract harder.
| Brand | Duco |
| Category | Duco Controls |
| GTIN | 5425037150576 |
| Manufacturer's item number | 0000-4216 |
| Article number | 19140023 |
| Category code | 113 |
| Scope of application | Duct |
| With mounting material | No |
| Suitable for wall mounting | No |
| Suitable for ceiling mounting | No |
| Suitable for duct mounting | Yes |
| Suitable for tube mounting | No |
| Suitable for air | Yes |
| Suitable for liquids | No |
| Suitable for gases | No |
| With housing | Yes |
| Cover attachment | Snapped on |
| Sensor element inside housing | Yes |
| Sensor element outside housing | No |
| Fixed cable to sensor | Yes |
| Cable length | 0.3 m |
| Sensor length | 56 mm |
| Insert length | 56 mm |
| Material element | Other |
| Technology | NDIR |
| Active temperature measurement | Yes |
| Passive temperature measurement | No |
| Average temperature measuring | Yes |
| Number of measuring points | 1 |
| Measurement of CO2 | Yes |
| Measurement of VOC | No |
| Measurement of relative air humidity | No |
| Measurement of absolute air humidity | No |
| Enthalpy measurement | No |
| Measurement of dewpoint | No |
| Particulate matter measurement (PM) | No |
| CO2 measuring range (min) | 300 ppm |
| CO2 measuring range (max) | 2000 ppm |
| Temperature measuring range (min) | -40 °C |
| Temperature measuring range (max) | 125 °C |
| Offset setting possible | No |
| Trend representation | No |
| Error registration possible | No |
| Sensor type | Other |
| Potentiometer with adjustment knob | No |
| Supporting protocol for BACnet | No |
| Supporting protocol for Modbus | Yes |
| Supporting protocol for MP (multi point) | No |
| Supporting protocol for KNX | No |
| LoRa technology | No |
| NFC (Near Field Communication) | No |
| Bluetooth | No |
| Wi-Fi-compatible | No |
| Standby push button | No |
| Wireless | No |
| With display | No |
| Type of power supply | Power cord |
| Type of electric connection | Other |
| With reverse polarity protection | Yes |
| Max. ambient humidity (non-condensing) | 100 % |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Housing height | 115 mm |
| Housing width | 43 mm |
| Housing depth | 36 mm |
| Housing colour | White |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| IFTTT support available | No |
| Suitable for | Ducobox Silent, Ducobox Silent Connect |
Item number: 19140015
