Good points

275 m³/h
MVHR unit for small spaces
Ceiling and wall mounting

DucoBox Energy SKY D275 - plug type G

The DucoBox Energy SKY D275 is an energy-efficient ventilation unit with heat recovery (HRV unit) and a maximum airflow rate of 275 m³/h. This HRV unit is specifically designed for applications in compact spaces such as technical niches or lowered ceilings, typically found in apartment buildings. Thanks to its limited height of just 30 cm and lightweight design, both ceiling and wall mounting are easily achievable. The DucoBox Energy SKY combines smart technology with ease of installation and fits perfectly within the Duco Energy Family (system D).

Specifications

The ventilation unit is equipped with an efficient EC motor and supports features such as automatic balancing, 2-zone control via external dampers, a copy function for settings, and a convenient head-up display. The housing is made from durable expanded polypropylene (EPP), with a plastic cross-flow heat exchanger for optimal heat recovery.

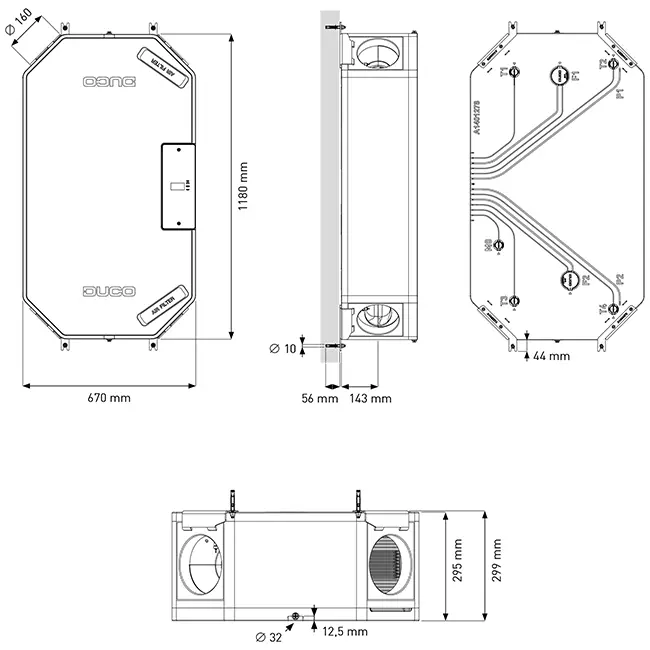

Dimensions: 1180 mm high, 670 mm wide, and 295 mm deep. Weight: lightweight and suitable for ceiling mounting. Connections are located at the top (residential side and outdoor air side: duct end). The unit is equipped with ISO Coarse filters with an efficiency of 65% on both the supply and exhaust sides.

Application

The DucoBox Energy SKY D275 is ideal for modern apartments or homes where limited installation space is available. The unit supports communication via Modbus TCP and can be connected to home automation systems via the optional Duco Connectivity Board. Operation is possible via Wi-Fi (in combination with the Duco Installation App) or external wireless control. The unit is prepared for external CO₂ and humidity sensors and supports zone control. Not suitable for floor mounting or connection to central heating boilers.

A look into the f_reduction :

With the DucoBox Energy SKY D275, it is possible to achieve up to 0.56 f_{reduction heat} with the correct configuration.

With the optional multi-zone damper and the correct sensor configuration of the DucoBox Energy SKY D275, it is possible to reduce f_{reduction heat} to 0.45.

Find various configurations of the DucoBox Energy SKY D275 via ""Downloads"" DucoBox Energy SKY D275 -nl Plus brochure part of this page.

Optional compact external 2-zone (multi-zone damper):

With external 2-zone control, the home is divided into a day and night zone. The zone control operates based on CO2 and humidity, ventilating only where and when needed and in the right amount. Zone ventilation results in maximum energy savings and increased acoustic and thermal comfort.

Discover the 4 benefits of the multi-zone damper:

Compact installation
The multi-zone dampers are placed in the supply ducts (D125 or D160) and require only 78 mm of free space. They can be used anywhere in the duct system. The installer can make their own choice based on ease of installation, accessibility, etc.
Energy savings
With zone ventilation, we do not ventilate the entire house, but only the zones where people are active. Therefore, our systems need to work less hard, resulting in a significantly lower energy consumption (40%) of the ventilation unit and the heating system.
Quieter operation
The reduced rotation of the motor results in significantly quieter operation (30%).
Greater thermal comfort
Thanks to the unique principle of setting the comfort temperature, you can determine the temperature per zone, for example, 21.5° for the day zone and 18° for the night zone. This results in significantly increased thermal comfort.

Brand	Duco
Category	All MVHR units
GTIN	5425037159753
Manufacturer's item number	0000-4940
Article number	19140142

Specifications

Category code	93
Height	1180 mm
Depth	295 mm
Nominal duct diameter (min)	160 mm
Nominal duct diameter (max)	160 mm
Housing material	Plastic
Heat recovery by	Cross-counter-flow unit
Suitable for ceiling mounting	Yes
Suitable for wall mounting	Yes
Material heat exchanger	Plastic
Housing material quality	Expanded polypropylene (EPP)
Suitable for floor mounting	No
Left/right orientation reversible	Yes
Max. air volume at 100 Pa	110 m³/h
Sound pressure level	37 dB(A)
Max. air volume at 200 Pa	220 m³/h
Max. volume flow according to 1254/2014/EU	275 m³/h
Electrical connection	Connecting cable with plug with protective contact
Type of motor	DC
With zone controller	Yes
With wireless remote control	No
With heating element	No
Frequency	50 Hz
With wired control unit	Yes
Supporting protocol for Modbus	Yes
Type of switch	Push button
Connections residential side	Insert end
Suitable for central heating boiler connection	No
Type of frost protection	Frost protection valve
With constant pressure control	Yes
Roof connection, top	Yes
Residential connection, top	No
With internal humidity (RH) sensor	Yes
Efficiency supply filter according to ISO 16890-1:2016	65 %
Suitable for extra VOC sensor	Yes
Degree of protection (IP)	IP41
Efficiency exhaust filter according to ISO 16890-1:2016	65 %
Residential connection, left side	Yes
Suitable for mounting in suspended ceiling	Yes
Suitable for mounting in an attic	Yes
Max. air volume at 150 Pa	165 m³/h
Max. air volume at 50 Pa	55 m³/h
Sound power level according to 1254/2014/EU	50 dB(A)
Thermal efficiency at 70% air volume at 50 Pa	91 %
Max. air volume at 250 Pa	200 m³/h
Voltage	230 V
With digital display	Yes
Suitable for wired control unit	Yes
Number of phases	3

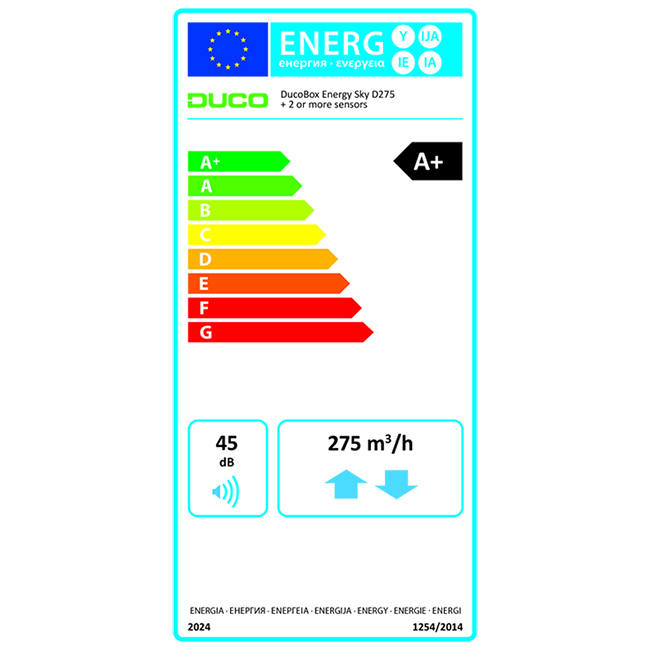

Energy efficiency class according to 1253/2014/EU	A+
With volatile organic compound (VOC) sensor	No
Operation by app	Yes
Suitable for zone controller	Yes
Suitable for wireless remote control	No
With constant volume flow control	No
With bypass	Yes
Residential connection, right side	Yes
Supply filter according to ISO 16890-1:2016	ISO Coarse
Connections outdoor air side	Insert end
With external humidity (RH) sensor	No
Exhaust filter according to ISO 16890-1:2016	ISO Coarse
With internal carbon dioxide (CO2) sensor	Yes
Roof connection, side	No
Residential connection, underside	No
Weight	19 kg
Fuse size of the device	1.2 A
Suitable for (extra) humidity (RH) sensor	Yes
Suitable for (extra) carbon dioxide (CO2) sensor	Yes
With thermal overload protection	Yes
Power consumption at max. air volume at 100 Pa	61 W
Power electric heating element (min)	41 W
Power electric heating element (max)	130 W
Max. number of wet zones	4
Plug type	Type G
Connection type	connection left right
With enthalpy exchanger	No
Width	670 mm
