RRP 19.86
15.89
-20%
-
In stock
- The largest collection in the United Kingdom
- 100 day return period
- Customer review 9/10
- Safe shopping with Trustedshops
Pay safe and fast with:
Good points
- Brand: Duco
- Plastic
- D160 / D160 (M/M)
- 45° angle

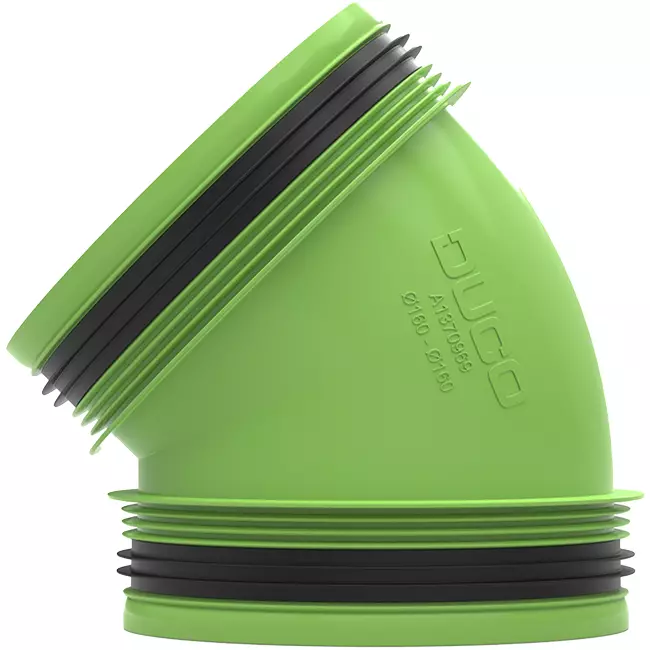

Duco Connector 45° with Rubber D160/D160 (M/M)
This connector with pre-assembled rubber seal ensures a quick and airtight connection between ducts or with a DucoBox. It offers an airtightness class up to D without the need for additional fastening materials.
Flexible and Customizable
Thanks to the 45° angle, flexible connections are possible, ideal for situations where ducts need to be connected at an angle. Perfectly combinable with the DucoBox Energy Sky.
Easy and Secure Installation
The rubber seal guarantees a firm and leak-free connection without the use of sealant or tape. A quick and reliable solution for both exhaust and supply.
| Brand | Duco |
| Category | Duco Energy accessoires |
| GTIN | 05425037159852 |
| Manufacturer's item number | 0000-4949 |
| Article number | 19140108 |
Specifications
| Category code | 113 |
| Connection 1 | Insert end |
| Connection 2 | Insert end |
| Nominal duct diameter | 160 mm |
| With pre-mounted seal | Yes |
| Air tightness class according to EN 1751 | D |
| Embeddable in concrete | No |
| Inner surface protection | Untreated |
| Material duct | Plastic |
| Material quality duct | Polypropylene (PP) |
| Wall thickness duct | 2 mm |
| Production method | Seamless |
| Outside colour | Green |
| Bend angle | 45 ° |
| Perforated inner wall | No |
| With push-on profile | Yes |
| Bend radius | 160 mm |
| Bend model | Smooth bend |
| With push-on clamp | No |
| With inspection opening | No |
