Good points
- Brand: Duco
- Plastic
- 180 mm to 2 x 160 mm
- For multi-zone valves

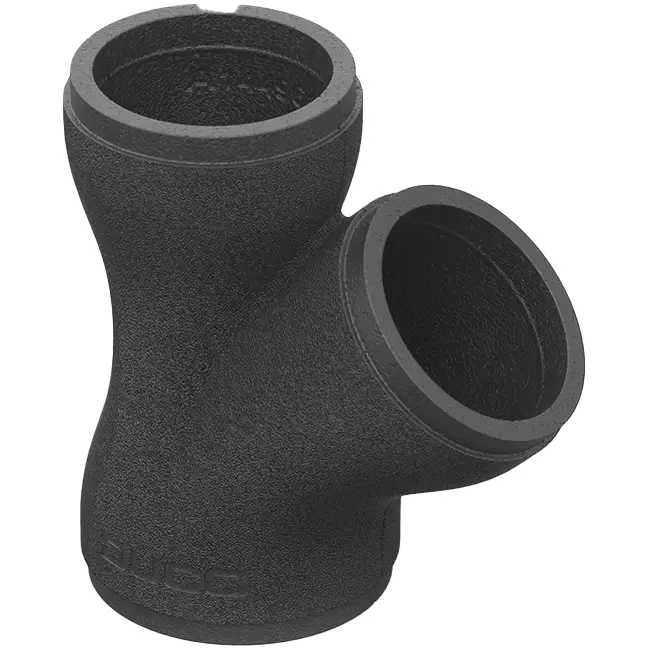

Duco duct piece 180 diameter 2x 160 diameter for multi-zone valves
The Duco duct piece is designed for quick installation of multi-zone valves on the DucoBox Energy Comfort (Plus) and DucoBox Energy Sky. Thanks to its smart design, the airflow is evenly distributed, which benefits the acoustics. With rubber connections, the duct piece can be easily and airtight mounted on any DUCO ventilation system. No additional materials needed. Save time = save money!
Specifications
Made from EPP, with dimensions of 365 x 380 x 220 mm and a weight of 260 g. Equipped with 1 connection ^180 (F) and 2 connections ^160 (F). Color: black.
Application
Compatible with the DucoBox Energy Comfort (Plus) and DucoBox Energy Sky. Ideal for systems with multi-zone valves.
| Brand | Duco |
| Category | Duco Energy accessoires |
| GTIN | 5404040700329 |
| Manufacturer's item number | 0000-4995 |
| Article number | 19140111 |
Specifications
| Category code | 113 |
| Material duct | Plastic |
| Wall thickness duct | 2 mm |
| Production method | Seamless |
| Material insulation | Expanded polypropylene (EPP) |
| Inner surface protection | Untreated |
| Perforated inner wall | No |
| Outside colour | Black |
| Design form | Other |
| Nominal duct diameter, connection 1 | 160 mm |
| Connection 1 | Insert end |
| Nominal duct diameter, connection 2 | 160 mm |
| Connection 2 | Insert end |
| Nominal duct diameter, connection 3 | 180 mm |
| Connection 3 | Insert end |
| With push-on profile | Yes |
| With push-on clamp | No |
| With pre-mounted seal | Yes |
| Eccentric | No |
| Angle | 45 ° |
| Insert length connection 1 | 220 mm |
| Insert length connection 2 | 220 mm |
| Air tightness class according to EN 1751 | None |
| Embeddable in concrete | No |
