The Belimo cable temperature sensor is designed for measuring air temperatures in HVAC systems, particularly in air ducts. Thanks to the integrated mounting flange, the sensor is immediately suitable for duct installation. The stainless steel probe, responsible for measuring the temperature, and the fixed connection cable ensure reliable readings, while the passive PT1000 element accurately converts the temperature into a resistance signal for control technology. Based on this measured temperature, the system is automatically regulated.
The cable temperature sensor is specifically designed for installation in air ducts and comes with a mounting flange for secure fixing. Proper positioning of the probe in the airflow ensures representative temperature measurement. Due to its passive design, no power supply is required. For longer cable lengths, cable resistance must be taken into account. The sensor is suitable for applications in commercial buildings and industrial ventilation systems where reliable duct temperature measurement is essential.

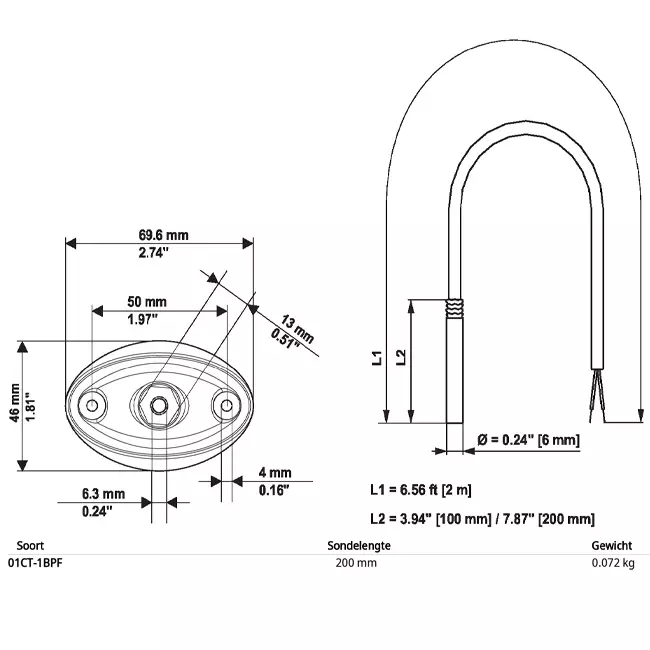

The sensor features a stainless steel probe measuring 200 mm in length and 6 mm in diameter, providing a measurement point deeper inside the air duct. The fixed, 2-core connecting cable of 2 metres allows direct and interference-free connection to the controller. The combination of probe length and mounting flange makes this model particularly suited for accurate measurements in air ducts.
| Brand | Belimo |
| Category | Sensors and controllers |
| GTIN | 7630498117374 |
| Manufacturer's item number | 01CT-1BPF |
| Article number | 23010033 |
| Category code | 101 |
| Suitable for ceiling mounting | No |
| Suitable for wall mounting | No |
| Degree of protection (IP) | IP67 |
| Compatible with Amazon Alexa | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| IFTTT support available | No |
| Insert length | 200 mm |
| Suitable for duct mounting | Yes |
| Scope of application | Immersion tube/duct |
| With mounting material | Yes |
| Suitable for air | Yes |
| Suitable for tube mounting | No |
| Suitable for liquids | No |
| With housing | No |
| Suitable for gases | Yes |
| Material element | Stainless steel |
| Active temperature measurement | No |
| Sensor element inside housing | No |
| Average temperature measuring | No |
| Fixed cable to sensor | Yes |
| Measurement of CO2 | No |
| Type of electric connection | Other |
| Max. ambient humidity (non-condensing) | 95 % |
| Enthalpy measurement | No |
| Measurement of relative air humidity | No |
| Sensor type | Pt1000 |
| Particulate matter measurement (PM) | No |
| Trend representation | No |
| Temperature measuring range (max) | 100 °C |
| Technology | Other |
| Number of measuring points | 1 |
| Measurement of absolute air humidity | No |
| Measurement of VOC | No |
| Measurement of dewpoint | No |
| Sensor element outside housing | Yes |
| Cable length | 2 m |
| Offset setting possible | No |
| Passive temperature measurement | Yes |
| Temperature measuring range (min) | -35 °C |
| Error registration possible | No |
| With reverse polarity protection | No |
| Type of power supply | None |
| Explosion-proof | No |
| Sensor length | 200 mm |
| Number of measuring ranges | 1 |
| Number of output signals | 1 |
| Ambient temperature (min) | -35 °C |
| Ambient temperature (max) | 100 °C |
| Diameter sensor element | 6 mm |
