Good points

For supply and removal
Anodized aluminum

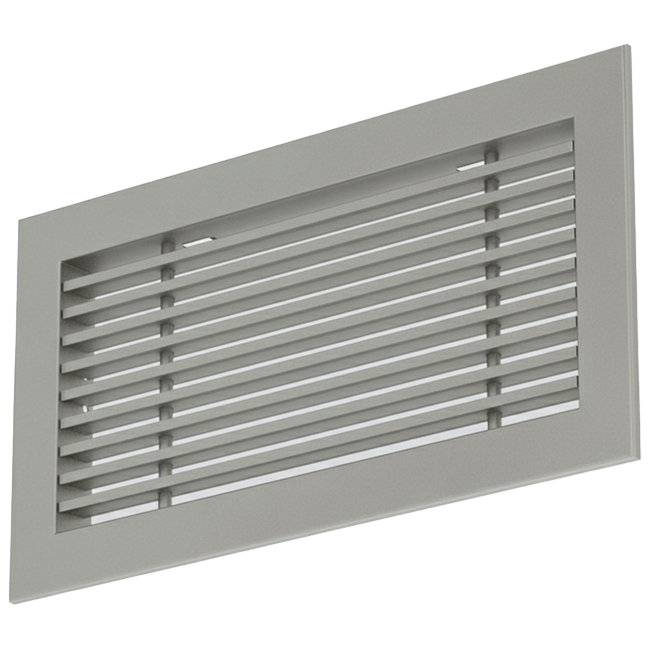

Aluminium Bar Grille – with Spring Clips – 600x150 mm – Anodised Aluminium

The Econox aluminium bar grille with horizontal blades is specially designed for air supply and extraction in commercial indoor spaces such as offices, restaurants, and retail stores, and is suitable for wall mounting.

Practical Information

The bar grille measures 600 mm in width and 150 mm in height. The mounting frame and blades are made from extruded aluminium, preventing deformation during installation.

Installation and Applications

The bar grille is supplied as standard with spring clips and a mounting frame, enabling installation within the wall. Using the spring clips, the grille can be easily snapped into the mounting frame before fitting it into the wall. Optionally, the bar grille can be combined with a plenum (only when using spring clips and without the mounting frame) to ensure uniform air distribution within the room.

Brand	Econox
Category	Bar grilles
GTIN	8719544329790
Manufacturer's item number	79000271
Article number	79000271

Specifications

Category code	59
Material	Aluminium
Surface protection	Other
Nominal duct width	600 mm
Nominal duct height	150 mm
Vertical fins	Yes
Double row of ribs	No
Front width	632 mm
Front height	182 mm
With built-in window	Yes
Colour	Aluminium
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	None
Ball-protected	No
Built-in depth	45 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
Dimensions	600x150 mm
RAL Color	Anodised aluminium
