Good points

For supply and removal
Extruded aluminum

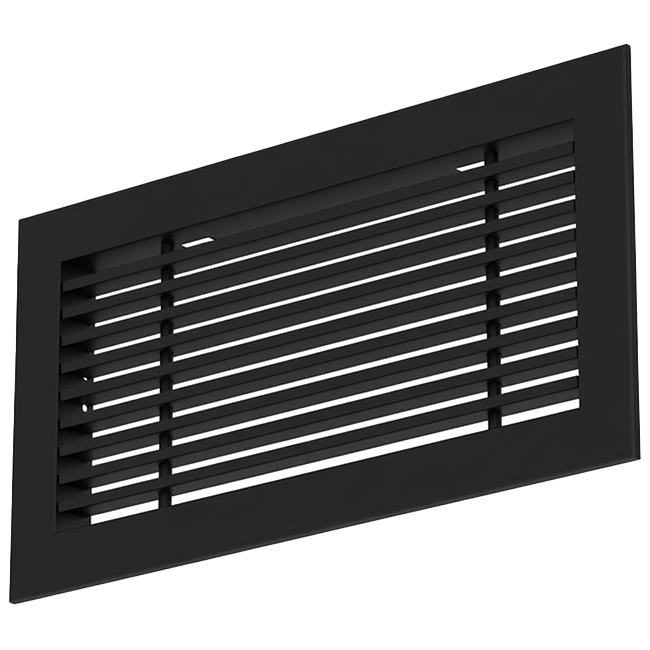

Aluminium Bar Grille – with Spring Clips – 600x150 mm – RAL 9005

The Econox aluminium bar grille with horizontal slats is specifically designed for supply and exhaust air in commercial indoor spaces such as offices, restaurants, and retail stores, and is suitable for wall mounting.

Practical Information

The bar grille measures 600 mm in width and 150 mm in height. Both the mounting frame and the slats are made from extruded aluminium, which prevents deformation during installation, and are subsequently powder-coated in RAL 9010, 9016 or 9005.

Installation and Applications

The bar grille is supplied as standard with spring clips and a mounting frame, allowing installation into the wall. Using the spring clips, the grille can be easily snapped into the mounting frame before being installed in the wall. The bar grille can optionally be combined with a plenum box (only when using spring clips and without the mounting frame) to ensure uniform air distribution within the room.

Brand	Econox
Category	Bar grilles
GTIN	8719544329677
Manufacturer's item number	79000259
Article number	79000259

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	600 mm
Nominal duct height	150 mm
Vertical fins	Yes
Double row of ribs	No
Front width	632 mm
Front height	182 mm
With built-in window	Yes
Colour	Black
RAL-number	9005
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	None
Ball-protected	No
Built-in depth	45 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
Dimensions	600x150 mm
RAL Color	RAL 9005
