Good points

For supply and removal
Extruded aluminum

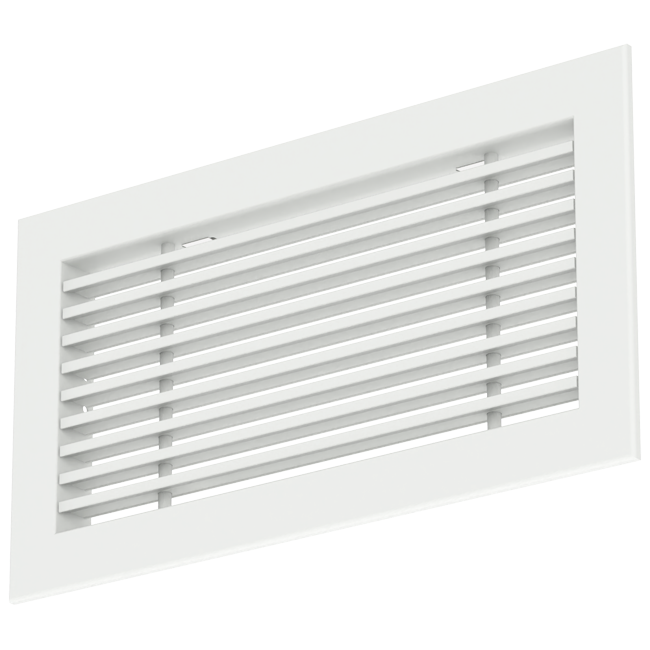

Aluminium Bar Grille – with Clamp Springs – 600x150 mm – RAL 9016

The Econox aluminium bar grille with horizontal slats is specifically designed for supply and exhaust air in commercial indoor spaces such as offices, restaurants, and shops, and is suitable for wall mounting.

Practical Information

The bar grille measures 600 mm in width and 150 mm in height. The mounting frame and slats are made from extruded aluminium, which prevents deformation during installation, and are subsequently powder coated in RAL 9010, 9016, or 9005.

Installation and Applications

The bar grille is supplied as standard with clamp springs and a mounting frame, allowing installation into the wall. Using the clamp springs, the grille can be easily clipped into the mounting frame before the entire assembly is installed into the wall. The bar grille can optionally be combined with a plenum (only when using clamp springs and without the mounting frame) to ensure even air distribution throughout the space.

Brand	Econox
Category	Bar grilles
GTIN	8719544329554
Manufacturer's item number	79000247
Article number	79000247

Specifications

Category code	59
Material	Aluminium
Surface protection	Lacquered
Nominal duct width	600 mm
Nominal duct height	150 mm
Vertical fins	Yes
Double row of ribs	No
Front width	632 mm
Front height	182 mm
With built-in window	Yes
Colour	White
RAL-number	9016
Air pattern, adjustable	Yes
Servomotor, adjustable	No
Thermostatically adjustable	No
Volume setting	None
Ball-protected	No
Built-in depth	45 mm
Mounting of internal parts/grille	Hidden clamp
Suitable for round air duct	No
Dimensions	600x150 mm
RAL Color	RAL 9016
